[求助] ansys热应力分析后看温度场与没做热分析时的温度场不同，急急急急急急

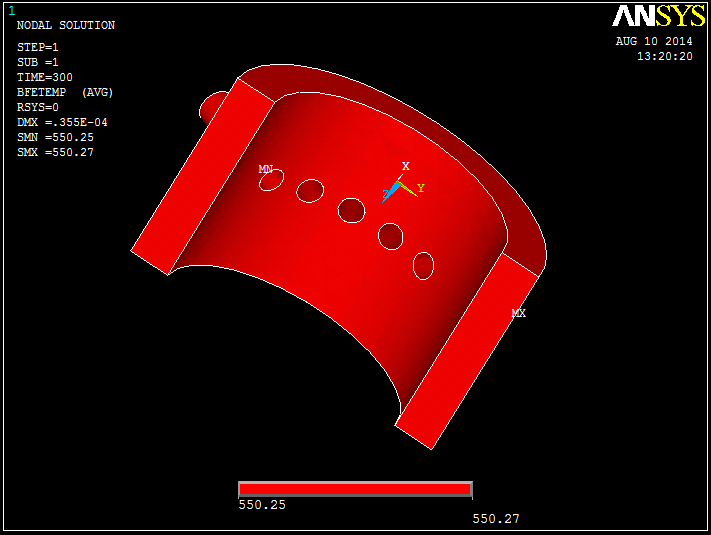

我在做一个热应力分析的模拟，最开始使用的是solid90单元，得出温度场，再间接耦合得到应力场，但是在应力场的计算结果中看body temperature和之前得到的温度场温度不同，应力场的计算结果也不满意。急急急急急~

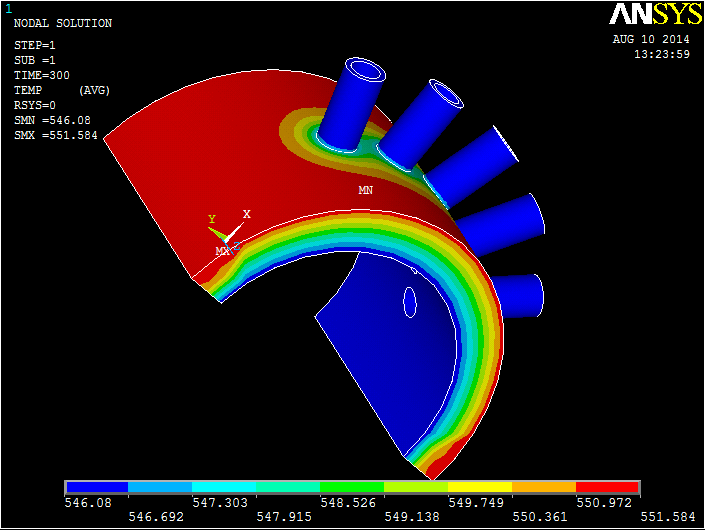

温度场命令流如下
RESUME,'mesh-3','db','D:\Users\xubu\ANSYS\',0,0
/COM,ANSYS RELEASE 13.0 UP20101012    21:45:08 08/09/2014
/DIST,1,1.08222638492,1
/REP,FAST
/DIST,1,0.924021086472,1
/REP,FAST
/DIST,1,0.924021086472,1
/REP,FAST
*DIM,tb,TABLE,5,1,1, , ,
!*
*SET,TB(0,1,1) , 0
*SET,TB(1,0,1) , 0
*SET,TB(1,1,1) , 555
*SET,TB(2,0,1) , 3600
*SET,TB(2,1,1) , 448
*SET,TB(3,0,1) , 7200
*SET,TB(3,1,1) , 358
*SET,TB(4,0,1) , 10800
*SET,TB(4,1,1) , 338
*SET,TB(5,0,1) , 14400
*SET,TB(5,1,1) , 327
/VIEW,  1,  0.779538803756 , -0.109218375297 , -0.616758137309
/ANG, 1,  -119.780330768
/REPLO
/REPLO
/REPLO
/REPLO
/REPLO
/VIEW,  1,  0.754740139931 , -0.104582673238 , -0.647633990488
/ANG, 1,  -120.040813132
/REPLO
/REPLO
/REPLO
/REPLO
/REPLO
/REPLO
/REPLO
/REPLO
/REPLO
/REPLO
/VIEW,  1,  0.978511440172 , -0.135207587968 , -0.155673599584
/ANG, 1,  -115.976296169
/REPLO
/REPLO
/REPLO
/REPLO
/REPLO
/DIST,1,1.08222638492,1
/REP,FAST
/DIST,1,1.08222638492,1
/REP,FAST
/DIST,1,0.924021086472,1
/REP,FAST
/DIST,1,0.924021086472,1
/REP,FAST
/DIST,1,0.924021086472,1
/REP,FAST
/REPLO
/VIEW,  1,  0.922998905255 , -0.373188127899 ,  0.938277256118E-01
/ANG, 1,  -112.416224286
/REPLO
/REPLO
/REPLO
/REPLO
/VIEW,  1,  0.657332088291 , -0.576604166202 , -0.485223825900
/ANG, 1,  -132.966267398
/REPLO
/REPLO
/VIEW,  1,  0.978849220605 , -0.194529452425 , -0.633442614660E-01
/ANG, 1,  -118.972610699
/REPLO
/REPLO
/REPLO
/DIST,1,1.08222638492,1
/REP,FAST
/DIST,1,1.08222638492,1
/REP,FAST
/DIST,1,1.08222638492,1
/REP,FAST
/REPLO
/VIEW,  1, -0.148661803138 , -0.552295851958 , -0.820285901499
/ANG, 1,  -154.789690777
/REPLO
/REPLO
/REPLO
/REPLO
/VIEW,  1, -0.135318980399 , -0.546650270483 , -0.826354799904
/ANG, 1,  -154.255347689
/REPLO
/VIEW,  1,  0.923825881845 , -0.463719651353E-01, -0.379993922167
/ANG, 1,  -127.257602168
/REPLO
/REPLO
/REPLO
/VIEW,  1,  0.649309824782 , -0.289881948137 , -0.703111091923
/ANG, 1,  -131.369148915
/REPLO
/VIEW,  1,  0.642644199744 , -0.297387347739 , -0.706094326517
/ANG, 1,  -131.491107102
/REPLO
/REPLO
*DIM,fc,TABLE,5,1,1, , ,
!*
*SET,FC(0,1,1) , 0
*SET,FC(1,0,1) , 0
*SET,FC(1,1,1) , 250000
*SET,FC(2,0,1) , 3600
*SET,FC(2,1,1) , 230000
*SET,FC(3,0,1) , 7200
*SET,FC(3,1,1) , 230000
*SET,FC(4,0,1) , 10800
*SET,FC(4,1,1) , 230000
*SET,FC(5,0,1) , 14400
*SET,FC(5,1,1) , 230000
*DIM,fcb,TABLE,5,1,1, , ,
!*
*SET,FCB(0,1,1) , 0
*SET,FCB(1,0,1) , 0
*SET,FCB(1,1,1) , 325000
*SET,FCB(2,0,1) , 3600
*SET,FCB(2,1,1) , 299000
*SET,FCB(3,0,1) , 7200
*SET,FCB(3,1,1) , 299000
*SET,FCB(4,0,1) , 10800
*SET,FCB(4,1,1) , 299000
*SET,FCB(5,0,1) , 14400
*SET,FCB(5,1,1) , 299000
/VIEW,  1,  0.653686566566 , -0.296489772156 , -0.696266965824
/ANG, 1,  -131.230916298
/REPLO
/VIEW,  1,  0.684776056418 , -0.300466054834 , -0.663929139629
/ANG, 1,  -130.454715126
/REPLO
/VIEW,  1,  0.805303344491 , -0.375432327022 , -0.458843209799
/ANG, 1,  -125.619417239
/REPLO
/REPLO
/REPLO
/VIEW,  1,  0.957500555011 , -0.287965977931 ,  0.163793378480E-01
/ANG, 1,  -115.674835093
/REPLO
/REPLO
/REPLO
/REPLO
/REPLO
/DIST,1,0.924021086472,1
/REP,FAST
/REPLO
/VIEW,  1,  0.864384449757 , -0.476610851889 , -0.160254856026
/ANG, 1,  -120.233656812
/REPLO
/REPLO
/REPLO
/DIST,1,1.08222638492,1
/REP,FAST
/DIST,1,1.08222638492,1
/REP,FAST
/POST1
FINISH
/SOL
!*
ANTYPE,4
!*
TRNOPT,FULL
LUMPM,0
!*
TUNIF,555,
VPLOT
/VIEW,  1,  0.673607188913 , -0.738794927554 ,  0.208664818732E-01
/ANG, 1,  -114.132567114
/REPLO
/REPLO
/DIST,1,0.924021086472,1
/REP,FAST
/DIST,1,0.924021086472,1
/REP,FAST
/DIST,1,0.924021086472,1
/REP,FAST
/DIST,1,0.924021086472,1
/REP,FAST
/DIST,1,0.924021086472,1
/REP,FAST
/DIST,1,0.924021086472,1
/REP,FAST
/VIEW,  1,  0.616158994723 , -0.787614246312 , -0.344851110850E-02
/ANG, 1,  -115.724388273
/REPLO
/REPLO
/VIEW,  1,  0.647187566000 , -0.762267339159 ,  0.983656780147E-02
/ANG, 1,  -114.794425911
/REPLO
/VIEW,  1,  0.650768194649 , -0.759180255842 ,  0.120870166951E-01
/ANG, 1,  -114.647384584
/REPLO
/VIEW,  1,  0.654330982159 , -0.756072359215 ,  0.143371342171E-01
/ANG, 1,  -114.502558745
/REPLO
/VIEW,  1,  0.867670725038 , -0.497010705846 ,  0.113080142230E-01
/ANG, 1,  -114.666835600
/REPLO
/VIEW,  1,  0.867670725038 , -0.497010705846 ,  0.113080142230E-01
/ANG, 1,  -114.666835600
/LIG, 1,1, 1.000, 0.00000000000 , 0.00000000000 , 0.00000000000 , 0.00000000000
/REPLO
/REPLO
/REPLO
/VIEW,  1,  0.869995021388 , -0.492875007469 ,  0.135236745210E-01
/ANG, 1,  -114.595616025
/REPLO
/REPLO
/REPLO
/REPLO
/VIEW,  1,  0.874571996961 , -0.484563187215 ,  0.179538221086E-01
/ANG, 1,  -114.456094350
/REPLO
/VIEW,  1,  0.879053065858 , -0.476198229147 ,  0.223820008574E-01
/ANG, 1,  -114.320393891
/REPLO
/VIEW,  1,  0.988203680220 , -0.146175020259 , -0.456765788041E-01
/ANG, 1,  -115.633395809
/REPLO
/REPLO
/VIEW,  1,  0.999095314543 ,  0.793760906393E-02, -0.417797417499E-01
/ANG, 1,  -115.551334887
/REPLO
/VIEW,  1,  0.999095314543 ,  0.793760906393E-02, -0.417797417499E-01
/ANG, 1,  -115.551334887
/LIG, 1,1, 1.000, 0.00000000000 , 0.00000000000 , 0.00000000000 , 0.00000000000
/REPLO
/VIEW,  1,  0.958561499645 ,  0.629484349429E-01, -0.277844103656
/ANG, 1,  -114.682940789
/REPLO
/VIEW,  1,  0.958561499645 ,  0.629484349429E-01, -0.277844103656
/ANG, 1,  -114.682940789
/LIG, 1,1, 1.000, 0.00000000000 , 0.00000000000 , 0.00000000000 , 0.00000000000
/REPLO
/REPLO
/VIEW,  1,  0.862522097828 , -0.371884307497E-01, -0.504651019396
/ANG, 1,  -114.570987903
/REPLO
/REPLO
/VIEW,  1,  0.737095659393 , -0.202333567446 , -0.644787652168
/ANG, 1,  -115.857621468
/REPLO
/REPLO
/REPLO
/VIEW,  1,  0.984735565748 , -0.174049301245 ,  0.164507956409E-02
/ANG, 1,  -108.509188894
/REPLO
/VIEW,  1,  0.984735565748 , -0.174049301245 ,  0.164507956409E-02
/ANG, 1,  -108.509188894
/LIG, 1,1, 1.000, 0.00000000000 , 0.00000000000 , 0.00000000000 , 0.00000000000
/REPLO
/REPLO
/REPLO
/VIEW,  1,  0.986354636307 , -0.164226421839 , -0.115850682184E-01
/ANG, 1,  -108.636844643
/REPLO
/VIEW,  1,  0.846683348751 ,  0.390316101431 , -0.361636071088
/ANG, 1,  -103.397748154
/REPLO
/REPLO
/LIG, 1,1, 1.000, 0.00000000000 , 0.00000000000 , 0.00000000000 , 0.00000000000
/REPLO
/VIEW,  1,  0.817016205068 ,  0.389843699435 , -0.424860460230
/ANG, 1,  -101.730526402
/REPLO
/REPLO
/REPLO
/VIEW,  1,  0.982672830199 ,  0.185134864719 ,  0.889891309823E-02
/ANG, 1,  -110.377628425
/REPLO
/VIEW,  1,  0.861167412723 ,  0.508290697480 ,  0.559053838695E-02
/ANG, 1,  -111.898801934
/REPLO
/VIEW,  1,  0.861167412723 ,  0.508290697480 ,  0.559053838695E-02
/ANG, 1,  -111.898801934
/LIG, 1,1, 1.000, 0.00000000000 , 0.00000000000 , 0.00000000000 , 0.00000000000
/REPLO
/VIEW,  1,  0.161742255337 ,  0.929463230845 , -0.331568311734
/ANG, 1,  -59.8578038348
/REPLO
/REPLO
/REPLO
/REPLO
/REPLO
/REPLO
/VIEW,  1,  0.179724934080 ,  0.919810891709 , -0.348779115720
/ANG, 1,  -61.0254487405
/REPLO
/REPLO
/REPLO
/VIEW,  1,  0.447505979823 ,  0.587707427329 , -0.674046272808
/ANG, 1,  -66.0270759570
/REPLO
/VIEW,  1,  0.447505979823 ,  0.587707427329 , -0.674046272808
/ANG, 1,  -66.0270759570
/LIG, 1,1, 1.000, 0.00000000000 , 0.00000000000 , 0.00000000000 , 0.00000000000
/REPLO
/REPLO
/VIEW,  1,  0.530848605545 , -0.104618663691E-01, -0.847402093072
/ANG, 1,  -64.9968584943
/REPLO
FLST,2,20,5,ORDE,18
FITEM,2,8
FITEM,2,14
FITEM,2,19
FITEM,2,-20
FITEM,2,26
FITEM,2,28
FITEM,2,34
FITEM,2,-35
FITEM,2,38
FITEM,2,-39
FITEM,2,41
FITEM,2,43
FITEM,2,-46
FITEM,2,48
FITEM,2,50
FITEM,2,-51
FITEM,2,54
FITEM,2,57
/GO
!*
!*
!*
SFA,P51X,1,CONV, %FCB% , %TB%
/REPLO
/VIEW,  1, -0.737082979073 ,  0.407195885203 , -0.539351641357
/ANG, 1,  -41.1972206549
/REPLO
/REPLO
/VIEW,  1, -0.950393755642 ,  0.294884550050 ,  0.989687393956E-01
/ANG, 1,  -26.2069584189
/REPLO
/REPLO
/REPLO
/REPLO
/REPLO
/REPLO
/REPLO
/REPLO
/VIEW,  1, -0.942845890506 , -0.427748291263E-02, -0.333201635493
/ANG, 1,  -29.6673286900
/REPLO
/REPLO
/VIEW,  1, -0.858467308386 ,  0.461966393615 , -0.222757562393
/ANG, 1,  -28.5412748526
/REPLO
/VIEW,  1, -0.858467308386 ,  0.461966393615 , -0.222757562393
/ANG, 1,  -28.5412748526
/LIG, 1,1, 1.000, 0.00000000000 , 0.00000000000 , 0.00000000000 , 0.00000000000
/REPLO
FLST,2,6,5,ORDE,6
FITEM,2,9
FITEM,2,15
FITEM,2,22
FITEM,2,29
FITEM,2,36
FITEM,2,60
/GO
!*
!*
!*
SFA,P51X,1,CONV, %FC% , %TB%
/VIEW,  1, -0.861020348686 ,  0.453417929305 , -0.230339185840
/ANG, 1,  -28.7399028233
/REPLO
/VIEW,  1, -0.232456538482E-01, -0.423906753212 , -0.905407479624
/ANG, 1,  -29.1978502822
/REPLO
/VIEW,  1, -0.370331874982E-01, -0.416914529359 , -0.908190959123
/ANG, 1,  -29.5612417267
/REPLO
/DIST,1,1.08222638492,1
/REP,FAST
/DIST,1,1.08222638492,1
/REP,FAST
/DIST,1,1.08222638492,1
/REP,FAST
/DIST,1,1.08222638492,1
/REP,FAST
/VIEW,  1, -0.599904260092E-01, -0.405033092134 , -0.912331816317
/ANG, 1,  -30.1477605162
/REPLO
/VIEW,  1, -0.233366675981 , -0.288313782315 , -0.928663102244
/ANG, 1,  -33.7767807995
/REPLO
DELTIM,300,150,400
OUTRES,ERASE
OUTRES,ALL,ALL
AUTOTS,1
KBC,0
TIME,14400
ALLSEL,ALL
/STATUS,SOLU
SOLVE
FINISH
/POST1
FINISH
应力场命令流如下
RESUME,'thermal-result','db','D:\Users\xubu\ANSYS\',0,0
/COM,ANSYS RELEASE 13.0 UP20101012    07:15:56 08/10/2014
!*
/NOPR
KEYW,PR_SET,1
KEYW,PR_STRUC,1
KEYW,PR_THERM,0
KEYW,PR_FLUID,0
KEYW,PR_ELMAG,0
KEYW,MAGNOD,0
KEYW,MAGEDG,0
KEYW,MAGHFE,0
KEYW,MAGELC,0
KEYW,PR_MULTI,0
KEYW,PR_CFD,0
/GO
!*
/COM,
/COM,Preferences for GUI filtering have been set to display:
/COM,  Structural
!*
/PREP7
LSCLEAR,SOLID
ETCHG,TTS
!*
FINISH
/SOL
!*
ANTYPE,4
!*
TRNOPT,FULL
LUMPM,0
!*
/VIEW,  1, -0.766716164643E-01,  0.525979674769E-01,  0.995668075739
/ANG, 1, 25.6502641517
/REPLO
/REPLO
/REPLO
VPLOT
/VIEW,  1, -0.323080684225 ,  0.238768716373 ,  0.915755628736
/ANG, 1, 23.3793359513
/REPLO
/REPLO
/REPLO
/REPLO
/REPLO
/REPLO
/VIEW,  1, -0.873778026150E-01,  0.258155263548 ,  0.962143949476
/ANG, 1, 26.9501451971
/REPLO
/REPLO
TREF,555,
FLST,2,2,5,ORDE,2
FITEM,2,5
FITEM,2,-6
!*
/GO
DA,P51X,UX,
FLST,2,1,3,ORDE,1
FITEM,2,5
!*
/GO
DK,P51X, , , ,0,UY, , , , , ,
/VIEW,  1,  0.945217882343 , -0.288199815838 ,  0.153310211826
/ANG, 1, 23.9093711863
/REPLO
/REPLO
/REPLO
FLST,2,1,5,ORDE,1
FITEM,2,1
!*
/GO
DA,P51X,UZ,
/VIEW,  1, -0.122427080986 ,  0.305586851673 ,  0.944260708664
/ANG, 1, 20.6684720548
/REPLO
/DIST,1,1.08222638492,1
/REP,FAST
/DIST,1,1.08222638492,1
/REP,FAST
/VIEW,  1, -0.463805197477 ,  0.282823070180 ,  0.839580758336
/ANG, 1, 14.5250395905
/REPLO
/REPLO
LDREAD,TEMP,,, , ,'thermal-result','rth',' '
/DIST,1,1.08222638492,1
/REP,FAST
/DIST,1,1.08222638492,1
/REP,FAST
/VIEW,  1, -0.168599859003 ,  0.149302793483 ,  0.974311430397
/ANG, 1, 18.7502141712
/REPLO
ALLSEL,ALL
/STATUS,SOLU
SOLVE
FINISH
