A noob intersted in SCI searching for help(about overlap PCR)
|
|

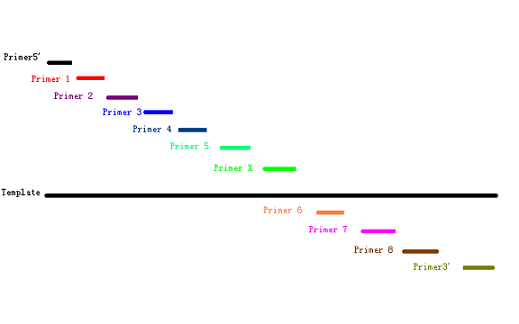

With 14 rare codens in gene, the expression of AK404 maybe reduced. Thus, the rare codens were designed to be substituted by E.coli perferred codens Original AK404 gene being as templete, nine pairs of primers were designed to synthesis the new AK404 gene with E.coli perferred codens, as shown in Fig 1.Designed primers for sythesising new AK404 gene: Primer 1 with mutation sites 1 and 2; Primer 2 with mutation site 3; Primer 3 with mutation sites 4 and 5; Primer 4 with mutaion site 6; Primer 5 with mutaion site 7; Primer X with a mutaion orginal being an NcoI restriction site; Primer 6 with mutation sites 8,9 and 10; Primer 7 with mutaion site 11; Primer 8 with mutaion site 12 and 13; Primer 3’ with mutaion site 14. Firstly, using SOE PCR protocl, Primer5’, Primer1 and Primer 6 are designed to produce SubGene1A, as well as Primer3’, Primer7 and Primer 6 to SubGene1B. In principle, with SubGene1A coupling SubGene1B, the whole gene will be synthetized by means of overlap PCR. The rest can be done in the same manner  |
回复此楼» 猜你喜欢
筑牢营养安全线：以精准检测，护健康基石
已经有0人回复
-
推荐一些20种氨基酸检测的实际应用案例
已经有0人回复
-
化学工程及工业化学论文润色/翻译怎么收费?
已经有52人回复
-
不合理蛙科研实验中的趣事：实验器材的 “乌龙”
已经有0人回复
-
不合理蛙科研实验中的趣事：和实验材料的 “斗智斗勇”
已经有0人回复
-
蛋白质检测：精准分析，解锁生物分子的密码
已经有0人回复
-
不合理蛙科研实验之小鼠实验：严谨设计，解析生命机制的重要载体
已经有0人回复
-
不合理蛙科研实验之重金属检测：精准筛查，守护健康与环境的防线
已经有0人回复
-
不合理蛙科研实验之“蛙测重金属我背锅三千”
已经有0人回复
-
不合理蛙科研实验之“鼠逃三次我发三篇SCI”
已经有0人回复
» 本主题相关价值贴推荐，对您同样有帮助:
- 求关于Overlap PCR(重叠延伸PCR)的具体实验过程及原理
已经有10人回复
- overlap PCR之问题
已经有16人回复
- overlap PCR做不出来呐。。。。
已经有23人回复
- 做过overlap PCR的虫子过来看看
已经有19人回复
- Overlap matrix数值小于零
已经有18人回复
- HELP!! q-PCR Stepone (Derivative Reporter)
已经有7人回复
- about tail-pcr
已经有4人回复
- 【求助】find a foreigner for help！
已经有8人回复
|
However, result is far from encouraging. The first step geting ready for the subsequent synthesis of SubGene1A and SubGene1B(with 5 cycles of Denature-Annealing-elongation): Line 1: AK404 primer5’ coupling mutaion 1 primer5’,named M01; Line 2: Mutation 6 primer5’ coupling mutation 7 primer3’, named M67; Line 3: Mutation 1 primer5’ coupling mutation 6 primer3’,named M16; Line 4: Mutation 7 primer5’ coupling AK404 primer3’, named M70. Firstly, because of extremely short distance between 5’ terminal AK404 gene and mutation 1 site, as well as mutation 7 site to mutation 6 site, the target gene is hard to distinct from primer dimer. Secondly, as the few cycles, the band seemed to be fuzzy and this may not be the problem (PCR condition: 94C 10min, (94C 1min, 50C 40s, 72C 40s)*5cycles, 72C 10min  |
2楼2011-11-09 10:18:12
|

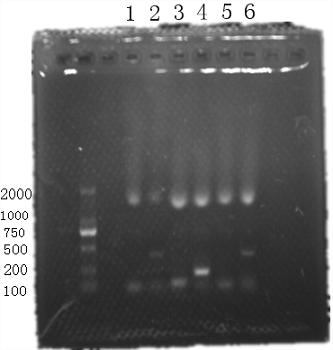

The first step geting ready for the subsequent synthesis of SubGene1A and SubGene1B(with 10 cycles of Denature-Annealing-elongation): Line 1: AK404 primer5’ coupling mutaion 1 primer5’,named M01; Line 2: Mutation 6 primer5’ coupling mutation 7 primer3’, named M67; Line 3: Mutation 1 primer5’ coupling mutation 6 primer3’,named M16; Line 4: Mutation 7 primer5’ coupling AK404 primer3’, named M70. The localization of band in line 2 fitted with that have been anticipated, whereas the base number of band in line 4 showed was less than the that of orginal fragment. PCR condition: 94C 10min, (94C 1min, 50C 40s, 72C 40s)*10cycles, 72C 10min  |
3楼2011-11-09 10:24:08
|

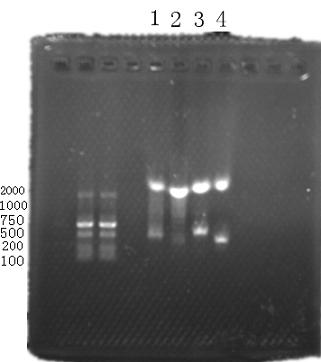

SubGene1A and SubGene1B: Line 3: Using the production M01 and M16 from step I(5 cycles) as templete and primers, the newly synthetzed gene was showen about 500bp long by the band in line 3, and it is conformed to that of SubGene1A anticipited. Line 4: Using the production M67 and M170 from step I(5 cycles) as templete and primers, the newly synthesized gene was showen about 300-400bp long by the band in line 4, and it is conformed to that of SubGene1B anticipited. PCR condition: 94C 10min, (94C 1min, 50C 40s, 72C 40s)*30 cycles, 72 10min  |
4楼2011-11-09 10:31:44
|

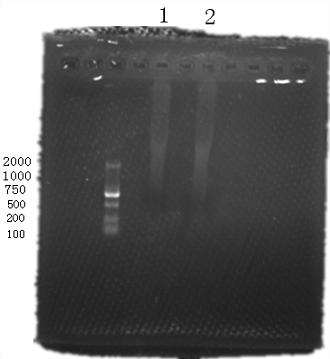

SubGene1A and SubGene1B being templete and primers, new AK404 with four mutation sites was expected to be synthetized. Nevertheless, nothing but the fuzzy tailing has been showen in electrophoresis diagram. PCR condition:94C 5min, (94C 1min, 58C 70s, 72C 40s)*30 cycles, 72C 10min By the way ,SubGene1A and SubGene1B were gotten by Gel extraction  |
5楼2011-11-09 10:38:26
