## Copyright (C) 2015 Leiz
##
## This program is free software; you can redistribute it and/or modify
## it under the terms of the GNU General Public License as published by
## the Free Software Foundation; either version 3 of the License, or
## (at your option) any later version.
##
## This program is distributed in the hope that it will be useful,
## but WITHOUT ANY WARRANTY; without even the implied warranty of
## MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the
## GNU General Public License for more details.
##
## You should have received a copy of the GNU General Public License
## along with Octave; see the file COPYING.  If not, see
## <http://www.gnu.org/licenses/>.

## demoSurf

## Author: Leiz <Leiz@LEIZ-PC>
## Created: 2015-01-05

clear all
clc
x1 = linspace( 0, 6, 50 );
x2 = linspace( 0, 6, 50 );
[ xx1, xx2 ] = meshgrid( x1, x2 );
tempx1 = xx1;
tempx2 = xx2;
tempx1( xx1 + xx2 > 6 ) = NaN;
tempx1( -xx1 + 2*xx2 > 2 ) = NaN;
tempx2( xx1 + xx2 > 6 ) = NaN;
tempx2( -xx1 + 2*xx2 > 2 ) = NaN;
fx = -2*tempx1 - 6*tempx2 + tempx1.^2 - 2*tempx1.*tempx2 + 2*tempx2.^2;

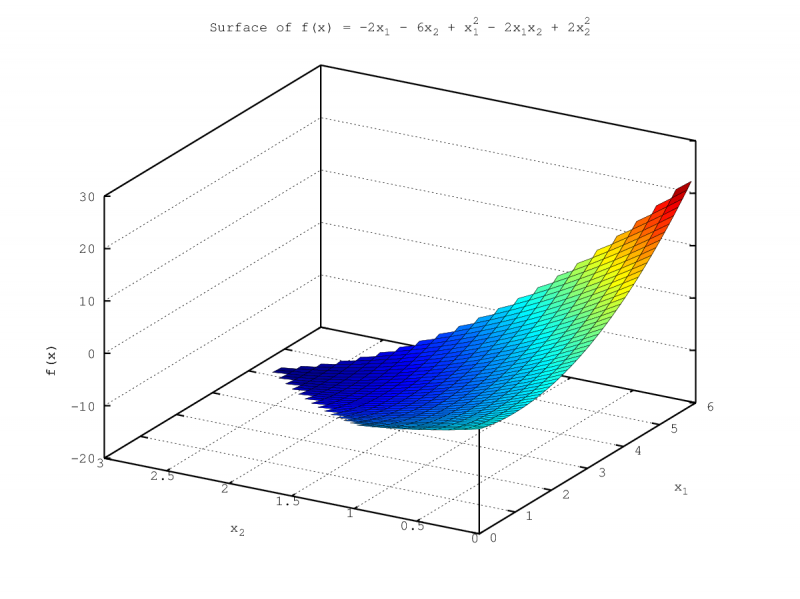

figure(1)
surf( tempx1, tempx2, fx );
h1 = get( gcf, "currentaxes" );
set( h1, "linewidth", 2 );
xlabel( 'x_{1}' );
ylabel( 'x_{2}' );
zlabel( 'f(x)' );
title( 'Surface of f(x) = -2x_{1} - 6x_{2} + x_{1}^{2} - 2x_{1}x_{2} + 2x_{2}^{2}' );
view( -60, 30 );
print( "demoSurf.png", "-dpng" );

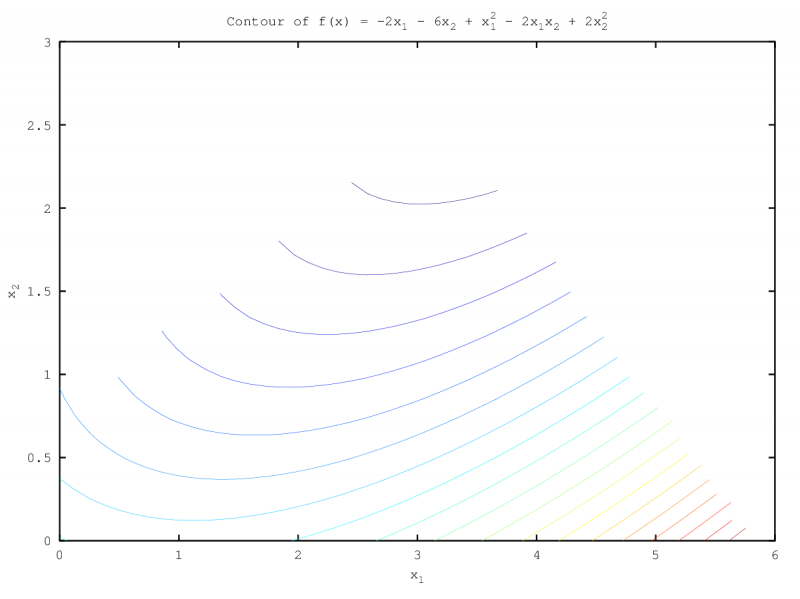

figure(2)
contour( tempx1, tempx2, fx, 20 );
h2 = get( gcf, "currentaxes" );
set( h2, "linewidth", 2 );
axis( [ 0, 6, 0, 3 ] );
xlabel( 'x_{1}' );
ylabel( 'x_{2}' );
title( 'Contour of f(x) = -2x_{1} - 6x_{2} + x_{1}^{2} - 2x_{1}x_{2} + 2x_{2}^{2}' );
print( "demoContour.png", "-dpng" );

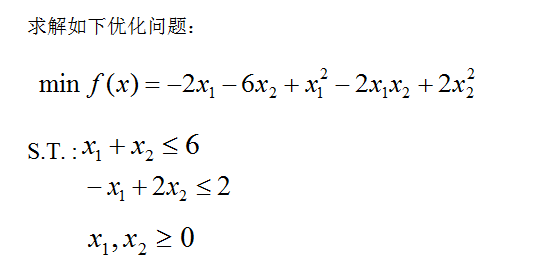

MIN = -2*X1 - 6*X2 + X1^2 - 2*X1*X2 + 2*X2^2;
X1 + X2 <= 6;
-X1 + 2*X2 <= 2;

  Global optimal solution found.
  Objective value:                       -15.11111111082
  Infeasibilities:                        0.000000000000
  Total solver iterations:                             6
  Elapsed runtime seconds:                          0.02
  Model is convex quadratic

  Model Class:                                        QP

  Total variables:                      2
  Nonlinear variables:                  2
  Integer variables:                    0

  Total constraints:                    3
  Nonlinear constraints:                1

  Total nonzeros:                       6
  Nonlinear nonzeros:                   3

                    Variable                 Value              Reduced Cost
                          X1        3.333333333380           0.3832140051194E-10
                          X2        2.666666666506           0.4779796153731E-10

                         Row          Slack or Surplus            Dual Price
                           1       -15.11111111082           -1.000000000000
                           2       0.1140998406868E-09        1.111111111122
                           3       0.3667064429891E-09       0.4444444448297

4楼: Originally posted by 吃木头在虫子 at 2015-01-04 20:48:03
上面的那段程序输入到matlab就能输出该图形吗？附加的约束条件加了没？我想要程序，弄好再加你20金币...

8楼: Originally posted by 吃木头在虫子 at 2015-01-04 21:25:03
看到了，很好的，程序在哪？我需要程序啊，发给我呗，我把金币给你...

2楼: Originally posted by 吃木头在虫子 at 2015-01-04 20:29:38
没有人会吗？等待大婶出现啊

3楼: Originally posted by 嘻哈学士 at 2015-01-04 20:44:45

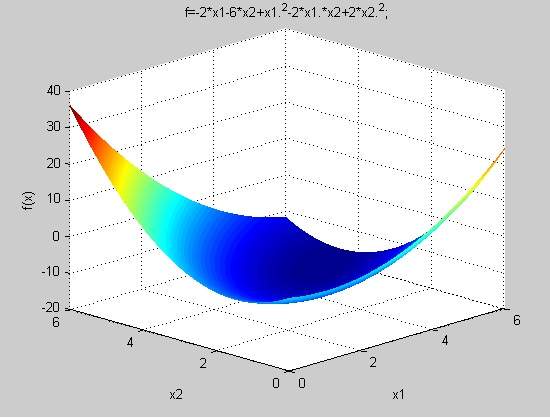

见图

...

4楼: Originally posted by 吃木头在虫子 at 2015-01-04 20:48:03
上面的那段程序输入到matlab就能输出该图形吗？附加的约束条件加了没？我想要程序，弄好再加你20金币...

7楼: Originally posted by 嘻哈学士 at 2015-01-04 21:19:53
这个是限制条件的，请查收

...

9楼: Originally posted by 嘻哈学士 at 2015-01-04 21:27:50
给我邮箱，邮箱发给你。...
