function Untitled2
clear;clc;close all
R=10;
x0=linspace(-R,R,50);
x=[x0,fliplr(x0)];
y=[sqrt(R^2-x0.^2),-fliplr(sqrt(R^2-x0.^2))];


theta=atan(y./x);

figure1=figure('color','w');plot(x,y);hold on;axis equal
myr=linspace(0,1,length(x));
myg=linspace(0,0,length(x));
myb=linspace(1,0,length(x));
for jj=1:length(x)
    plotSquare(x(jj),y(jj),theta(jj),1,[myr(jj),myg(jj),myb(jj)]);
end

function plotSquare(x0,y0,theta,a,mycolor)
xs=[-a/2,0,a/2,0,-a/2];
ys=[0,-a/4,0,a/4,0];
xy=[cos(theta),-sin(theta);
    sin(theta),cos(theta)]*[xs;ys] ;

fill(xy(1,:)+x0,xy(2,:)+y0,mycolor)

2楼: Originally posted by sogooda at 2012-04-06 09:31:01:
据我所知没有这种现成的命令（一个命令就能实现楼主所说的功能）。
但是用matlab自己编程的话

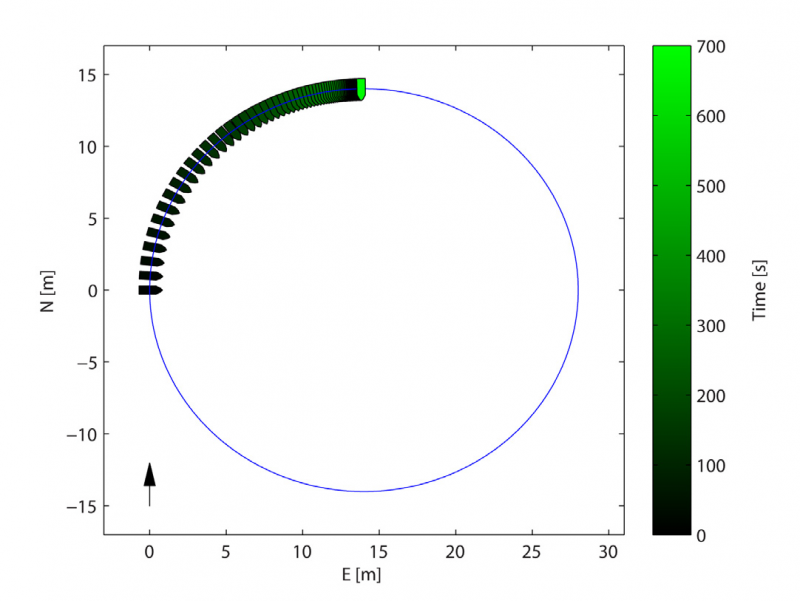

“在画出质点圆形轨迹的前提下，画出菱形所指出的方向。菱形的位置和指向数据都可以得到。菱形的颜色从深到浅代表着 ...

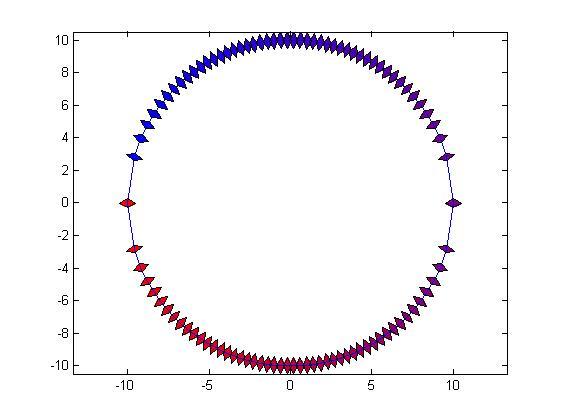

4楼: Originally posted by sogooda at 2012-04-06 18:39:14:
function Untitled2
clear;clc;close all
R=10;
x0=linspace(-R,R,50);
x=;
y=;


theta=atan(y./x);

figure1=figure('color','w');plot(x,y);hold on;axis equal
myr=linspace(0,1,length(x));
m ...

6楼: Originally posted by plxh at 2012-04-06 19:27:44:
请教一下，右边的colour bar怎么画出来？

7楼: Originally posted by sogooda at 2012-04-06 19:36:14:
matlab 命令colorbar可以添加。

7楼: Originally posted by sogooda at 2012-04-06 19:36:14:
matlab 命令colorbar可以添加。
