| 查看: 2824 | 回复: 6 | |||||
小兰花银虫 (著名写手)
|
[求助]
能说明 微观结构 对 材料宏观力学影响 的 示意图【PPT用图】，非常感谢！
|
|
想找一个能 简明扼要的说明 金属材料的微观结构 （实验 或模拟得到的 微观结构，如 再结晶后的晶粒细化 等）对材料力学性能影响 或 材料的实际运用 作用及意义 的 精美的图片 做PPT时要用， 但一直没做到合适的，自己归纳又水平不够。 请高手帮忙！非常感谢！ |
回复此楼» 收录本帖的淘帖专辑推荐
 资源收集 | 喜欢的 | 收藏 |
» 猜你喜欢
287分求调剂 有专利国奖一志愿哈工大085406
已经有4人回复
-
285求调剂
已经有7人回复
-
085405软件工程301分求调剂，专硕可跨专业，四六级已过
已经有3人回复
-
求调剂
已经有5人回复
-
274求调剂求调剂
已经有3人回复
-
求调剂到材料
已经有5人回复
-
材料考研求调剂总分280
已经有5人回复
-
一志愿郑州大学材料与化工085600，求调剂
已经有27人回复
-
化工求调剂！
已经有11人回复
-
285求调剂
已经有4人回复
» 本主题相关商家推荐: (我也要在这里推广)
» 本主题相关价值贴推荐，对您同样有帮助:
- 常用无机非的550种标准热力学数据
已经有360人回复
- 药代动力学动物选择
已经有9人回复
- 济南市哪所医院治疗耳鸣比较专业呢？非常感谢！
已经有5人回复
- 耳鸣的困扰！求助，非常感谢！
已经有10人回复
- 关于第一性原理和分子动力学模拟，还有ms软件
已经有9人回复
- 酰基化反应热力学计算
已经有5人回复
- 一未知物，大概有5个左右的组分，用液质联用能分析组分的具体结构式吗
已经有17人回复
- 《经济学原理：宏观经济学分册》曼昆著PDF【转载】
已经有250人回复
- 哪些文献、书籍 比较详细介绍 材料的微观结构与力学性能 的关系？ 谢谢
已经有8人回复
- 高斯计算微观动力学研究-计算结果：逆反应速率常数大于正反应速率常数 是否正常
已经有14人回复
- 求助几个微观反应动力学的基础问题(2)
已经有2人回复
- 微观结构 对 其力学性能的影响 的问题，非常感谢。急！
已经有5人回复
- 聚氨酯预聚体的结构对其密封胶力学性能的影响
已经有5人回复
- 【求助】热力学能改变的微观解释？
已经有5人回复
- 【请教】请教一下有没有做焊条工艺性能的？就是焊接熔渣微观结构对焊条工艺性能影响！
已经有9人回复
imrsfb
铁杆木虫 (著名写手)
- MM-EPI: 7
- 应助: 12 (小学生)
- 贵宾: 1.17
- 金币: 8101.6
- 散金: 2541
- 红花: 45
- 沙发: 3
- 帖子: 2477
- 在线: 580.6小时
- 虫号: 472279
- 注册: 2007-12-04
- 性别: GG
- 专业: 金属结构材料
【答案】应助回帖
★ ★
aishan(金币+2): 感谢应助 2011-08-08 11:06:51
小兰花(金币+10): 感谢版主的热情帮助！非常感谢！ 2011-08-08 23:18:10
aishan(金币+2): 感谢应助 2011-08-08 11:06:51
小兰花(金币+10): 感谢版主的热情帮助！非常感谢！ 2011-08-08 23:18:10

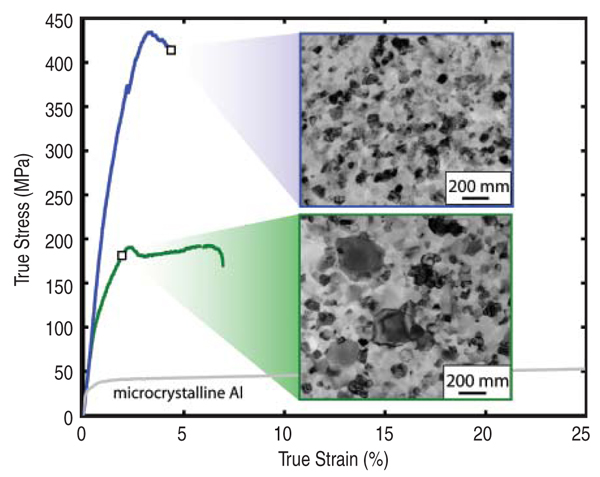

很难找你想要的图片，不过下面这个似乎能说明点问题： Microtensile stress-strain curves for submicrometer nanocrystalline aluminum thin films showing two distinct behaviors.7 The curve with the highest strength, gradual deviation from plasticity, and limited ductility is representative of a specimen that maintains its nanocrystalline grain size. By contrast, specimens observed to undergo stress-assisted room-temperature grain growth exhibit lower yield strengths and regions of extended plasticity. Reference：The Micro- and Nanoscale Tensile Testing of Materials D.S. Gianola and C. Eberl JOM，Vol. 61, No.3 pp. 24-35 http://www.tms.org/pubs/journals/jom/0903/gianola-0903.html |
2楼2011-08-08 00:43:07
imrsfb
铁杆木虫 (著名写手)
- MM-EPI: 7
- 应助: 12 (小学生)
- 贵宾: 1.17
- 金币: 8101.6
- 散金: 2541
- 红花: 45
- 沙发: 3
- 帖子: 2477
- 在线: 580.6小时
- 虫号: 472279
- 注册: 2007-12-04
- 性别: GG
- 专业: 金属结构材料
【答案】应助回帖
★ ★
aishan(金币+2): 辛苦了 2011-08-08 11:07:00
小兰花(金币+8): 非常感谢版主！ 2011-08-08 23:18:31
aishan(金币+2): 辛苦了 2011-08-08 11:07:00
小兰花(金币+8): 非常感谢版主！ 2011-08-08 23:18:31
|

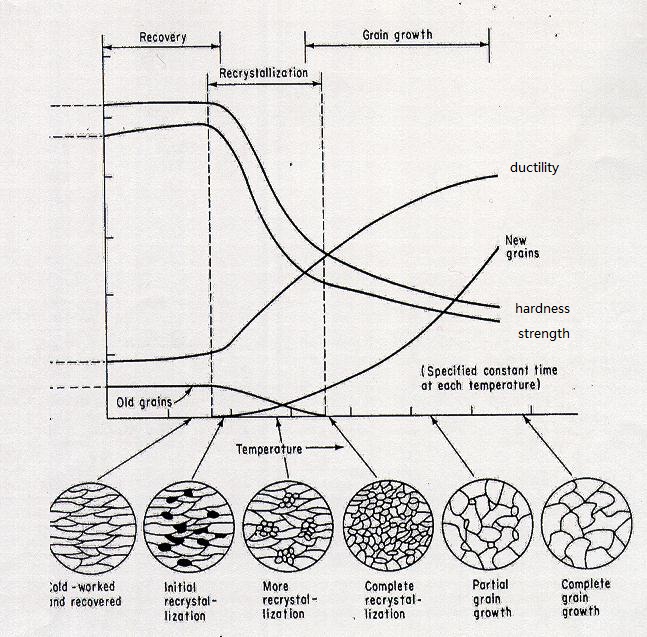

这个是个老图，不怎么漂亮，但是能说明问题 Increasing the annealing time decreases the recrystallization temperature for the start of recrystallization.During recrystallization stage, there is a significant drop in tensile strength, hardness and a large increase in the ductility of the material (See Figure 1).  Figure 1. Effect of annealing on tensile strength, hardness, ductility and grain size. Reference：By: Serdar Z. Elgun，September 17, 1999 http://info.lu.farmingdale.edu/d ... nnealingstages.html |
3楼2011-08-08 01:09:41
imrsfb
铁杆木虫 (著名写手)
- MM-EPI: 7
- 应助: 12 (小学生)
- 贵宾: 1.17
- 金币: 8101.6
- 散金: 2541
- 红花: 45
- 沙发: 3
- 帖子: 2477
- 在线: 580.6小时
- 虫号: 472279
- 注册: 2007-12-04
- 性别: GG
- 专业: 金属结构材料
【答案】应助回帖
★ ★
aishan(金币+2): 挺漂亮的图片，看来你是专家啊 2011-08-08 11:07:32
小兰花(金币+7): 版主的知识面真宽！谢谢！ 2011-08-08 23:19:44
aishan(金币+2): 挺漂亮的图片，看来你是专家啊 2011-08-08 11:07:32
小兰花(金币+7): 版主的知识面真宽！谢谢！ 2011-08-08 23:19:44

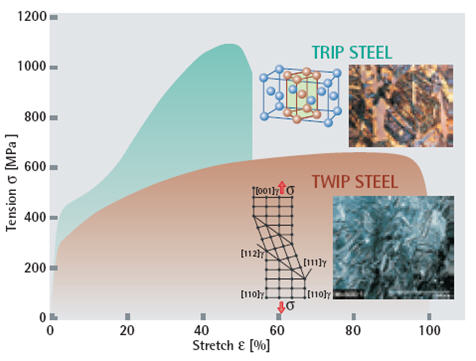

这个是Twip钢和Trip钢的组织和应力应变示意图，挺漂亮 Figure 2: The stress-strain diagram clearly shows the differing characters of TRIP and TWIP steel. TRIP steel can resist high stresses without deforming. TWIP steel deforms with low stresses, but does not break until strain reaches around 90 percent. refrence： Multi Phase Twinning-Induced Plasticity (TWIP) Steel http://www.keytometals.com/page. ... site=kts&NM=207 |
4楼2011-08-08 01:14:33
小兰花
银虫 (著名写手)
- 应助: 2 (幼儿园)
- 金币: 3660.3
- 散金: 974
- 红花: 9
- 帖子: 1927
- 在线: 936.3小时
- 虫号: 501372
- 注册: 2008-02-13
- 专业: 凝聚态物性I:结构、力学和
5楼2011-08-09 00:57:57
imrsfb
铁杆木虫 (著名写手)
- MM-EPI: 7
- 应助: 12 (小学生)
- 贵宾: 1.17
- 金币: 8101.6
- 散金: 2541
- 红花: 45
- 沙发: 3
- 帖子: 2477
- 在线: 580.6小时
- 虫号: 472279
- 注册: 2007-12-04
- 性别: GG
- 专业: 金属结构材料
【答案】应助回帖
★ ★
aishan(金币+2): 感谢应助 2011-08-09 09:43:40
小兰花(金币+10): 版主的金属学知识好渊博！ 2011-08-09 09:54:37
aishan(金币+2): 感谢应助 2011-08-09 09:43:40
小兰花(金币+10): 版主的金属学知识好渊博！ 2011-08-09 09:54:37
|

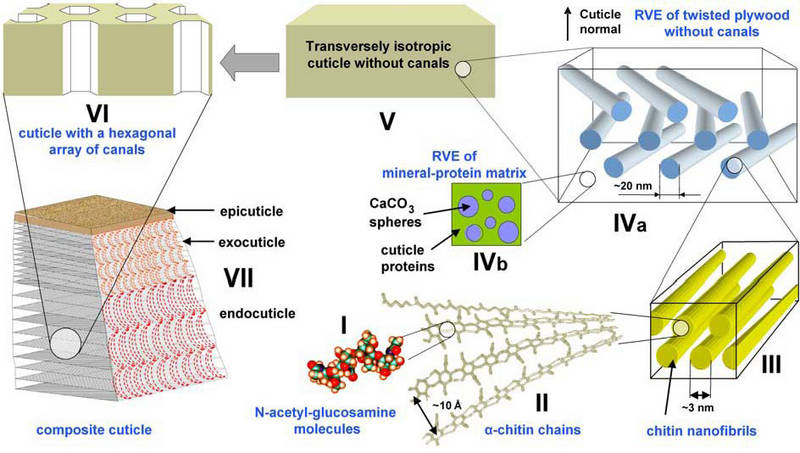

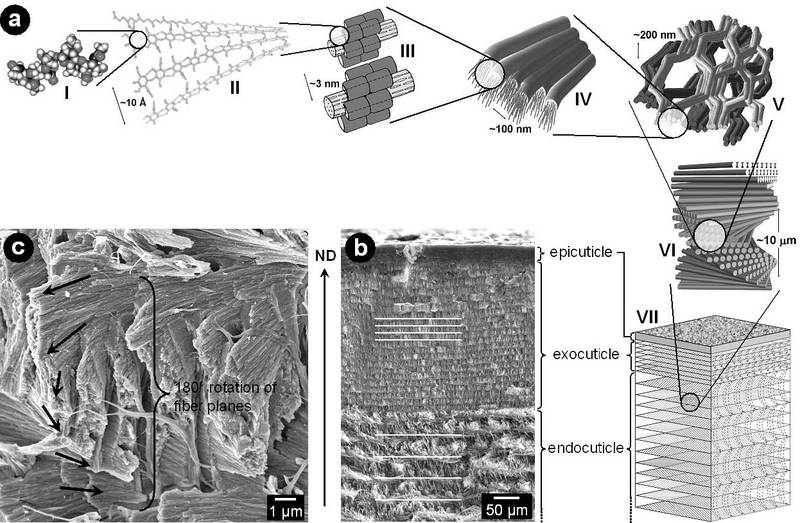

you can see this paper: Chitin in the exoskeletons of Arthropoda: From ancient design to novel materials science H. Fabritius, C. Sachs, D. Raabe, S. Nikolov, M. Friák, J. Neugebauer http://www.mpie.de/index.php?id=2957  Figure 1. Microstructure of arthropod cuticle using the American lobster Homarus americanus as model (a) Hierarchical organization starting with the acetylglucosamine molecules (I) forming antiparallel chains of α-chitin (II). Eighteen to 25 chitin molecules wrapped with proteins form nanofibrils (III) which aggregate forming chitin protein fibres (IV) that are arranged in horizontal planes where the long axes of the fibrers are all oriented in the same direction around the cavities of the pore canal system. (V). The chitin protein fibres form the typical twisted plywood structure (VI) of the threelayered cuticle (VII). (b) SEM micrograph of a cross section through the cuticle showing epicuticle and the organization of exo- and endocuticle with different stacking heights of the chitin protein fibres (white lines). (c) SEM micrograph of cross-fractured lobster cuticle showing the gradual rotation of the fibres planes around the normal axis (ND) of the cuticle and the interspersed pore canals.  Figure 11. Hierarchical model for lobster cuticle: (I), (II) - α-chitin properties via ab initio calculations; (III) representative volume element (RVE) for a single chitin-protein fiber; (IVa) RVE for chitin-protein fibers arranged in twisted plywood and embedded in mineral-protein matrix; (IVb) RVE for the mineral-protein matrix; (V) homogenized twisted plywood without canals; (VI) homogenized plywood pierced with hexagonal array of canals; (VII) 3-layer cuticle. |
6楼2011-08-09 02:01:14
imrsfb
铁杆木虫 (著名写手)
- MM-EPI: 7
- 应助: 12 (小学生)
- 贵宾: 1.17
- 金币: 8101.6
- 散金: 2541
- 红花: 45
- 沙发: 3
- 帖子: 2477
- 在线: 580.6小时
- 虫号: 472279
- 注册: 2007-12-04
- 性别: GG
- 专业: 金属结构材料
【答案】应助回帖
★ ★
aishan(金币+2): 感谢应助 2011-08-09 09:43:52
小兰花(金币+15): 非常感谢！一下子找到这么多好资料！ 2011-08-09 09:55:15
aishan(金币+2): 感谢应助 2011-08-09 09:43:52
小兰花(金币+15): 非常感谢！一下子找到这么多好资料！ 2011-08-09 09:55:15

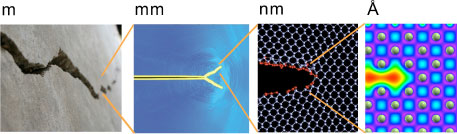

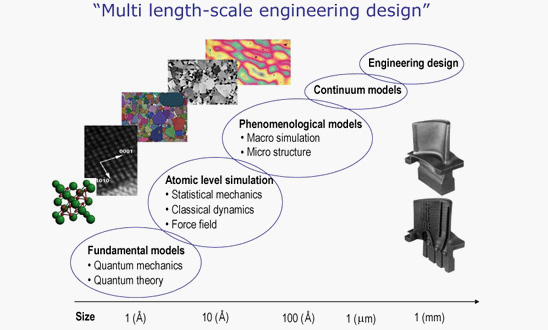

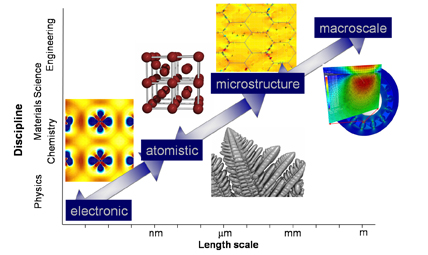

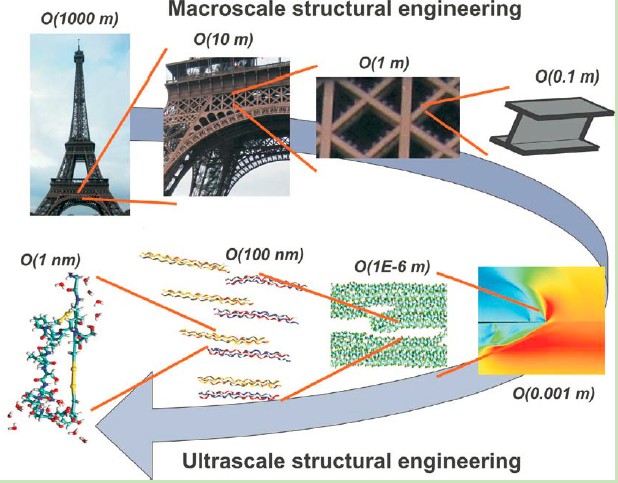

看看这几个有意思的图片： Failure of materials and structures involves many length-scales, from the macroscopic scale to the level of Angstrom where chemical bonds are found (adapted from Buehler and Xu, Nature, 2010). A comprehensive analysis of failure must start at a fundamental level in order to represent key mechanisms of how materials fail. (Images: Buehler group, MIT)  The long term impact of our work is that it will extend our ability to perform structural engineering at the macroscale, to the ultimate scale, the nanoscale. Opening the material scale as design space for new material development may open endless possibilities for development of robust, adaptive, active, and ‘smart’ materials. Ref. Markus J. Buehler* and Theodor Ackbarow，Materials Today，SEPTEMBER 2007 | VOLUME 10 | NUMBER 9  Traditionally different disciplines focus on different length scales. Multiscale modelling of materials across the length scales requires overcoming the borders between the disciplines for a seamless integration of the models on different length scales into one coherent multi-scale modelling framework (After D.G. Pettifor, 1991). http://www.icams.de/content/research-at-icams/research-index.html  Muti length scale engineering design http://www.hero-m.mse.kth.se/ [ Last edited by imrsfb on 2011-8-9 at 03:15 ] |
7楼2011-08-09 03:07:27
