【奖励】本帖被评价8次，作者11900490增加金币 6.4 个

11900490

木虫 (知名作家)

[资源] 【资源】SIR2008

如果你用过SHEXLTL的话。你一定用过WinGX，里面带有的模块包括Sir92，Sir97，Sir2004。有时候这两个软件相互补充能够解决大多数晶体。
Sir家族为意大利IC Crystallography Institute的软件。

Sir2008是个应用非常广泛的晶体解析软件。现在已经合并到了Il Milione中。我们现在用的都是Il Milione中带有的Sir2008.

下载链接：http://ishare.iask.sina.com.cn/f/12780857.html

Il Milione and SIR2008
Submitted by Sabino Maggi on 28 September, 2009 - 17:50

IL MILIONE is a suite of computer programs devoted to protein crystal structure determination by X-ray crystallography. The current package also contains SIR2008, the latest version of the well-known Sir package for the solution and refinement of small molecule single crystal structures.

IL MILIONE may be used in the following key activities:
Ab initio phasing, via Patterson or direct methods
The program may succeed even with structures with up to 6000 non-H atoms in the asymmetric unit, provided that atomic resolution is available, and with data at quasi-atomic resolution (1.4–1.5 Å

.
MAD/SAD, MIR/SIR, MIRAS/SIRAS techniques
Single or multiple isomorphous replacement, single- or multiple-wavelength anomalous diffraction, and single or multiple isomorphous replacement with anomalous scattering techniques. In the ﬁrst step the program ﬁnds the heavy-atom/anomalous scatterer substructure, then automatically uses the above information to phase protein reﬂections. Phase extension and reﬁnement are performed by electron density modiﬁcation techniques.
Molecular replacement

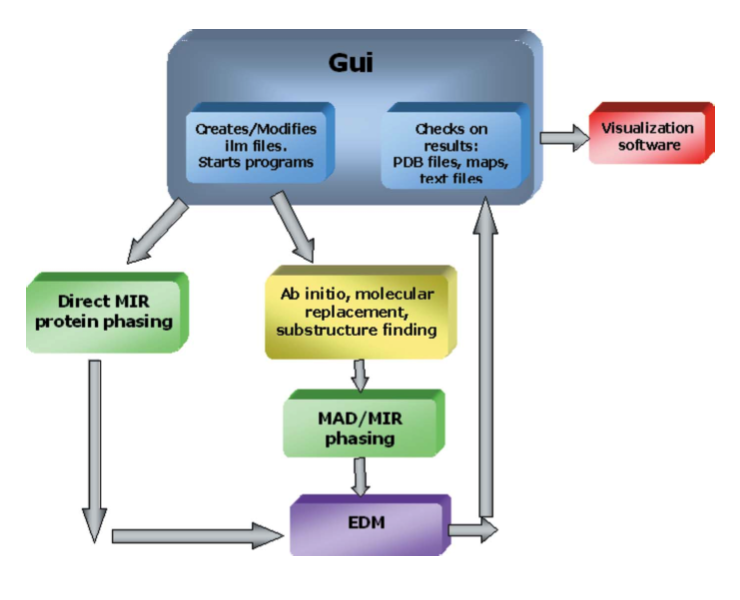

The orientation and the location of the protein molecules are found via reciprocal space methods. Phase extension and reﬁnement are performed by electron density modiﬁcation techniques. All the programs integrated into IL MILIONE are controlled by means of a user-friendly graphical user interface, which is used to input data and to monitor intermediate and ﬁnal results by means of real-time updated messages, diagrams and histograms.

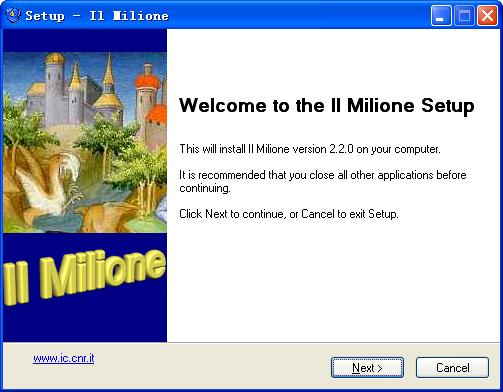

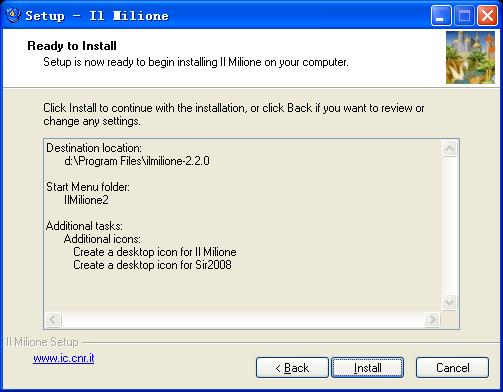

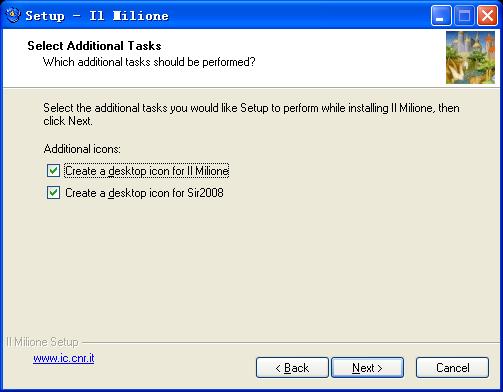

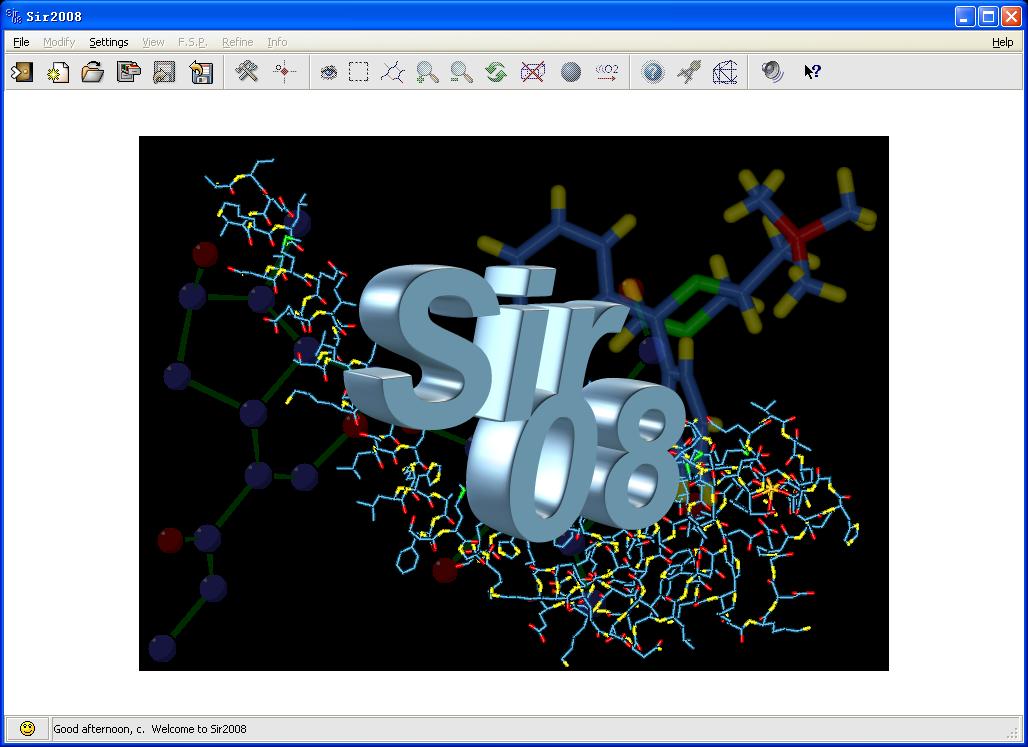

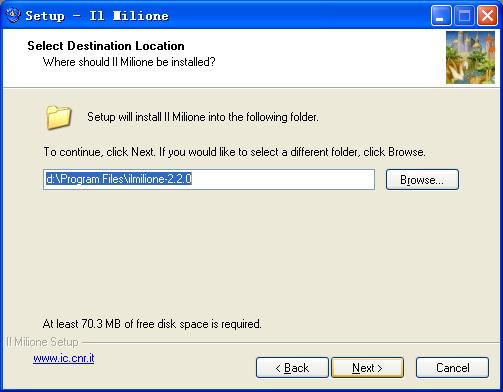

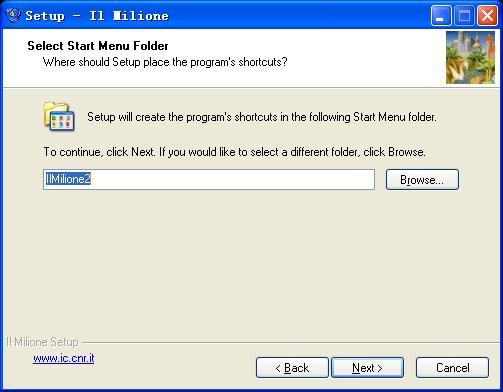

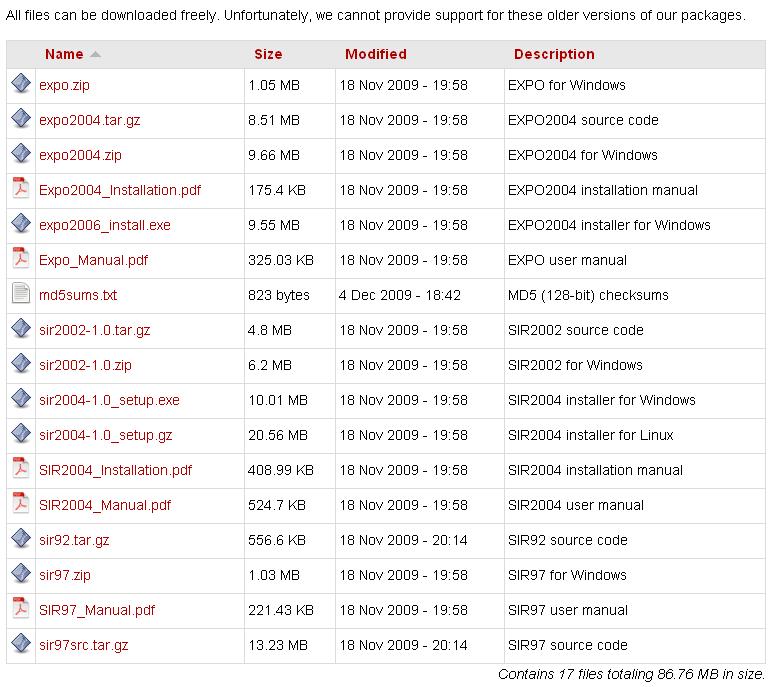

附上几张我的截图：

[ Last edited by 11900490 on 2011-1-5 at 17:43 ]

上传了两个安装文件：

sir2004-1.0_setup.exe

Sir2014-14.07-XPSetup.exe[ Last edited by 11900490 on 2016-6-9 at 09:14 ]

回复此楼

» 本帖附件资源列表

欢迎监督和反馈：小木虫仅提供交流平台，不对该内容负责。
本内容由用户自主发布，如果其内容涉及到知识产权问题，其责任在于用户本人，如对版权有异议，请联系邮箱：xiaomuchong@tal.com
附件 1 : sir2004-1.0_setup.exe

2016-06-09 09:11:29, 10.02 M

附件 2 : Sir2014-14.07-XPSetup.exe

2016-06-09 09:14:06, 40.17 M

1楼 2011-01-05 16:59:34

已阅回复此楼关注TA 给TA发消息送TA红花 TA的回帖

xiaochong98

木虫 (职业作家)

CMEI: 1
应助: 208 (大学生)
金币: 19217.6
帖子: 4720
在线: 667.8小时
虫号: 71782

★★★★★ 五星级,优秀推荐

感觉不如2004好用。

赞一下

回复此楼

2楼2011-01-05 21:18:08

已阅回复此楼关注TA 给TA发消息送TA红花 TA的回帖

wsht212

荣誉版主 (文学泰斗)

引用回帖:

Originally posted by 11900490 at 2011-01-05 16:59:34:
如果你用过SHEXLTL的话。你一定用过WinGX，里面带有的模块包括Sir92，Sir97，Sir2004。有时候这两个软件相互补充能够解决大多数晶体。
Sir家族为意大利IC Crystallography Institute的软件。

Sir2008是个应用 ...
