[求助] matlab gui求助 已有2人参与

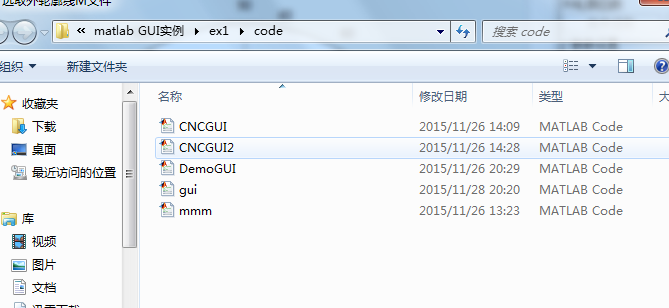

如何创建一个按钮调用M文件，并将显示在显示在一个文本框中，如图点击那个浏览按钮所示。谢谢大家

matlab gui求助


matlab gui求助-1


matlab gui求助-2
回复此楼

» 猜你喜欢

» 本主题相关价值贴推荐，对您同样有帮助:
1楼 2015-11-29 11:54:01
已阅   回复此楼   关注TA 给TA发消息 送TA红花 TA的回帖

achilFes1990

木虫 (著名写手)

【答案】应助回帖

感谢参与，应助指数 +1
先按照帮助文档或者案例做一两个例子吧，这种按钮调用callback函数的例子，大部分参考书里面都有，你照着做就行了

[ 发自手机版 http://muchong.com/3g ]
赞一下 回复此楼
扫一扫关注我的微信公众号，共同学习船舶CFD
2楼2015-11-29 14:24:46
已阅   回复此楼   关注TA 给TA发消息 送TA红花 TA的回帖

望月任

新虫 (小有名气)
引用回帖:
2楼: Originally posted by achilFes1990 at 2015-11-29 14:24:46
先按照帮助文档或者案例做一两个例子吧，这种按钮调用callback函数的例子，大部分参考书里面都有，你照着做就行了

这个就是别人做的例子，我试着他的方法做没做出来，想问问大家怎么做的
赞一下 回复此楼
3楼2015-11-29 14:26:28
已阅   回复此楼   关注TA 给TA发消息 送TA红花 TA的回帖

onelightwang

金虫 (小有名气)

【答案】应助回帖

感谢参与，应助指数 +1
引用回帖:
3楼: Originally posted by 望月任 at 2015-11-29 14:26:28
这个就是别人做的例子，我试着他的方法做没做出来，想问问大家怎么做的...

如果是运行别人的例子，楼主需要注意两个地方：
1.函数中文件的路径是否正确。
2.函数所在路径是否添加到matlab的路径中。
赞一下 回复此楼
4楼2015-11-29 16:14:41
已阅   回复此楼   关注TA 给TA发消息 送TA红花 TA的回帖

望月任

新虫 (小有名气)
引用回帖:
4楼: Originally posted by onelightwang at 2015-11-29 16:14:41
如果是运行别人的例子，楼主需要注意两个地方：
1.函数中文件的路径是否正确。
2.函数所在路径是否添加到matlab的路径中。...

别人的我运行出来了，照着他仿出了点问题
赞一下 回复此楼
5楼2015-11-29 18:36:53
已阅   回复此楼   关注TA 给TA发消息 送TA红花 TA的回帖

帝_尊

木虫 (正式写手)
可能是他的版本和你用的不同

发自小木虫Android客户端
赞一下 回复此楼
6楼2015-11-29 18:37:59
已阅   回复此楼   关注TA 给TA发消息 送TA红花 TA的回帖

onelightwang

金虫 (小有名气)
贴代码

发自小木虫Android客户端
回复此楼

» 本帖已获得的红花（最新10朵）

望月任
7楼2015-11-30 19:20:48
已阅   回复此楼   关注TA 给TA发消息 送TA红花 TA的回帖

望月任

新虫 (小有名气)
引用回帖:
7楼: Originally posted by onelightwang at 2015-11-30 19:20:48
贴代码

function varargout = DemoGUI(varargin)
% DEMOGUI M-file for DemoGUI.fig
%      DEMOGUI, by itself, creates a new DEMOGUI or raises the existing
%      singleton*.
%
%      H = DEMOGUI returns the handle to a new DEMOGUI or the handle to
%      the existing singleton*.
%
%      DEMOGUI('CALLBACK',hObject,eventData,handles,...) calls the local
%      function named CALLBACK in DEMOGUI.M with the given input arguments.
%
%      DEMOGUI('Property','Value',...) creates a new DEMOGUI or raises the
%      existing singleton*.  Starting from the left, property value pairs are
%      applied to the GUI before DemoGUI_OpeningFunction gets called.  An
%      unrecognized property name or invalid value makes property application
%      stop.  All inputs are passed to DemoGUI_OpeningFcn via varargin.
%
%      *See GUI Options on GUIDE's Tools menu.  Choose "GUI allows only one
%      instance to run (singleton)".
%
% See also: GUIDE, GUIDATA, GUIHANDLES

% Edit the above text to modify the response to help DemoGUI

% Last Modified by GUIDE v2.5 16-Apr-2005 18:42:13

% Begin initialization code - DO NOT EDIT
gui_Singleton = 1;
gui_State = struct('gui_Name',       mfilename, ...
                   'gui_Singleton',  gui_Singleton, ...
                   'gui_OpeningFcn', @DemoGUI_OpeningFcn, ...
                   'gui_OutputFcn',  @DemoGUI_OutputFcn, ...
                   'gui_LayoutFcn',  [] , ...
                   'gui_Callback',   []);
if nargin && isstr(varargin{1})
    gui_State.gui_Callback = str2func(varargin{1});
end

if nargout
    [varargout{1:nargout}] = gui_mainfcn(gui_State, varargin{:});
else
    gui_mainfcn(gui_State, varargin{:});
end
% End initialization code - DO NOT EDIT


% --- Executes just before DemoGUI is made visible.
function DemoGUI_OpeningFcn(hObject, eventdata, handles, varargin)
% This function has no output args, see OutputFcn.
% hObject    handle to figure
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
% varargin   command line arguments to DemoGUI (see VARARGIN)

% Choose default command line output for DemoGUI
handles.output = hObject;

% Update handles structure
guidata(hObject, handles);

% UIWAIT makes DemoGUI wait for user response (see UIRESUME)
% uiwait(handles.DemoFig);

% 日期时间显示
set(handles.timestr,'string',datestr(now,0));
htimer = timer('StartDelay',1,'TimerFcn',...
    'htimestr=findall(0,''tag'',''timestr'');set(htimestr,''string'',datestr(now,0));',...
    'Period',1,'ExecutionMode','fixedSpacing','tag','showtime');
start(htimer);

set(hObject,'doublebuffer','on');



% --- Outputs from this function are returned to the command line.
function varargout = DemoGUI_OutputFcn(hObject, eventdata, handles)
% varargout  cell array for returning output args (see VARARGOUT);
% hObject    handle to figure
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Get default command line output from handles structure
varargout{1} = handles.output;



% --- Executes on button press in ExitBtn.
function ExitBtn_Callback(hObject, eventdata, handles)
% hObject    handle to ExitBtn (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

selection = questdlg(['退出 ' get(handles.DemoFig,'Name') '?'],...
                     ['退出 ' get(handles.DemoFig,'Name') '...'],...
                     '是','否','是');
if strcmp(selection,'否')
    return;
end
htimer = timerfind('tag','showtime');
stop(htimer);
delete(htimer);
delete(handles.DemoFig);

% --- Executes on button press in HelpBtn.
function HelpBtn_Callback(hObject, eventdata, handles)
% hObject    handle to HelpBtn (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% str={'对不起，目前尚未完成说明文件';' 打算尽快完善整个系统功能及其使用说明'};
% msgbox(str,'使用帮助','help','non-modal');
!CNCHelp.CHM


% 精插补按钮回调函数
% --- Executes on button press in JinBtn.
function JinBtn_Callback(hObject, eventdata, handles)
% hObject    handle to JinBtn (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% 获取设置的参数值
theta0 = get(handles.startRad,'UserData'); % 外轮廓起始点极角
thetat = get(handles.endRad,'UserData'); % 外轮廓中止点极角
interpTime = get(handles.interpT,'UserData'); % 插补周期 ms
mihuaNum = get(handles.miHuaNum,'UserData'); % 密化点数
jinjiV = get(handles.jinjiV,'UserData'); % 进给速度 mm/min
jinjiV = jinjiV/60; % 进给速度mm/sec
clrjinline = get(handles.clrJin,'BackgroundColor'); % 精插值点线颜色
% 获取外轮廓函数名
filename = get(handles.SelectFcnBtn,'UserData');
if isempty(filename)
    msgbox('没有选取轮廓函数！','操作错误');
    return;
end
[pathstr,fcnname] = fileparts(filename); %获得文件名与路径名
% 判断是顺圆还是逆圆插补,实现不管顺圆还是逆圆都可用（不过只测试了顺圆－－逆时针插补）
if theta0>thetat    % 逆圆
    flag = -1;
else           % 顺圆
    flag = 1;
end
set(gcf,'doublebuffer','on');
axis(handles.axes2); % 设置axes2为当前坐标轴
hjinline = line('color',clrjinline,'marker','.','markersize',4,...
                     'visible','off', 'tag','jinline'); % 创建粗插值线对象
culinedata = getappdata(handles.CuBtn,'culinedata');  % 获取粗插补线数据
cutheta = culinedata(:,1);  % 极角
curho = culinedata(:,2); % 极径
numCu = length(culinedata); % 粗插补点数
theta = [];
r = [];
set(hjinline,'visible','on');
outflag = 0;
% hbar = waitbar(0,'Please wait...','name','精插补进行中');
for k = 1:numCu-1 % 对每段粗插补情况
    tmptheta = cutheta(k); % theta0
    rr0 = curho(k); % rho0
    theta = [theta tmptheta];
    r = [r rr0];
    [xd,yd] = pol2cart(theta,r); % 极坐标变成平面直角坐标
    set(hjinline,'xdata',xd,'ydata',yd);
    for n = 2:mihuaNum % 计算每段粗插补中密化点坐标
        drda = drdtheta(fcnname,tmptheta); % 计算该点的数值微分
        deletatheta = interpTime/1000*jinjiV/(drda^2+rr0^2)^(0.5); % 计算deltatheta
        tmptheta = flag*deletatheta+tmptheta; % 迭代求取下一个极角
        if flag*tmptheta>flag*cutheta(end) % 对于最后一段的特殊处理,因为最后一段可能比以前的短
            tmptheta = cutheta(end); % 是不能够插入num个密化点的
            outflag = 1;
        end
        rr0 = feval(fcnname,tmptheta);
        theta = [theta tmptheta];
        r = [r rr0];
        [xd,yd] = pol2cart(theta,r);
        set(hjinline,'xdata',xd,'ydata',yd);
        if outflag==1
            break;  % 最后一段特殊处理时跳出循环
        end
    end
%     waitbar(k/(numCu-1),hbar);
end
% close(hbar);
theta = [theta cutheta(end)];
r = [r curho(end)];
jinlinedata = [theta( r(];
setappdata(hObject,'jinlinedata',jinlinedata); % 保存精插补线数据到句柄中
set(handles.chkJin,'enable','on'); % 使得显示隐藏线复选框可用
chkLegend_Callback(handles.chkLegend,[], handles);



% 粗插补按钮回调函数
% --- Executes on button press in CuBtn.
function CuBtn_Callback(hObject, eventdata, handles)
% hObject    handle to CuBtn (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% 获取设置的参数值
theta0 = get(handles.startRad,'UserData'); % 外轮廓起始点极角
thetat = get(handles.endRad,'UserData'); % 外轮廓中止点极角
interpTime = get(handles.interpT,'UserData'); % 插补周期 ms
jinjiV = get(handles.jinjiV,'UserData'); % 进给速度 mm/min
jinjiV = jinjiV/60; % 进给速度mm/sec
clrlunline = get(handles.clrLun,'BackgroundColor'); % 轮廓线颜色
clrculine = get(handles.clrCu,'BackgroundColor'); % 粗插值点线颜色

% 获取外轮廓函数名
filename = get(handles.SelectFcnBtn,'UserData');
if isempty(filename)
    msgbox('没有选取轮廓函数！','操作错误');
    return;
end
[pathstr,fcnname] = fileparts(filename);
addpath(pathstr,'-begin');  % 将外轮廓函数所在路径加入matlab路径中

set(handles.chklun,'enable','on'); % 使复选框可用
set(handles.chkLegend,'enable','on'); % 使复选框可用
set(handles.chkCu,'enable','on'); % 使复选框可用

% 绘制外轮廓线
theta = linspace(theta0,thetat,1000);
r = feval(fcnname,theta); % 计算外轮廓
if length(r)~=length(theta)  % 通常是由于外轮廓函数不对造成
    msgbox('外轮廓函数错误','出错了...');
    return;
end
axis(handles.axes2);
hlunline = polar(theta,r);
set(hlunline,'color',clrlunline,'tag','lunline'); % 设置tag以后好用
lundata = [theta( r(];
setappdata(hObject,'lundata',lundata); % 保存轮廓线数据到句柄中
hold on;
hculine = line('color',clrculine,'marker','.','markersize',10,...
                       'tag','culine'); % 粗插值线对象  'erasemode','xor',
hold off;
theta = [];
r = [];
% 判断是顺圆还是逆圆插补,实现不管顺圆还是逆圆都可用（不过只测试了顺圆－－逆时针插补）
if theta0>thetat    % 逆圆
    flag = -1;
else           % 顺圆
    flag = 1;
end
tmptheta = theta0;
while flag*tmptheta<flag*thetat  % 终止判断，考虑了顺圆与逆圆
    rr0 = feval(fcnname,tmptheta); % 计算外轮廓该极角出的极径
    theta = [theta tmptheta];
    r = [r rr0];
    [xd,yd] = pol2cart(theta,r); % 转换为直角坐标系数值
    set(hculine,'xdata',xd,'ydata',yd); % 更新插值点
    drda = drdtheta(fcnname,tmptheta); % 计算该极角处数值微分
    deletatheta = interpTime/1000*jinjiV/(drda^2+rr0^2)^(0.5);
    tmptheta = flag*deletatheta+tmptheta; % 迭代求取下一个点极角
end
rr0 = feval(fcnname,thetat); % 终点加入
theta = [theta thetat];
r = [r rr0];
culinedata = [theta( r(];
setappdata(hObject,'culinedata',culinedata); % 保存粗插补线数据到句柄中

set(handles.ExportDataBtn,'enable','on');
set(handles.JinBtn,'enable','on');
chkLegend_Callback(handles.chkLegend,[], handles); % 调用图例复选框的回掉函数

% --- Executes during object creation, after setting all properties.
function FcnName_CreateFcn(hObject, eventdata, handles)
% hObject    handle to FcnName (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    empty - handles not created until after all CreateFcns called

% Hint: edit controls usually have a white background on Windows.
%       See ISPC and COMPUTER.
if ispc
    set(hObject,'BackgroundColor','white');
else
    set(hObject,'BackgroundColor',get(0,'defaultUicontrolBackgroundColor'));
end




% --- Executes on button press in SelectFcnBtn.
function SelectFcnBtn_Callback(hObject, eventdata, handles)
% hObject    handle to SelectFcnBtn (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

[filename, pathname] = uigetfile('*.m', '选取外轮廓线M文件');
if filename~=0
    set(handles.FcnName,'string',filename);
    set(hObject,'UserData',[pathname filename]);
    set(handles.JinBtn,'enable','off');
    set(handles.ExportDataBtn,'enable','off');
    set(handles.chklun,'enable','off');
    set(handles.chkCu,'enable','off');
    set(handles.chkJin,'enable','off');
    set(handles.chkLegend,'value',0,'enable','off');
    axis(handles.axes2);
    cla
    chkLegend_Callback(handles.chkLegend,[], handles); % 更新图列
else
    set(handles.FcnName,'string','尚未选取');
end


% --- Executes on button press in ExportDataBtn.
function ExportDataBtn_Callback(hObject, eventdata, handles)
% hObject    handle to ExportDataBtn (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
% str={'对不起，目前尚未完成说明文件';' 打算尽快完善整个系统功能及其使用说明'};
% msgbox(str,'使用帮助','help','non-modal');

type = get(handles.dataType,'UserData'); % 获取设置的导出数据格式 1-mat,2-txt,3-dat

% % 获取各种图线的句柄
% hjinline = findobj(0,'tag','jinline');
% hculine = findobj(0,'tag','culine');
% hlunline = findobj(0,'tag','lunline');
% 保存时
% % handles.CuBtn
% setappdata(hObject,'culinedata',culinedata); % 保存粗插补线数据到句柄中
% setappdata(hObject,'lundata',lundata); % 保存轮廓线数据到句柄中
% % handles.JinBtn
% setappdata(hObject,'jinlinedata',jinlinedata); % 保存精插补线数据到句柄中
lundata = getappdata(handles.CuBtn,'lundata');
culinedata = getappdata(handles.CuBtn,'culinedata');
jinlinedata = getappdata(handles.JinBtn,'jinlinedata');

switch type
    case 1,
        [filename, pathname] = uiputfile('*.mat', '保存插补结果');
        if filename==0 % 取消
            return;
        end
        save([pathname filename],'lundata','culinedata','jinlinedata');
    case 2,
        [filename, pathname] = uiputfile('*.txt', '保存插补结果');
        if filename==0
            return;
        end
        [pathstr,filename]=fileparts(filename);
        fid = fopen([pathname filename,'.txt'],'w');
        fprintf(fid,'\n％=================%s=================\r\n',datestr(now,0));
        fprintf(fid,'％原始外轮廓线数据\r\n');
        fprintf(fid,'％ 极角     \t   极径\r\n');
        fprintf(fid,'%8.6f  \t  %8.6f\r\n',lundata');
        fprintf(fid,'％粗插补点数据\r\n');
        fprintf(fid,'％ 极角     \t   极径\r\n');
        fprintf(fid,'%8.6f  \t  %8.6f\r\n',culinedata');
        fprintf(fid,'％精插补点数据\r\n');
        fprintf(fid,'％ 极角     \t   极径\r\n');
        fprintf(fid,'%8.6f  \t  %8.6f\r\n',jinlinedata');
        fclose(fid);
    case 3,
        [filename, pathname] = uiputfile('*.dat', '保存插补结果');
        if filename==0
            return;
        end
        [pathstr,filename]=fileparts(filename);
        save([pathname filename,'.dat'],'lundata','culinedata','jinlinedata','-ascii','-double');
    otherwise,
        msgbox('照道理是不会出现的~');
end






% --- Executes on button press in ResetBtn.
function ResetBtn_Callback(hObject, eventdata, handles)
% hObject    handle to ResetBtn (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% 设置各种参数为默认值
set(handles.startRad,'string','0','UserData',0);
set(handles.endRad,'string','2*pi','UserData',2*pi);
set(handles.miHuaNum,'string','4','UserData',4);
set(handles.interpT,'string','8','UserData',8);
set(handles.jinjiV,'string','4000','UserData',4000);
set(handles.clrLun,'BackgroundColor',[0 0 0]);
set(handles.clrCu,'BackgroundColor',[0 0 1]);
set(handles.clrJin,'BackgroundColor',[1 1 0.5]);
set(handles.dataType,'value',1,'UserData',1);
set(handles.chkLegend,'value',0,'UserData',0);


% --- Executes during object creation, after setting all properties.
function startRad_CreateFcn(hObject, eventdata, handles)
% hObject    handle to startRad (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    empty - handles not created until after all CreateFcns called

% Hint: edit controls usually have a white background on Windows.
%       See ISPC and COMPUTER.
if ispc
    set(hObject,'BackgroundColor','white');
else
    set(hObject,'BackgroundColor',get(0,'defaultUicontrolBackgroundColor'));
end



function startRad_Callback(hObject, eventdata, handles)
% hObject    handle to startRad (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Hints: get(hObject,'String') returns contents of startRad as text
%        str2double(get(hObject,'String')) returns contents of startRad as a double

str = get(hObject,'string');
data = str2num(str);
if isempty(data)  % 输入参数有效性检测
    errordlg('输入必须为数值！','参数错误');
    set(hObject,'BackgroundColor','r');
else
    set(hObject,'BackgroundColor','w');
    set(hObject,'UserData',data);
end


% --- Executes during object creation, after setting all properties.
function endRad_CreateFcn(hObject, eventdata, handles)
% hObject    handle to endRad (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    empty - handles not created until after all CreateFcns called

% Hint: edit controls usually have a white background on Windows.
%       See ISPC and COMPUTER.
if ispc
    set(hObject,'BackgroundColor','white');
else
    set(hObject,'BackgroundColor',get(0,'defaultUicontrolBackgroundColor'));
end



function endRad_Callback(hObject, eventdata, handles)
% hObject    handle to endRad (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Hints: get(hObject,'String') returns contents of endRad as text
%        str2double(get(hObject,'String')) returns contents of endRad as a double

str = get(hObject,'string');
data = str2num(str);
if isempty(data) % 输入参数有效性检测
    errordlg('输入必须为数值！','参数错误');
    set(hObject,'BackgroundColor','r');
else
    set(hObject,'BackgroundColor','w');
    set(hObject,'UserData',data);
end



% --- Executes during object creation, after setting all properties.
function miHuaNum_CreateFcn(hObject, eventdata, handles)
% hObject    handle to miHuaNum (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    empty - handles not created until after all CreateFcns called

% Hint: edit controls usually have a white background on Windows.
%       See ISPC and COMPUTER.
if ispc
    set(hObject,'BackgroundColor','white');
else
    set(hObject,'BackgroundColor',get(0,'defaultUicontrolBackgroundColor'));
end



function miHuaNum_Callback(hObject, eventdata, handles)
% hObject    handle to miHuaNum (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Hints: get(hObject,'String') returns contents of miHuaNum as text
%        str2double(get(hObject,'String')) returns contents of miHuaNum as a double

str = get(hObject,'string');
data = str2num(str);
if isempty(data) % 输入参数有效性检测
    errordlg('输入必须为数值！','参数错误');
    set(hObject,'BackgroundColor','r');
else
    set(hObject,'BackgroundColor','w');
    set(hObject,'UserData',data);
end



% --- Executes during object creation, after setting all properties.
function interpT_CreateFcn(hObject, eventdata, handles)
% hObject    handle to interpT (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    empty - handles not created until after all CreateFcns called

% Hint: edit controls usually have a white background on Windows.
%       See ISPC and COMPUTER.
if ispc
    set(hObject,'BackgroundColor','white');
else
    set(hObject,'BackgroundColor',get(0,'defaultUicontrolBackgroundColor'));
end



function interpT_Callback(hObject, eventdata, handles)
% hObject    handle to interpT (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Hints: get(hObject,'String') returns contents of interpT as text
%        str2double(get(hObject,'String')) returns contents of interpT as a double

str = get(hObject,'string');
data = str2num(str);
if isempty(data) % 输入参数有效性检测
    errordlg('输入必须为数值！','参数错误');
    set(hObject,'BackgroundColor','r');
else
    set(hObject,'BackgroundColor','w');
    set(hObject,'UserData',data);
end



% --- Executes during object creation, after setting all properties.
function jinjiV_CreateFcn(hObject, eventdata, handles)
% hObject    handle to jinjiV (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    empty - handles not created until after all CreateFcns called

% Hint: edit controls usually have a white background on Windows.
%       See ISPC and COMPUTER.
if ispc
    set(hObject,'BackgroundColor','white');
else
    set(hObject,'BackgroundColor',get(0,'defaultUicontrolBackgroundColor'));
end



function jinjiV_Callback(hObject, eventdata, handles)
% hObject    handle to jinjiV (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Hints: get(hObject,'String') returns contents of jinjiV as text
%        str2double(get(hObject,'String')) returns contents of jinjiV as a double

str = get(hObject,'string');
data = str2num(str);
if isempty(data) % 输入参数有效性检测
    errordlg('输入必须为数值！','参数错误');
    set(hObject,'BackgroundColor','r');
else
    set(hObject,'BackgroundColor','w');
    set(hObject,'UserData',data);
end


% --- Executes during object creation, after setting all properties.
function dataType_CreateFcn(hObject, eventdata, handles)
% hObject    handle to dataType (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    empty - handles not created until after all CreateFcns called

% Hint: popupmenu controls usually have a white background on Windows.
%       See ISPC and COMPUTER.
if ispc
    set(hObject,'BackgroundColor','white');
else
    set(hObject,'BackgroundColor',get(0,'defaultUicontrolBackgroundColor'));
end


% --- Executes on selection change in dataType.
function dataType_Callback(hObject, eventdata, handles)
% hObject    handle to dataType (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Hints: contents = get(hObject,'String') returns dataType contents as cell array
%        contents{get(hObject,'Value')} returns selected item from dataType

% 1 - mat; 2 - txt ; 3 - dat
datatype = get(hObject,'Value');
set(hObject,'UserData',datatype);


% --- If Enable == 'on', executes on mouse press in 5 pixel border.
% --- Otherwise, executes on mouse press in 5 pixel border or over clrLun.
function clrLun_ButtonDownFcn(hObject, eventdata, handles)
% hObject    handle to clrLun (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% 颜色设置处理
color = uisetcolor;
if length(color)~=1 % 如果选取了颜色
    set(hObject,'BackgroundColor',color);
    hlunline = findobj(0,'tag','lunline');
    if ~isempty(hlunline) % 如果已绘制图线，则按照设置的颜色更新图线
        set(hlunline,'color',color);
    end
end

% --- If Enable == 'on', executes on mouse press in 5 pixel border.
% --- Otherwise, executes on mouse press in 5 pixel border or over clrJin.
function clrJin_ButtonDownFcn(hObject, eventdata, handles)
% hObject    handle to clrJin (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

color = uisetcolor;
if length(color)~=1
    set(hObject,'BackgroundColor',color);
    hjinline = findobj(0,'tag','jinline');
    if ~isempty(hjinline) % 如果已绘制图线，则按照设置的颜色更新图线
        set(hjinline,'color',color);
    end
end


% --- If Enable == 'on', executes on mouse press in 5 pixel border.
% --- Otherwise, executes on mouse press in 5 pixel border or over clrCu.
function clrCu_ButtonDownFcn(hObject, eventdata, handles)
% hObject    handle to clrCu (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

color = uisetcolor;
if length(color)~=1
    set(hObject,'BackgroundColor',color);
    hculine = findobj(0,'tag','culine');
    if ~isempty(hculine) % 如果已绘制图线，则按照设置的颜色更新图线
        set(hculine,'color',color);
    end
end


% --- Executes on button press in chklun.
function chklun_Callback(hObject, eventdata, handles)
% hObject    handle to chklun (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Hint: get(hObject,'Value') returns toggle state of chklun

% 图线的显示隐藏复选框
val = get(hObject,'Value');
hlunline = findobj(0,'tag','lunline');
if ~isempty(hlunline) % 如果已经绘制图线
    if val==1 % 如果是选中复选框
        set(hlunline,'visible','on'); % 显示
    else
        set(hlunline,'visible','off');
    end
    chkLegend_Callback(handles.chkLegend,[], handles); % 更新图列
end


% --- Executes on button press in chkCu.
function chkCu_Callback(hObject, eventdata, handles)
% hObject    handle to chkCu (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Hint: get(hObject,'Value') returns toggle state of chkCu

val = get(hObject,'Value');
hculine = findobj(0,'tag','culine');
if ~isempty(hculine)
    if val==1
        set(hculine,'visible','on');
    else
        set(hculine,'visible','off');
    end
    chkLegend_Callback(handles.chkLegend,[], handles)
end

% --- Executes on button press in chkJin.
function chkJin_Callback(hObject, eventdata, handles)
% hObject    handle to chkJin (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Hint: get(hObject,'Value') returns toggle state of chkJin

val = get(hObject,'Value');
hjinline = findobj(0,'tag','jinline');
if ~isempty(hjinline)
    if val==1
        set(hjinline,'visible','on');
    else
        set(hjinline,'visible','off');
    end
    chkLegend_Callback(handles.chkLegend,[], handles)
end

% --- Executes on button press in chkLegend.
function chkLegend_Callback(hObject, eventdata, handles)
% hObject    handle to chkLegend (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Hint: get(hObject,'Value') returns toggle state of chkLegend

% 图例复选框的处理
val = get(hObject,'Value');

if val ==1 % 如果选中复选框
    hjinline = findobj(0,'tag','jinline');
    hculine = findobj(0,'tag','culine');
    hlunline = findobj(0,'tag','lunline');

    % 测试是否已经绘制曲线 并且曲线是否可见
    jflag = ~isempty(hjinline) & (get(handles.chkJin,'value'));
    cflag = ~isempty(hculine) & (get(handles.chkCu,'value'));
    lflag = ~isempty(hlunline) & (get(handles.chklun,'value'));
    warning off MATLABeprecatedLogicalAPI % 关闭警告信息，因为lflag等是logical，用num2str有警告
    strflag = [num2str(lflag) num2str(cflag) num2str(jflag)];

    switch strflag
        case '111', % 全部
            legend([hlunline hculine hjinline],'外轮廓线','粗插补点','精插补点',2); % 绘制图例
        case '110' % 不显示精插补
            legend([hlunline hculine],'外轮廓线','粗插补点',2)
        case '101', % 不显示粗插补
            legend([hlunline hjinline],'外轮廓线','精插补点',2)
        case '011', % 不显示轮廓线
            legend([hculine hjinline],'粗插补点','精插补点',2)
        case '100',
            legend(hlunline,'外轮廓线',2)
        case '001',
            legend(hjinline,'精插补点',2)
        case '010',
            legend(hculine,'粗插补点',2)
        otherwise
            legend off % 图例不显示
    end

else
    legend off; % 图例不显示
end







% 采用等节距五点求导公式的中点公式求数值微分
% 这里存在一个问题是，数值微分的时候，h到底如何选取？
% 自动选取的算法是怎么样的？如果要自动选取，速度如何？
function dr = drdtheta( fcnname,theta0)
%
h = 0.001;
theta_2 = theta0 - 2*h;
theta_1 = theta0 - h;
theta1 = theta0 + h;
theta2 = theta0 + 2*h;
theta = [theta_2 theta_1 theta1 theta2];
r = feval(fcnname,theta);
dr = 1/(12*h)*(r(1) - 8*r(2) + 8*r(3) - r(4));
赞一下 回复此楼
8楼2015-11-30 19:42:54
已阅   回复此楼   关注TA 给TA发消息 送TA红花 TA的回帖

望月任

新虫 (小有名气)
引用回帖:
7楼: Originally posted by onelightwang at 2015-11-30 19:20:48
贴代码

function varargout = DemoGUI(varargin)
% DEMOGUI M-file for DemoGUI.fig
%      DEMOGUI, by itself, creates a new DEMOGUI or raises the existing
%      singleton*.
%
%      H = DEMOGUI returns the handle to a new DEMOGUI or the handle to
%      the existing singleton*.
%
%      DEMOGUI('CALLBACK',hObject,eventData,handles,...) calls the local
%      function named CALLBACK in DEMOGUI.M with the given input arguments.
%
%      DEMOGUI('Property','Value',...) creates a new DEMOGUI or raises the
%      existing singleton*.  Starting from the left, property value pairs are
%      applied to the GUI before DemoGUI_OpeningFunction gets called.  An
%      unrecognized property name or invalid value makes property application
%      stop.  All inputs are passed to DemoGUI_OpeningFcn via varargin.
%
%      *See GUI Options on GUIDE's Tools menu.  Choose "GUI allows only one
%      instance to run (singleton)".
%
% See also: GUIDE, GUIDATA, GUIHANDLES

% Edit the above text to modify the response to help DemoGUI

% Last Modified by GUIDE v2.5 16-Apr-2005 18:42:13

% Begin initialization code - DO NOT EDIT
gui_Singleton = 1;
gui_State = struct('gui_Name',       mfilename, ...
                   'gui_Singleton',  gui_Singleton, ...
                   'gui_OpeningFcn', @DemoGUI_OpeningFcn, ...
                   'gui_OutputFcn',  @DemoGUI_OutputFcn, ...
                   'gui_LayoutFcn',  [] , ...
                   'gui_Callback',   []);
if nargin && isstr(varargin{1})
    gui_State.gui_Callback = str2func(varargin{1});
end

if nargout
    [varargout{1:nargout}] = gui_mainfcn(gui_State, varargin{:});
else
    gui_mainfcn(gui_State, varargin{:});
end
% End initialization code - DO NOT EDIT


% --- Executes just before DemoGUI is made visible.
function DemoGUI_OpeningFcn(hObject, eventdata, handles, varargin)
% This function has no output args, see OutputFcn.
% hObject    handle to figure
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
% varargin   command line arguments to DemoGUI (see VARARGIN)

% Choose default command line output for DemoGUI
handles.output = hObject;

% Update handles structure
guidata(hObject, handles);

% UIWAIT makes DemoGUI wait for user response (see UIRESUME)
% uiwait(handles.DemoFig);

% 日期时间显示
set(handles.timestr,'string',datestr(now,0));
htimer = timer('StartDelay',1,'TimerFcn',...
    'htimestr=findall(0,''tag'',''timestr'');set(htimestr,''string'',datestr(now,0));',...
    'Period',1,'ExecutionMode','fixedSpacing','tag','showtime');
start(htimer);

set(hObject,'doublebuffer','on');



% --- Outputs from this function are returned to the command line.
function varargout = DemoGUI_OutputFcn(hObject, eventdata, handles)
% varargout  cell array for returning output args (see VARARGOUT);
% hObject    handle to figure
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Get default command line output from handles structure
varargout{1} = handles.output;



% --- Executes on button press in ExitBtn.
function ExitBtn_Callback(hObject, eventdata, handles)
% hObject    handle to ExitBtn (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

selection = questdlg(['退出 ' get(handles.DemoFig,'Name') '?'],...
                     ['退出 ' get(handles.DemoFig,'Name') '...'],...
                     '是','否','是');
if strcmp(selection,'否')
    return;
end
htimer = timerfind('tag','showtime');
stop(htimer);
delete(htimer);
delete(handles.DemoFig);

% --- Executes on button press in HelpBtn.
function HelpBtn_Callback(hObject, eventdata, handles)
% hObject    handle to HelpBtn (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% str={'对不起，目前尚未完成说明文件';' 打算尽快完善整个系统功能及其使用说明'};
% msgbox(str,'使用帮助','help','non-modal');
!CNCHelp.CHM


% 精插补按钮回调函数
% --- Executes on button press in JinBtn.
function JinBtn_Callback(hObject, eventdata, handles)
% hObject    handle to JinBtn (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% 获取设置的参数值
theta0 = get(handles.startRad,'UserData'); % 外轮廓起始点极角
thetat = get(handles.endRad,'UserData'); % 外轮廓中止点极角
interpTime = get(handles.interpT,'UserData'); % 插补周期 ms
mihuaNum = get(handles.miHuaNum,'UserData'); % 密化点数
jinjiV = get(handles.jinjiV,'UserData'); % 进给速度 mm/min
jinjiV = jinjiV/60; % 进给速度mm/sec
clrjinline = get(handles.clrJin,'BackgroundColor'); % 精插值点线颜色
% 获取外轮廓函数名
filename = get(handles.SelectFcnBtn,'UserData');
if isempty(filename)
    msgbox('没有选取轮廓函数！','操作错误');
    return;
end
[pathstr,fcnname] = fileparts(filename); %获得文件名与路径名
% 判断是顺圆还是逆圆插补,实现不管顺圆还是逆圆都可用（不过只测试了顺圆－－逆时针插补）
if theta0>thetat    % 逆圆
    flag = -1;
else           % 顺圆
    flag = 1;
end
set(gcf,'doublebuffer','on');
axis(handles.axes2); % 设置axes2为当前坐标轴
hjinline = line('color',clrjinline,'marker','.','markersize',4,...
                     'visible','off', 'tag','jinline'); % 创建粗插值线对象
culinedata = getappdata(handles.CuBtn,'culinedata');  % 获取粗插补线数据
cutheta = culinedata(:,1);  % 极角
curho = culinedata(:,2); % 极径
numCu = length(culinedata); % 粗插补点数
theta = [];
r = [];
set(hjinline,'visible','on');
outflag = 0;
% hbar = waitbar(0,'Please wait...','name','精插补进行中');
for k = 1:numCu-1 % 对每段粗插补情况
    tmptheta = cutheta(k); % theta0
    rr0 = curho(k); % rho0
    theta = [theta tmptheta];
    r = [r rr0];
    [xd,yd] = pol2cart(theta,r); % 极坐标变成平面直角坐标
    set(hjinline,'xdata',xd,'ydata',yd);
    for n = 2:mihuaNum % 计算每段粗插补中密化点坐标
        drda = drdtheta(fcnname,tmptheta); % 计算该点的数值微分
        deletatheta = interpTime/1000*jinjiV/(drda^2+rr0^2)^(0.5); % 计算deltatheta
        tmptheta = flag*deletatheta+tmptheta; % 迭代求取下一个极角
        if flag*tmptheta>flag*cutheta(end) % 对于最后一段的特殊处理,因为最后一段可能比以前的短
            tmptheta = cutheta(end); % 是不能够插入num个密化点的
            outflag = 1;
        end
        rr0 = feval(fcnname,tmptheta);
        theta = [theta tmptheta];
        r = [r rr0];
        [xd,yd] = pol2cart(theta,r);
        set(hjinline,'xdata',xd,'ydata',yd);
        if outflag==1
            break;  % 最后一段特殊处理时跳出循环
        end
    end
%     waitbar(k/(numCu-1),hbar);
end
% close(hbar);
theta = [theta cutheta(end)];
r = [r curho(end)];
jinlinedata = [theta( r(];
setappdata(hObject,'jinlinedata',jinlinedata); % 保存精插补线数据到句柄中
set(handles.chkJin,'enable','on'); % 使得显示隐藏线复选框可用
chkLegend_Callback(handles.chkLegend,[], handles);



% 粗插补按钮回调函数
% --- Executes on button press in CuBtn.
function CuBtn_Callback(hObject, eventdata, handles)
% hObject    handle to CuBtn (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% 获取设置的参数值
theta0 = get(handles.startRad,'UserData'); % 外轮廓起始点极角
thetat = get(handles.endRad,'UserData'); % 外轮廓中止点极角
interpTime = get(handles.interpT,'UserData'); % 插补周期 ms
jinjiV = get(handles.jinjiV,'UserData'); % 进给速度 mm/min
jinjiV = jinjiV/60; % 进给速度mm/sec
clrlunline = get(handles.clrLun,'BackgroundColor'); % 轮廓线颜色
clrculine = get(handles.clrCu,'BackgroundColor'); % 粗插值点线颜色

% 获取外轮廓函数名
filename = get(handles.SelectFcnBtn,'UserData');
if isempty(filename)
    msgbox('没有选取轮廓函数！','操作错误');
    return;
end
[pathstr,fcnname] = fileparts(filename);
addpath(pathstr,'-begin');  % 将外轮廓函数所在路径加入matlab路径中

set(handles.chklun,'enable','on'); % 使复选框可用
set(handles.chkLegend,'enable','on'); % 使复选框可用
set(handles.chkCu,'enable','on'); % 使复选框可用

% 绘制外轮廓线
theta = linspace(theta0,thetat,1000);
r = feval(fcnname,theta); % 计算外轮廓
if length(r)~=length(theta)  % 通常是由于外轮廓函数不对造成
    msgbox('外轮廓函数错误','出错了...');
    return;
end
axis(handles.axes2);
hlunline = polar(theta,r);
set(hlunline,'color',clrlunline,'tag','lunline'); % 设置tag以后好用
lundata = [theta( r(];
setappdata(hObject,'lundata',lundata); % 保存轮廓线数据到句柄中
hold on;
hculine = line('color',clrculine,'marker','.','markersize',10,...
                       'tag','culine'); % 粗插值线对象  'erasemode','xor',
hold off;
theta = [];
r = [];
% 判断是顺圆还是逆圆插补,实现不管顺圆还是逆圆都可用（不过只测试了顺圆－－逆时针插补）
if theta0>thetat    % 逆圆
    flag = -1;
else           % 顺圆
    flag = 1;
end
tmptheta = theta0;
while flag*tmptheta<flag*thetat  % 终止判断，考虑了顺圆与逆圆
    rr0 = feval(fcnname,tmptheta); % 计算外轮廓该极角出的极径
    theta = [theta tmptheta];
    r = [r rr0];
    [xd,yd] = pol2cart(theta,r); % 转换为直角坐标系数值
    set(hculine,'xdata',xd,'ydata',yd); % 更新插值点
    drda = drdtheta(fcnname,tmptheta); % 计算该极角处数值微分
    deletatheta = interpTime/1000*jinjiV/(drda^2+rr0^2)^(0.5);
    tmptheta = flag*deletatheta+tmptheta; % 迭代求取下一个点极角
end
rr0 = feval(fcnname,thetat); % 终点加入
theta = [theta thetat];
r = [r rr0];
culinedata = [theta( r(];
setappdata(hObject,'culinedata',culinedata); % 保存粗插补线数据到句柄中

set(handles.ExportDataBtn,'enable','on');
set(handles.JinBtn,'enable','on');
chkLegend_Callback(handles.chkLegend,[], handles); % 调用图例复选框的回掉函数

% --- Executes during object creation, after setting all properties.
function FcnName_CreateFcn(hObject, eventdata, handles)
% hObject    handle to FcnName (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    empty - handles not created until after all CreateFcns called

% Hint: edit controls usually have a white background on Windows.
%       See ISPC and COMPUTER.
if ispc
    set(hObject,'BackgroundColor','white');
else
    set(hObject,'BackgroundColor',get(0,'defaultUicontrolBackgroundColor'));
end




% --- Executes on button press in SelectFcnBtn.
function SelectFcnBtn_Callback(hObject, eventdata, handles)
% hObject    handle to SelectFcnBtn (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

[filename, pathname] = uigetfile('*.m', '选取外轮廓线M文件');
if filename~=0
    set(handles.FcnName,'string',filename);
    set(hObject,'UserData',[pathname filename]);
    set(handles.JinBtn,'enable','off');
    set(handles.ExportDataBtn,'enable','off');
    set(handles.chklun,'enable','off');
    set(handles.chkCu,'enable','off');
    set(handles.chkJin,'enable','off');
    set(handles.chkLegend,'value',0,'enable','off');
    axis(handles.axes2);
    cla
    chkLegend_Callback(handles.chkLegend,[], handles); % 更新图列
else
    set(handles.FcnName,'string','尚未选取');
end


% --- Executes on button press in ExportDataBtn.
function ExportDataBtn_Callback(hObject, eventdata, handles)
% hObject    handle to ExportDataBtn (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
% str={'对不起，目前尚未完成说明文件';' 打算尽快完善整个系统功能及其使用说明'};
% msgbox(str,'使用帮助','help','non-modal');

type = get(handles.dataType,'UserData'); % 获取设置的导出数据格式 1-mat,2-txt,3-dat

% % 获取各种图线的句柄
% hjinline = findobj(0,'tag','jinline');
% hculine = findobj(0,'tag','culine');
% hlunline = findobj(0,'tag','lunline');
% 保存时
% % handles.CuBtn
% setappdata(hObject,'culinedata',culinedata); % 保存粗插补线数据到句柄中
% setappdata(hObject,'lundata',lundata); % 保存轮廓线数据到句柄中
% % handles.JinBtn
% setappdata(hObject,'jinlinedata',jinlinedata); % 保存精插补线数据到句柄中
lundata = getappdata(handles.CuBtn,'lundata');
culinedata = getappdata(handles.CuBtn,'culinedata');
jinlinedata = getappdata(handles.JinBtn,'jinlinedata');

switch type
    case 1,
        [filename, pathname] = uiputfile('*.mat', '保存插补结果');
        if filename==0 % 取消
            return;
        end
        save([pathname filename],'lundata','culinedata','jinlinedata');
    case 2,
        [filename, pathname] = uiputfile('*.txt', '保存插补结果');
        if filename==0
            return;
        end
        [pathstr,filename]=fileparts(filename);
        fid = fopen([pathname filename,'.txt'],'w');
        fprintf(fid,'\n％=================%s=================\r\n',datestr(now,0));
        fprintf(fid,'％原始外轮廓线数据\r\n');
        fprintf(fid,'％ 极角     \t   极径\r\n');
        fprintf(fid,'%8.6f  \t  %8.6f\r\n',lundata');
        fprintf(fid,'％粗插补点数据\r\n');
        fprintf(fid,'％ 极角     \t   极径\r\n');
        fprintf(fid,'%8.6f  \t  %8.6f\r\n',culinedata');
        fprintf(fid,'％精插补点数据\r\n');
        fprintf(fid,'％ 极角     \t   极径\r\n');
        fprintf(fid,'%8.6f  \t  %8.6f\r\n',jinlinedata');
        fclose(fid);
    case 3,
        [filename, pathname] = uiputfile('*.dat', '保存插补结果');
        if filename==0
            return;
        end
        [pathstr,filename]=fileparts(filename);
        save([pathname filename,'.dat'],'lundata','culinedata','jinlinedata','-ascii','-double');
    otherwise,
        msgbox('照道理是不会出现的~');
end






% --- Executes on button press in ResetBtn.
function ResetBtn_Callback(hObject, eventdata, handles)
% hObject    handle to ResetBtn (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% 设置各种参数为默认值
set(handles.startRad,'string','0','UserData',0);
set(handles.endRad,'string','2*pi','UserData',2*pi);
set(handles.miHuaNum,'string','4','UserData',4);
set(handles.interpT,'string','8','UserData',8);
set(handles.jinjiV,'string','4000','UserData',4000);
set(handles.clrLun,'BackgroundColor',[0 0 0]);
set(handles.clrCu,'BackgroundColor',[0 0 1]);
set(handles.clrJin,'BackgroundColor',[1 1 0.5]);
set(handles.dataType,'value',1,'UserData',1);
set(handles.chkLegend,'value',0,'UserData',0);


% --- Executes during object creation, after setting all properties.
function startRad_CreateFcn(hObject, eventdata, handles)
% hObject    handle to startRad (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    empty - handles not created until after all CreateFcns called

% Hint: edit controls usually have a white background on Windows.
%       See ISPC and COMPUTER.
if ispc
    set(hObject,'BackgroundColor','white');
else
    set(hObject,'BackgroundColor',get(0,'defaultUicontrolBackgroundColor'));
end



function startRad_Callback(hObject, eventdata, handles)
% hObject    handle to startRad (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Hints: get(hObject,'String') returns contents of startRad as text
%        str2double(get(hObject,'String')) returns contents of startRad as a double

str = get(hObject,'string');
data = str2num(str);
if isempty(data)  % 输入参数有效性检测
    errordlg('输入必须为数值！','参数错误');
    set(hObject,'BackgroundColor','r');
else
    set(hObject,'BackgroundColor','w');
    set(hObject,'UserData',data);
end


% --- Executes during object creation, after setting all properties.
function endRad_CreateFcn(hObject, eventdata, handles)
% hObject    handle to endRad (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    empty - handles not created until after all CreateFcns called

% Hint: edit controls usually have a white background on Windows.
%       See ISPC and COMPUTER.
if ispc
    set(hObject,'BackgroundColor','white');
else
    set(hObject,'BackgroundColor',get(0,'defaultUicontrolBackgroundColor'));
end



function endRad_Callback(hObject, eventdata, handles)
% hObject    handle to endRad (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Hints: get(hObject,'String') returns contents of endRad as text
%        str2double(get(hObject,'String')) returns contents of endRad as a double

str = get(hObject,'string');
data = str2num(str);
if isempty(data) % 输入参数有效性检测
    errordlg('输入必须为数值！','参数错误');
    set(hObject,'BackgroundColor','r');
else
    set(hObject,'BackgroundColor','w');
    set(hObject,'UserData',data);
end



% --- Executes during object creation, after setting all properties.
function miHuaNum_CreateFcn(hObject, eventdata, handles)
% hObject    handle to miHuaNum (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    empty - handles not created until after all CreateFcns called

% Hint: edit controls usually have a white background on Windows.
%       See ISPC and COMPUTER.
if ispc
    set(hObject,'BackgroundColor','white');
else
    set(hObject,'BackgroundColor',get(0,'defaultUicontrolBackgroundColor'));
end



function miHuaNum_Callback(hObject, eventdata, handles)
% hObject    handle to miHuaNum (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Hints: get(hObject,'String') returns contents of miHuaNum as text
%        str2double(get(hObject,'String')) returns contents of miHuaNum as a double

str = get(hObject,'string');
data = str2num(str);
if isempty(data) % 输入参数有效性检测
    errordlg('输入必须为数值！','参数错误');
    set(hObject,'BackgroundColor','r');
else
    set(hObject,'BackgroundColor','w');
    set(hObject,'UserData',data);
end



% --- Executes during object creation, after setting all properties.
function interpT_CreateFcn(hObject, eventdata, handles)
% hObject    handle to interpT (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    empty - handles not created until after all CreateFcns called

% Hint: edit controls usually have a white background on Windows.
%       See ISPC and COMPUTER.
if ispc
    set(hObject,'BackgroundColor','white');
else
    set(hObject,'BackgroundColor',get(0,'defaultUicontrolBackgroundColor'));
end



function interpT_Callback(hObject, eventdata, handles)
% hObject    handle to interpT (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Hints: get(hObject,'String') returns contents of interpT as text
%        str2double(get(hObject,'String')) returns contents of interpT as a double

str = get(hObject,'string');
data = str2num(str);
if isempty(data) % 输入参数有效性检测
    errordlg('输入必须为数值！','参数错误');
    set(hObject,'BackgroundColor','r');
else
    set(hObject,'BackgroundColor','w');
    set(hObject,'UserData',data);
end



% --- Executes during object creation, after setting all properties.
function jinjiV_CreateFcn(hObject, eventdata, handles)
% hObject    handle to jinjiV (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    empty - handles not created until after all CreateFcns called

% Hint: edit controls usually have a white background on Windows.
%       See ISPC and COMPUTER.
if ispc
    set(hObject,'BackgroundColor','white');
else
    set(hObject,'BackgroundColor',get(0,'defaultUicontrolBackgroundColor'));
end



function jinjiV_Callback(hObject, eventdata, handles)
% hObject    handle to jinjiV (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Hints: get(hObject,'String') returns contents of jinjiV as text
%        str2double(get(hObject,'String')) returns contents of jinjiV as a double

str = get(hObject,'string');
data = str2num(str);
if isempty(data) % 输入参数有效性检测
    errordlg('输入必须为数值！','参数错误');
    set(hObject,'BackgroundColor','r');
else
    set(hObject,'BackgroundColor','w');
    set(hObject,'UserData',data);
end


% --- Executes during object creation, after setting all properties.
function dataType_CreateFcn(hObject, eventdata, handles)
% hObject    handle to dataType (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    empty - handles not created until after all CreateFcns called

% Hint: popupmenu controls usually have a white background on Windows.
%       See ISPC and COMPUTER.
if ispc
    set(hObject,'BackgroundColor','white');
else
    set(hObject,'BackgroundColor',get(0,'defaultUicontrolBackgroundColor'));
end


% --- Executes on selection change in dataType.
function dataType_Callback(hObject, eventdata, handles)
% hObject    handle to dataType (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Hints: contents = get(hObject,'String') returns dataType contents as cell array
%        contents{get(hObject,'Value')} returns selected item from dataType

% 1 - mat; 2 - txt ; 3 - dat
datatype = get(hObject,'Value');
set(hObject,'UserData',datatype);


% --- If Enable == 'on', executes on mouse press in 5 pixel border.
% --- Otherwise, executes on mouse press in 5 pixel border or over clrLun.
function clrLun_ButtonDownFcn(hObject, eventdata, handles)
% hObject    handle to clrLun (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% 颜色设置处理
color = uisetcolor;
if length(color)~=1 % 如果选取了颜色
    set(hObject,'BackgroundColor',color);
    hlunline = findobj(0,'tag','lunline');
    if ~isempty(hlunline) % 如果已绘制图线，则按照设置的颜色更新图线
        set(hlunline,'color',color);
    end
end

% --- If Enable == 'on', executes on mouse press in 5 pixel border.
% --- Otherwise, executes on mouse press in 5 pixel border or over clrJin.
function clrJin_ButtonDownFcn(hObject, eventdata, handles)
% hObject    handle to clrJin (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

color = uisetcolor;
if length(color)~=1
    set(hObject,'BackgroundColor',color);
    hjinline = findobj(0,'tag','jinline');
    if ~isempty(hjinline) % 如果已绘制图线，则按照设置的颜色更新图线
        set(hjinline,'color',color);
    end
end


% --- If Enable == 'on', executes on mouse press in 5 pixel border.
% --- Otherwise, executes on mouse press in 5 pixel border or over clrCu.
function clrCu_ButtonDownFcn(hObject, eventdata, handles)
% hObject    handle to clrCu (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

color = uisetcolor;
if length(color)~=1
    set(hObject,'BackgroundColor',color);
    hculine = findobj(0,'tag','culine');
    if ~isempty(hculine) % 如果已绘制图线，则按照设置的颜色更新图线
        set(hculine,'color',color);
    end
end


% --- Executes on button press in chklun.
function chklun_Callback(hObject, eventdata, handles)
% hObject    handle to chklun (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Hint: get(hObject,'Value') returns toggle state of chklun

% 图线的显示隐藏复选框
val = get(hObject,'Value');
hlunline = findobj(0,'tag','lunline');
if ~isempty(hlunline) % 如果已经绘制图线
    if val==1 % 如果是选中复选框
        set(hlunline,'visible','on'); % 显示
    else
        set(hlunline,'visible','off');
    end
    chkLegend_Callback(handles.chkLegend,[], handles); % 更新图列
end


% --- Executes on button press in chkCu.
function chkCu_Callback(hObject, eventdata, handles)
% hObject    handle to chkCu (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Hint: get(hObject,'Value') returns toggle state of chkCu

val = get(hObject,'Value');
hculine = findobj(0,'tag','culine');
if ~isempty(hculine)
    if val==1
        set(hculine,'visible','on');
    else
        set(hculine,'visible','off');
    end
    chkLegend_Callback(handles.chkLegend,[], handles)
end

% --- Executes on button press in chkJin.
function chkJin_Callback(hObject, eventdata, handles)
% hObject    handle to chkJin (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Hint: get(hObject,'Value') returns toggle state of chkJin

val = get(hObject,'Value');
hjinline = findobj(0,'tag','jinline');
if ~isempty(hjinline)
    if val==1
        set(hjinline,'visible','on');
    else
        set(hjinline,'visible','off');
    end
    chkLegend_Callback(handles.chkLegend,[], handles)
end

% --- Executes on button press in chkLegend.
function chkLegend_Callback(hObject, eventdata, handles)
% hObject    handle to chkLegend (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Hint: get(hObject,'Value') returns toggle state of chkLegend

% 图例复选框的处理
val = get(hObject,'Value');

if val ==1 % 如果选中复选框
    hjinline = findobj(0,'tag','jinline');
    hculine = findobj(0,'tag','culine');
    hlunline = findobj(0,'tag','lunline');

    % 测试是否已经绘制曲线 并且曲线是否可见
    jflag = ~isempty(hjinline) & (get(handles.chkJin,'value'));
    cflag = ~isempty(hculine) & (get(handles.chkCu,'value'));
    lflag = ~isempty(hlunline) & (get(handles.chklun,'value'));
    warning off MATLABeprecatedLogicalAPI % 关闭警告信息，因为lflag等是logical，用num2str有警告
    strflag = [num2str(lflag) num2str(cflag) num2str(jflag)];

    switch strflag
        case '111', % 全部
            legend([hlunline hculine hjinline],'外轮廓线','粗插补点','精插补点',2); % 绘制图例
        case '110' % 不显示精插补
            legend([hlunline hculine],'外轮廓线','粗插补点',2)
        case '101', % 不显示粗插补
            legend([hlunline hjinline],'外轮廓线','精插补点',2)
        case '011', % 不显示轮廓线
            legend([hculine hjinline],'粗插补点','精插补点',2)
        case '100',
            legend(hlunline,'外轮廓线',2)
        case '001',
            legend(hjinline,'精插补点',2)
        case '010',
            legend(hculine,'粗插补点',2)
        otherwise
            legend off % 图例不显示
    end

else
    legend off; % 图例不显示
end







% 采用等节距五点求导公式的中点公式求数值微分
% 这里存在一个问题是，数值微分的时候，h到底如何选取？
% 自动选取的算法是怎么样的？如果要自动选取，速度如何？
function dr = drdtheta( fcnname,theta0)
%
h = 0.001;
theta_2 = theta0 - 2*h;
theta_1 = theta0 - h;
theta1 = theta0 + h;
theta2 = theta0 + 2*h;
theta = [theta_2 theta_1 theta1 theta2];
r = feval(fcnname,theta);
dr = 1/(12*h)*(r(1) - 8*r(2) + 8*r(3) - r(4));
赞一下 回复此楼
9楼2015-11-30 19:43:42
已阅   回复此楼   关注TA 给TA发消息 送TA红花 TA的回帖

望月任

新虫 (小有名气)
送红花一朵
引用回帖:
7楼: Originally posted by onelightwang at 2015-11-30 19:20:48
贴代码

直接给代码会有乱码，给你附件吧，谢谢
赞一下 回复此楼

» 本帖附件资源列表

  • 欢迎监督和反馈：小木虫仅提供交流平台，不对该内容负责。
    本内容由用户自主发布，如果其内容涉及到知识产权问题，其责任在于用户本人，如对版权有异议，请联系邮箱：xiaomuchong@tal.com
  • 附件 1 : DemoGUI.m
    • 2015-11-30 19:45:12, 27.36 K
10楼2015-11-30 19:46:03
已阅   回复此楼   关注TA 给TA发消息 送TA红花 TA的回帖
相关版块跳转 我要订阅楼主 望月任 的主题更新
141/2返回列表12下一页
普通表情 龙 兔 虎 猫
最具人气热帖推荐 [查看全部] 作者 回/看 最后发表
[考研] 材料专硕306英一数二 +4 z1z2z3879 2026-03-16 4/200 2026-03-16 13:53 by laoshidan
[考研] 0703 物理化学调剂 +3 我可以上岸的对� 2026-03-13 5/250 2026-03-16 10:50 by 我可以上岸的对�
[考研] 297一志愿上交085600求调剂 +5 指尖八千里 2026-03-14 5/250 2026-03-14 17:26 by a不易
[考研] 一志愿哈工大材料324分求调剂 +5 闫旭东 2026-03-14 5/250 2026-03-14 14:53 by 木瓜膏
[考研] 330求调剂 +3 ?酱给调剂跪了 2026-03-13 3/150 2026-03-14 10:13 by JourneyLucky
[考研] 341求调剂 +4 番茄头--- 2026-03-10 4/200 2026-03-13 23:12 by JourneyLucky
[考研] 341求调剂 +3 番茄头--- 2026-03-10 3/150 2026-03-13 23:07 by JourneyLucky
[考研] 求调剂（材料与化工327） +4 爱吃香菜啦 2026-03-11 4/200 2026-03-13 22:11 by JourneyLucky
[考研] 336求调剂 +6 Iuruoh 2026-03-11 6/300 2026-03-13 22:06 by JourneyLucky
[考研] 材料与化工085600调剂求老师收留 +9 jiaanl 2026-03-11 9/450 2026-03-13 20:22 by JourneyLucky
[考研] 【考研调剂求收留】 +3 Ceciilia 2026-03-11 3/150 2026-03-13 20:18 by JourneyLucky
[考研] 302求调剂 +6 负心者当诛 2026-03-11 6/300 2026-03-13 16:11 by JourneyLucky
[考研] 295求调剂 +3 小匕仔汁 2026-03-12 3/150 2026-03-13 15:17 by vgtyfty
[考研] 一志愿山大07化学 332分 四六级已过 本科山东双非 求调剂！ +3 不想理你 2026-03-12 3/150 2026-03-13 14:18 by JourneyLucky
[考研] 289求调剂 +3 李政莹 2026-03-12 3/150 2026-03-13 11:02 by 求调剂zz
[考研] 081200-11408-276学硕求调剂 +3 崔wj 2026-03-12 4/200 2026-03-12 19:33 by 求调剂zz
[考博] 2026年博士申请 +3 QwQwQW10 2026-03-11 3/150 2026-03-12 17:58 by gxch43
[考研] 298求调剂 +3 Vv呀！ 2026-03-10 3/150 2026-03-10 22:40 by 剑诗杜康
[考研] 0856材料与化工353分求调剂 +11 NIFFFfff 2026-03-09 11/550 2026-03-10 18:36 by suyuanhai
[考研] 085602化工求调剂 +7 董boxing 2026-03-10 7/350 2026-03-10 17:07 by BruceLiu320
信息提示
关闭
请填处理意见
关闭
