[求助] 求助V2O5的标准卡片 JCPDS no. 41-1426和81-0612的数据啊~谢谢啦已有1人参与

V2O5的标准卡片 JCPDS no. 41-1426和81-0612，需要其txt格式的数据，求帮忙。。。

回复此楼

» 猜你喜欢

» 本主题相关价值贴推荐，对您同样有帮助:

急求这个（JCPDS, No. 54-0344）PDF卡片的标准数据！已经有1人回复
求助Bi2WO6标准卡片JCPDS no.73-1126 已经有3人回复
跪求XRD标准卡片，JCPDS 标准卡片(No.85-0712) ——SnO的已经有3人回复
跪求这个（JCPDS, No. 77-0435）PDF卡片的标准数据！已经有3人回复
求xrd的两个标准卡片(JCPDS card no.70-1193) 和 (ICCD card no.01-076-3258) 已经有5人回复
求助碳化钼（Mo2C）的JCPDS 卡片，（JCPDS no 35-787，JCPDS 15-457或者其他的）已经有4人回复
求助 α-Ni(OH)2 (JCPDS card No.38–0715) 的CIF文件已经有4人回复
【求助】求 JCPDS No. 10-0454 立方CdS和MoO3的晶格常数和原子坐标已经有4人回复
【求助】JCPDS No47-1070 已经有5人回复

1楼2014-06-03 11:37:00

已阅回复此楼关注TA 给TA发消息送TA红花 TA的回帖

xhtangxh

木虫 (著名写手)

有木有虫

CMEI: 6
应助: 773 (博后)
金币: 17832.4
红花: 107
帖子: 2676
在线: 599.3小时
虫号: 428580
注册: 2007-08-04
专业: 催化化学

【答案】应助回帖

感谢参与，应助指数 +1

PDF#41-1426: QM=Common(+); d=Diffractometer; I=(Unknown)
Shcherbinaite, syn
V2O5
Radiation=CuKa1 Lambda=1.5406 Filter=
Calibration= 2T=15.349-78.174 I/Ic(RIR)=1.6
Ref: Level-1 PDF

Orthorhombic,  Pmmn(59) Z=2 mp=
CELL: 11.516 x 3.5656 x 4.3727 <90.0 x 90.0 x 90.0> P.S=
Density(c)=3.32 Density(m)= Mwt= Vol=179.6
Ref: Ibid.

Strong Lines: 2.88/X  4.38/X  3.41/7  5.77/3  4.09/3  2.61/2  2.76/2  1.52/2
2-Theta d(?) I(f) ( h k l ) Theta 1/(2d) 2pi/d n^2
15.349 5.7680 31.7 ( 2 0 0) 7.674 0.0867 1.0893
20.262 4.3790 96.2 ( 0 0 1) 10.131 0.1142 1.4348
21.711 4.0900 26.0 ( 1 0 1) 10.855 0.1222 1.5362
25.561 3.4820 3.8 ( 2 0 1) 12.781 0.1436 1.8045
26.126 3.4080 72.1 ( 1 1 0) 13.063 0.1467 1.8437
31.004 2.8820 100.0 ( 3 0 1) 15.502 0.1735 2.1801
32.363 2.7640 22.1 ( 0 1 1) 16.182 0.1809 2.2732
33.293 2.6889 6.7 ( 1 1 1) 16.647 0.1859 2.3367
34.281 2.6136 24.0 ( 3 1 0) 17.141 0.1913 2.4040
36.021 2.4913 2.9 ( 2 1 1) 18.010 0.2007 2.5221
37.370 2.4044 1.9 ( 4 0 1) 18.685 0.2080 2.6132
40.178 2.2426 1.0 ( 3 1 1) 20.089 0.2230 2.8017
41.257 2.1864 10.6 ( 0 0 2) 20.628 0.2287 2.8738
42.015 2.1487 4.8 ( 1 0 2) 21.007 0.2327 2.9242
44.273 2.0442 2.9 ( 2 0 2) 22.136 0.2446 3.0737
44.419 2.0378 1.0 ( 5 0 1) 22.210 0.2454 3.0833
45.451 1.9939 9.6 ( 4 1 1) 22.726 0.2508 3.1512
47.321 1.9194 13.5 ( 6 0 0) 23.660 0.2605 3.2735
47.839 1.8998 7.7 ( 3 0 2) 23.920 0.2632 3.3073
48.828 1.8636 7.7 ( 0 1 2) 24.414 0.2683 3.3715
49.499 1.8399 1.9 ( 1 1 2) 24.750 0.2718 3.4150
51.209 1.7824 15.4 ( 0 2 0) 25.605 0.2805 3.5251
51.491 1.7733 2.9 ( 2 1 2) 25.746 0.2820 3.5432
51.619 1.7692 1.9 ( 5 1 1) 25.810 0.2826 3.5514
52.008 1.7569 6.7 ( 6 0 1) 26.004 0.2846 3.5763
52.509 1.7413 1.0 ( 4 0 2) 26.254 0.2871 3.6083
53.777 1.7032 1.9 ( 2 2 0) 26.888 0.2936 3.6890
55.640 1.6505 5.8 ( 0 2 1) 27.820 0.3029 3.8068
56.248 1.6341 1.9 ( 1 2 1) 28.124 0.3060 3.8450
58.077 1.5869 1.0 ( 2 2 1) 29.039 0.3151 3.9594
58.129 1.5856 1.0 ( 5 0 2) 29.065 0.3153 3.9627
58.497 1.5765 2.9 ( 6 1 1) 29.249 0.3172 3.9855
58.990 1.5645 5.8 ( 4 1 2) 29.495 0.3196 4.0161
60.037 1.5397 2.9 ( 7 0 1) 30.018 0.3247 4.0808
61.070 1.5161 15.4 ( 3 2 1) 30.535 0.3298 4.1443
62.077 1.4939 8.7 ( 7 1 0) 31.039 0.3347 4.2059
63.803 1.4576 1.0 ( 0 0 3) 31.901 0.3430 4.3106
64.236 1.4488 1.9 ( 5 1 2) 32.118 0.3451 4.3368
64.376 1.4460 2.9 ( 1 0 3) 32.188 0.3458 4.3452
64.556 1.4424 2.9 ( 6 0 2) 32.278 0.3466 4.3561
64.707 1.4394 1.9 ( 8 0 0) 32.353 0.3474 4.3651
65.077 1.4321 1.0 ( 4 2 1) 32.539 0.3491 4.3874
66.047 1.4134 5.8 ( 7 1 1) 33.024 0.3538 4.4454
67.770 1.3816 1.9 ( 0 2 2) 33.885 0.3619 4.5478
68.321 1.3718 1.9 ( 1 2 2) 34.160 0.3645 4.5802
68.577 1.3673 1.0 ( 8 0 1) 34.288 0.3657 4.5953
68.846 1.3626 1.9 ( 3 0 3) 34.423 0.3669 4.6112
69.628 1.3492 2.9 ( 0 1 3) 34.814 0.3706 4.6570
69.967 1.3435 1.0 ( 2 2 2) 34.983 0.3722 4.6767
70.122 1.3409 1.9 ( 5 2 1) 35.061 0.3729 4.6858
70.345 1.3372 2.9 ( 6 1 2) 35.172 0.3739 4.6988
71.739 1.3146 1.9 ( 7 0 2) 35.870 0.3803 4.7795
71.796 1.3137 1.9 ( 2 1 3) 35.898 0.3806 4.7828
72.267 1.3063 4.8 ( 6 2 0) 36.133 0.3828 4.8099
72.660 1.3002 7.7 ( 4 0 3) 36.330 0.3846 4.8325
74.498 1.2726 2.9 ( 3 1 3) 37.249 0.3929 4.9373
75.967 1.2516 2.9 ( 6 2 1) 37.984 0.3995 5.0201
76.399 1.2456 1.0 ( 4 2 2) 38.199 0.4014 5.0443
77.301 1.2333 1.0 ( 7 1 2) 38.651 0.4054 5.0946
77.428 1.2316 1.0 ( 5 0 3) 38.714 0.4060 5.1016
77.697 1.2280 1.0 ( 9 0 1) 38.849 0.4072 5.1166
78.174 1.2217 1.9 ( 4 1 3) 39.087 0.4093 5.1430

PDF#89-0612: QM=Calculated; d=Calculated; I=(Unknown)
Divanadium pentaoxide
V2O5
Radiation=CuKa1 Lambda=1.5406 Filter=
Calibration= 2T=15.338-89.842 I/Ic(RIR)=2.1
Ref: Level-1 PDF

Orthorhombic,  Pmmn(59) Z=2 mp=
CELL: 11.544 x 3.571 x 4.383 <90.0 x 90.0 x 90.0> P.S=
Density(c)=3.342 Density(m)= Mwt= Vol=180.7
Ref: Ibid.

Strong Lines: 4.38/X  3.41/7  2.89/5  5.77/4  4.10/3  2.62/3  2.77/3  1.79/2
2-Theta d(?) I(f) ( h k l ) Theta 1/(2d) 2pi/d n^2
15.338 5.7720 43.2 ( 2 0 0) 7.669 0.0866 1.0886
20.244 4.3830 100.0 ( 0 0 1) 10.122 0.1141 1.4335
21.670 4.0976 31.0 ( 1 0 1) 10.835 0.1220 1.5334
25.497 3.4907 4.5 ( 2 0 1) 12.748 0.1432 1.8000
26.099 3.4115 71.7 ( 1 1 0) 13.049 0.1466 1.8418
30.960 2.8860 48.2 ( 3 0 1) 15.480 0.1733 2.1771
32.310 2.7685 26.0 ( 0 1 1) 16.155 0.1806 2.2696
33.252 2.6921 8.6 ( 1 1 1) 16.626 0.1857 2.3339
34.228 2.6175 26.5 ( 3 1 0) 17.114 0.1910 2.4004
35.948 2.4962 3.0 ( 2 1 1) 17.974 0.2003 2.5171
37.273 2.4104 2.5 ( 4 0 1) 18.637 0.2074 2.6067
40.090 2.2473 0.5 ( 3 1 1) 20.045 0.2225 2.7959
41.156 2.1915 11.6 ( 0 0 2) 20.578 0.2282 2.8671
41.926 2.1530 6.4 ( 1 0 2) 20.963 0.2322 2.9183
44.168 2.0488 0.6 ( 2 0 2) 22.084 0.2440 3.0668
44.307 2.0427 0.4 ( 5 0 1) 22.153 0.2448 3.0759
45.356 1.9979 11.6 ( 4 1 1) 22.678 0.2503 3.1450
46.817 1.9389 0.7 ( 5 1 0) 23.409 0.2579 3.2407
47.201 1.9240 15.1 ( 6 0 0) 23.600 0.2599 3.2657
47.718 1.9043 10.6 ( 3 0 2) 23.859 0.2626 3.2994
48.711 1.8678 10.4 ( 0 1 2) 24.355 0.2677 3.3639
49.386 1.8438 2.5 ( 1 1 2) 24.693 0.2712 3.4077
51.114 1.7855 17.0 ( 0 2 0) 25.557 0.2800 3.5190
51.373 1.7771 2.5 ( 2 1 2) 25.687 0.2814 3.5357
51.497 1.7731 1.3 ( 5 1 1) 25.748 0.2820 3.5436
51.854 1.7617 7.2 ( 6 0 1) 25.927 0.2838 3.5665
52.379 1.7453 1.0 ( 4 0 2) 26.189 0.2865 3.6000
53.690 1.7057 1.6 ( 2 2 0) 26.845 0.2931 3.6835
54.569 1.6803 0.1 ( 3 1 2) 27.285 0.2976 3.7393
55.528 1.6536 7.4 ( 0 2 1) 27.764 0.3024 3.7998
56.145 1.6368 2.7 ( 1 2 1) 28.072 0.3055 3.8386
57.968 1.5896 0.7 ( 2 2 1) 28.984 0.3145 3.9526
58.358 1.5799 3.9 ( 6 1 1) 29.179 0.3165 3.9769
58.843 1.5681 7.1 ( 4 1 2) 29.422 0.3189 4.0070
59.874 1.5435 2.8 ( 7 0 1) 29.937 0.3239 4.0707
60.968 1.5184 8.9 ( 3 2 1) 30.484 0.3293 4.1380
61.925 1.4972 10.5 ( 7 1 0) 30.963 0.3340 4.1966
63.637 1.4610 0.2 ( 0 0 3) 31.818 0.3422 4.3006
64.205 1.4494 2.0 ( 1 0 3) 32.102 0.3450 4.3349
64.383 1.4459 3.2 ( 6 0 2) 32.192 0.3458 4.3457
64.526 1.4430 1.5 ( 8 0 0) 32.263 0.3465 4.3543
64.942 1.4347 1.1 ( 4 2 1) 32.471 0.3485 4.3793
65.867 1.4168 3.9 ( 7 1 1) 32.934 0.3529 4.4347
67.624 1.3842 2.6 ( 0 2 2) 33.812 0.3612 4.5391
68.174 1.3744 2.2 ( 1 2 2) 34.087 0.3638 4.5716
68.387 1.3706 1.2 ( 8 0 1) 34.194 0.3648 4.5842
68.659 1.3659 3.5 ( 3 0 3) 34.330 0.3661 4.6002
69.451 1.3522 3.6 ( 0 1 3) 34.725 0.3698 4.6466
69.814 1.3461 0.4 ( 2 2 2) 34.907 0.3715 4.6678
69.995 1.3430 1.3 ( 5 2 1) 34.998 0.3723 4.6784
70.166 1.3402 3.7 ( 6 1 2) 35.083 0.3731 4.6883
71.543 1.3177 2.5 ( 7 0 2) 35.772 0.3794 4.7682
72.109 1.3088 5.1 ( 6 2 0) 36.054 0.3820 4.8008
72.510 1.3025 4.9 ( 4 0 3) 36.255 0.3839 4.8239
74.021 1.2796 0.5 ( 8 1 1) 37.011 0.3907 4.9102
74.284 1.2757 5.2 ( 3 1 3) 37.142 0.3919 4.9252
75.793 1.2541 3.1 ( 6 2 1) 37.896 0.3987 5.0103
76.218 1.2481 0.5 ( 4 2 2) 38.109 0.4006 5.0342
77.083 1.2362 1.4 ( 7 1 2) 38.542 0.4045 5.0825
77.469 1.2310 0.4 ( 9 0 1) 38.735 0.4062 5.1040
77.963 1.2245 3.1 ( 4 1 3) 38.982 0.4083 5.1314
79.299 1.2072 0.2 ( 9 1 0) 39.650 0.4142 5.2049
79.454 1.2052 0.1 ( 8 0 2) 39.727 0.4149 5.2134
81.165 1.1841 1.1 ( 1 3 0) 40.582 0.4223 5.3065
82.549 1.1677 1.6 ( 7 2 1) 41.274 0.4282 5.3809
82.883 1.1638 0.8 ( 9 1 1) 41.441 0.4296 5.3988
83.711 1.1544 0.9 ( 10 0 0) 41.856 0.4331 5.4428
84.220 1.1487 0.8 ( 0 3 1) 42.110 0.4353 5.4697
84.732 1.1431 0.5 ( 1 3 1) 42.366 0.4374 5.4967
84.838 1.1419 0.5 ( 8 1 2) 42.419 0.4379 5.5023
85.276 1.1372 1.1 ( 3 3 0) 42.638 0.4397 5.5253
85.881 1.1307 0.2 ( 0 2 3) 42.940 0.4422 5.5568
86.392 1.1253 1.3 ( 1 2 3) 43.196 0.4443 5.5835
86.553 1.1236 1.4 ( 6 2 2) 43.277 0.4450 5.5918
86.682 1.1223 1.0 ( 8 2 0) 43.341 0.4455 5.5985
87.262 1.1163 0.2 ( 10 0 1) 43.631 0.4479 5.6284
87.924 1.1096 0.1 ( 2 2 3) 43.962 0.4506 5.6625
88.255 1.1063 1.8 ( 9 0 2) 44.128 0.4520 5.6794
88.821 1.1007 0.2 ( 3 3 1) 44.411 0.4542 5.7083
89.332 1.0957 0.2 ( 0 0 4) 44.666 0.4563 5.7341
89.557 1.0936 1.3 ( 7 0 3) 44.778 0.4572 5.7455
89.842 1.0908 0.7 ( 1 0 4) 44.921 0.4584 5.7599

赞一下

回复此楼

2楼2014-06-04 09:48:59

已阅回复此楼关注TA 给TA发消息送TA红花 TA的回帖

xhtangxh

木虫 (著名写手)

有木有虫

CMEI: 6
应助: 773 (博后)
金币: 17832.4
红花: 107
帖子: 2676
在线: 599.3小时
虫号: 428580
注册: 2007-08-04
专业: 催化化学

JCPDS no. 81-0612不是V2O5而是Ce2Ni22C2.75的标准卡片，JCPDS no. 89-0612才是。

赞一下

回复此楼

3楼2014-06-04 09:52:34

已阅回复此楼关注TA 给TA发消息送TA红花 TA的回帖

yalaoda

金虫 (小有名气)

应助: 0 (幼儿园)
金币: 826.5
红花: 1
帖子: 107
在线: 49.6小时
虫号: 2313506
注册: 2013-03-03
专业: 电化学

引用回帖:

2楼: Originally posted by xhtangxh at 2014-06-04 09:48:59
PDF#41-1426: QM=Common(+); d=Diffractometer; I=(Unknown)
Shcherbinaite, syn
V2O5
Radiation=CuKa1 Lambda=1.5406 Filter=
Calibration= 2T=15.349-78.174 I/Ic(RIR)=1.6
Ref: Level-1 PDF

Orthorhomb ...

谢谢你啊，是我打错了。。现在在写本科毕设的论文，然后完全不会用jade那个软件。。可不可以麻烦给个可以直接用origin作图的那种文档啊？就是横坐标是2theta，纵坐标是强度的那种额。。

[ 发自小木虫客户端 ]

赞一下

回复此楼

4楼2014-06-04 19:09:27

已阅回复此楼关注TA 给TA发消息送TA红花 TA的回帖

xhtangxh

木虫 (著名写手)

有木有虫

CMEI: 6
应助: 773 (博后)
金币: 17832.4
红花: 107
帖子: 2676
在线: 599.3小时
虫号: 428580
注册: 2007-08-04
专业: 催化化学

引用回帖:

4楼: Originally posted by yalaoda at 2014-06-04 19:09:27
谢谢你啊，是我打错了。。现在在写本科毕设的论文，然后完全不会用jade那个软件。。可不可以麻烦给个可以直接用origin作图的那种文档啊？就是横坐标是2theta，纵坐标是强度的那种额。。
...

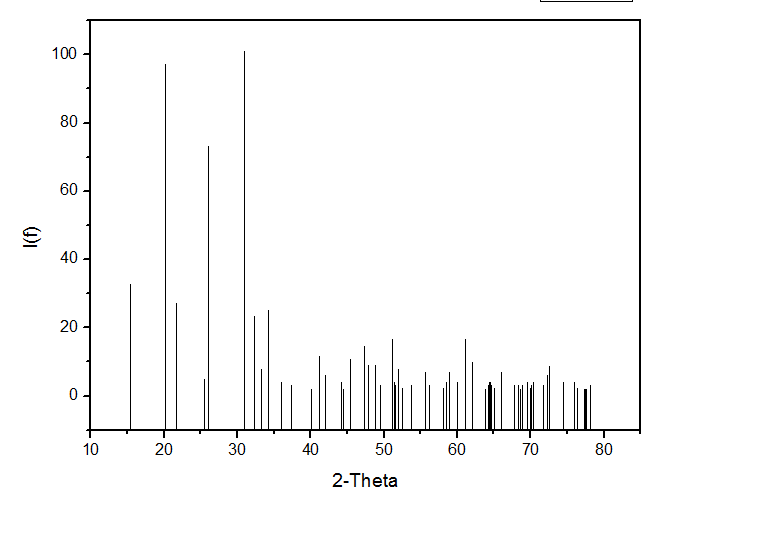

数据不是有了吗？直接取2-Theta和I(f)两列数据就可以用origin作图了嘛！
