【答案】应助回帖

» 猜你喜欢

» 本主题相关价值贴推荐，对您同样有帮助:

jade中pdf卡片，晶系指认遇到的问题！已经有4人回复
已知XRD图峰位置角度和晶面间距d，怎么判断是什么晶系已经有4人回复
怎么根据XRD图判断聚合物是哪种晶系？已经有11人回复
Nb2O5是什么晶体结构？求结构示意图已经有5人回复
急求pdf为 52-0690、53-0387 和 33-0831 的cif文件，非常感谢！！！！已经有9人回复
【求助】请问如何利用XRD计算正交晶系催化剂的粒径大小？已经有9人回复
【求助】ZSM-5的XRD图中峰强度问题已经有12人回复

1楼2014-02-18 17:48:40

xhtangxh

木虫 (著名写手)

有木有虫

CMEI: 6
应助: 773 (博后)
金币: 17832.4
红花: 107
帖子: 2676
在线: 599.3小时
虫号: 428580
注册: 2007-08-04
专业: 催化化学

【答案】应助回帖

★ ★ ★ ★ ★
感谢参与，应助指数 +1
wangpy03: 金币+5, ★有帮助 2014-02-19 09:58:11

Restrictions
Lattice
Crystal system Orthorhombic
Chemistry
Formula Nb2O5

Search Results
The search found 3 matching cards:
PDF No. Material Formula Status
27-1003 Niobium Oxide Nb2 O5
27-1313 Niobium Oxide Nb2 O5 Deleted
30-873 Niobium Oxide Nb2 O5

2楼2014-02-19 09:43:04

wangpy03

银虫 (小有名气)

应助: 0 (幼儿园)
金币: 443.1
帖子: 88
在线: 104.4小时
虫号: 1037514
注册: 2010-06-07
性别: MM
专业: 电化学

引用回帖:

2楼: Originally posted by xhtangxh at 2014-02-19 09:43:04
Restrictions
Lattice
Crystal system Orthorhombic
Chemistry
Formula Nb2O5

Search Results
The search found 3 matching cards:
PDF No. Material Formula Status
27-1003 Niobium Oxide Nb2 O5
27 ...

能不能给个原始的TXT数据，谢谢！

3楼2014-02-19 09:58:38

xhtangxh

木虫 (著名写手)

有木有虫

CMEI: 6
应助: 773 (博后)
金币: 17832.4
红花: 107
帖子: 2676
在线: 599.3小时
虫号: 428580
注册: 2007-08-04
专业: 催化化学

【答案】应助回帖

★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★
wangpy03: 金币+15, ★★★很有帮助, 最好能给个origin图，谢谢! 2014-02-21 20:11:41

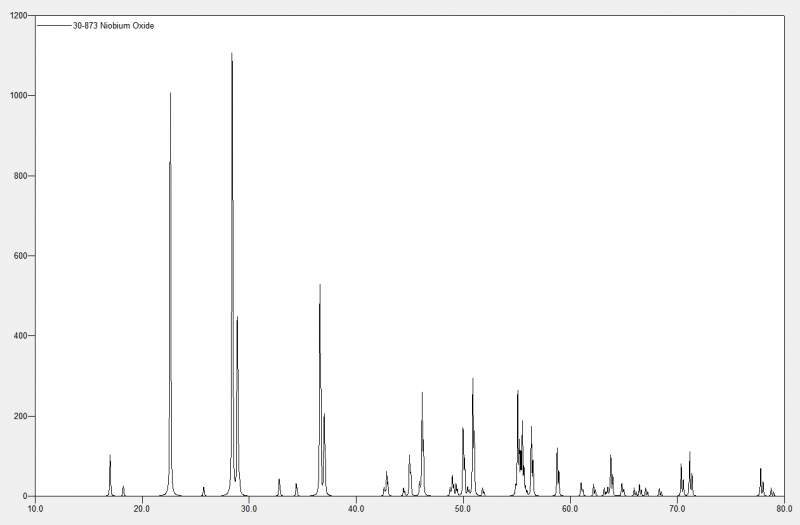

PDF#30-0873: QM=Common(+); d=Calculated; I=(Unknown)
Niobium Oxide
Nb2O5
Radiation=CuKa1 Lambda=1.5406 Filter=
Calibration= 2T=16.994-78.765 I/Ic(RIR)=
Ref: Level-1 PDF

Orthorhombic,  Pbam(55) Z=10 mp=
CELL: 6.175 x 29.175 x 3.93 <90.0 x 90.0 x 90.0> P.S=
Density(c)=4.98 Density(m)= Mwt= Vol=708.0
Ref: Ibid.

Strong Lines: 3.14/X  3.93/9  2.45/5  3.09/4  1.79/3  1.67/3  1.97/3  2.43/2
2-Theta d(?) I(f) ( h k l ) Theta 1/(2d) 2pi/d n^2
16.994 5.2130 8.0 ( 1 3 0) 8.497 0.0959 1.2053
18.228 4.8630 2.0 ( 0 6 0) 9.114 0.1028 1.2920
22.606 3.9300 85.0 ( 0 0 1) 11.303 0.1272 1.5988
25.726 3.4600 2.0 ( 0 4 1) 12.863 0.1445 1.8159
28.401 3.1400 100.0 ( 1 8 0) 14.200 0.1592 2.0010
28.870 3.0900 40.0 ( 2 0 0) 14.435 0.1618 2.0334
29.062 3.0700 3.0 ( 2 1 0) 14.531 0.1629 2.0466
32.790 2.7290 4.0 ( 2 5 0) 16.395 0.1832 2.3024
34.385 2.6060 3.0 ( 2 6 0) 17.192 0.1919 2.4110
36.603 2.4530 50.0 ( 1 8 1) 18.301 0.2038 2.5614
36.993 2.4280 19.0 ( 2 0 1) 18.497 0.2059 2.5878
42.590 2.1210 2.0 ( 2 10 0) 21.295 0.2357 2.9624
42.844 2.1090 6.0 ( 1 13 0) 21.422 0.2371 2.9792
44.415 2.0380 2.0 ( 3 2 0) 22.207 0.2453 3.0830
44.973 2.0140 9.0 ( 3 3 0) 22.486 0.2483 3.1198
45.020 2.0120 2.0 ( 2 11 0) 22.510 0.2485 3.1229
45.911 1.9750 3.0 ( 1 14 0) 22.955 0.2532 3.1814
46.158 1.9650 25.0 ( 0 0 2) 23.079 0.2545 3.1976
48.761 1.8660 2.0 ( 2 10 1) 24.381 0.2680 3.3672
48.985 1.8580 5.0 ( 1 13 1) 24.493 0.2691 3.3817
49.325 1.8460 3.0 ( 3 7 0) 24.662 0.2709 3.4037
49.989 1.8230 17.0 ( 0 16 0) 24.995 0.2743 3.4466
50.403 1.8090 2.0 ( 3 2 1) 25.202 0.2764 3.4733
50.885 1.7930 25.0 ( 3 8 0) 25.442 0.2789 3.5043
50.915 1.7920 6.0 ( 3 3 1) 25.458 0.2790 3.5062
51.783 1.7640 2.0 ( 1 14 1) 25.891 0.2834 3.5619
54.899 1.6710 2.0 ( 3 7 1) 27.450 0.2992 3.7601
55.078 1.6660 25.0 ( 1 8 2) 27.539 0.3001 3.7714
55.367 1.6580 10.0 ( 2 0 2) 27.683 0.3016 3.7896
55.512 1.6540 13.0 ( 0 16 1) 27.756 0.3023 3.7988
55.805 1.6460 2.0 ( 2 15 0) 27.903 0.3038 3.8172
56.364 1.6310 17.0 ( 3 8 1) 28.182 0.3066 3.8524
58.763 1.5700 12.0 ( 2 16 0) 29.382 0.3185 4.0020
60.986 1.5180 2.0 ( 2 15 1) 30.493 0.3294 4.1391
61.030 1.5170 2.0 ( 3 13 0) 30.515 0.3296 4.1418
62.165 1.4920 3.0 ( 4 5 0) 31.083 0.3351 4.2113
63.154 1.4710 2.0 ( 4 6 0) 31.577 0.3399 4.2714
63.491 1.4640 2.0 ( 3 14 0) 31.746 0.3415 4.2918
63.783 1.4580 10.0 ( 2 16 1) 31.892 0.3429 4.3095
64.777 1.4380 2.0 ( 1 13 2) 32.389 0.3477 4.3694
64.828 1.4370 2.0 ( 4 0 1) 32.414 0.3479 4.3724
65.963 1.4150 2.0 ( 3 13 1) 32.981 0.3534 4.4404
66.440 1.4060 3.0 ( 2 11 2) 33.220 0.3556 4.4688
67.032 1.3950 2.0 ( 3 4 2) 33.516 0.3584 4.5041
68.309 1.3720 2.0 ( 3 14 1) 34.155 0.3644 4.5796
70.357 1.3370 8.0 ( 4 8 1) 35.178 0.3740 4.6995
71.152 1.3240 11.0 ( 3 8 2) 35.576 0.3776 4.7456
77.772 1.2270 7.0 ( 3 12 2) 38.886 0.4075 5.1208
78.765 1.2140 2.0 ( 4 0 2) 39.383 0.4119 5.1756

4楼2014-02-19 23:49:20

xhtangxh

木虫 (著名写手)

有木有虫

CMEI: 6
应助: 773 (博后)
金币: 17832.4
红花: 107
帖子: 2676
在线: 599.3小时
虫号: 428580
注册: 2007-08-04
专业: 催化化学

有了上面的数据，不会自己做吗？！！！

5楼2014-02-22 10:40:18
