[求助] 计时库仑法参数设置问题已有1人参与

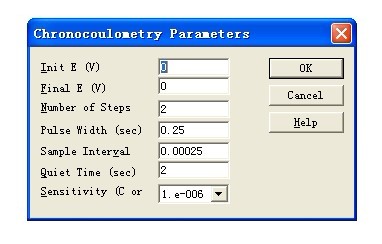

之前没有接触过计时库仑法，看到文献描述的chronocoulometry (CC)： pulse period=500 ms, pulse width=500 mV. 不知道pulse period=500ms这个参数是怎么设定的哦？知道的师兄师姐指点一下

回复此楼

» 猜你喜欢

德国Karlsruhe Institute of Technology招收电化学储能及联合培养CSC博士等已经有20人回复
德国Karlsruhe Institute of Technology招收电化学储能及联合培养CSC博士已经有24人回复
分析化学论文润色/翻译怎么收费? 已经有201人回复
德国Karlsruhe Institute of Technology招收电化学储能及联合培养CSC博士已经有1人回复
固态锂金属电池迁移数计算求助已经有1人回复
荷兰奈梅亨大学赵文博与Galimberti课题组招收理论计算CSC博士 2000 欧元/月+房补已经有0人回复
26储能博士申请自荐已经有22人回复
上海交通大学--宁波东方理工大学电池方向博士招生已经有10人回复
海南大学全国重点实验室杨金霖老师招收储能电池方向博士生（2026年3月报名，9月入学）已经有1人回复
海南师范大学2026年博士研究生招收 (在职想提升学历人员可报考) 申请考核制+普通招考已经有1人回复
申博求助已经有0人回复

» 本主题相关价值贴推荐，对您同样有帮助:

1楼 2012-02-16 14:37:39

已阅回复此楼关注TA 给TA发消息送TA红花 TA的回帖

abc5710110

金虫 (著名写手)

ECEPI: 3
应助: 33 (小学生)
金币: 93.4
散金: 1209
红花: 10
帖子: 2140
在线: 238.5小时
虫号: 1194602
注册: 2011-01-22
性别: GG
专业: 生化分析及生物传感

我们的工作站CHI660D的说明书介绍：希望能对你有帮助
Parameters for Chronocoulometry

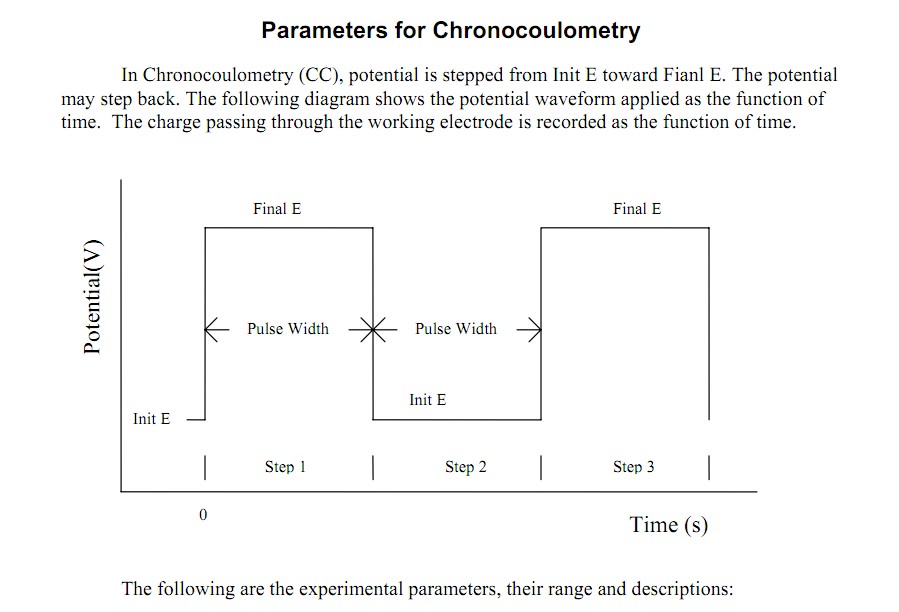

In Chronocoulometry (CC), potential is stepped from Init E toward Fianl E. The potential
may step back. The following diagram shows the potential waveform applied as the function of
time.  The charge passing through the working electrode is recorded as the function of time.
The following are the experimental parameters, their range and descriptions:
Parameters Range Description
Init E (V) -10 - +10 Initial potential
Final E (V) -10 - +10 Final potential
Number of Steps 1  -  320 Number of potential steps
Pulse Width (sec) 1e-4  -  1000 Potential pulse width
Sample Interval (s) 1e-6  -  10 Sampling Interval
Quiet Time (sec) 0  -  100000 Quiescent time before potential step
Sensitivity (C or
A/V)
1e-12  -  0.1
or 1e-9C/V -
1e-6 C/V
Sensitivity scale
Notes:
1. Init E and Final E should be at least 0.01 V apart.
2. The maximum potential step range is 13.1 V.
3. A true integrator (charge-to-voltage converter) can be chosen. In this case, the sensitivity
is 1e-9C/V to 1e-6C/V. If the charge exceeds the 8e-6 coulomb,  the capacitor of the
Potential(V)
Init E
Time (s)
Final E
Step 1 Step 2 Step 3
Init E
Final E
0
Pulse Width Pulse WidthChapter 4.  Setup Menu
________________________________________________________________________
4-13
integrator will be discharged and the new charge will be added to the previous value. This
allows higher charge to be measured with the integrator. There might be discontinuity in
charge-time curve due to the capacitor discharge. The discontinuity should be negligible.
However, if it is significant to the measurement, you may choose to use the current-to-
voltage converter and integrate the current measured by software.
4. Current-to-voltage converter is not ideal for chronocoulometry, particularly if the early
transient data is important, such as double layer capacitance, or surface reactions. Charge-to-
voltage converter (true integrator) is a better choice.
5. If current-to-voltage converter is selected due to high total charge, shorter sample interval
will increase data density, but will reduce the signal-to-noise ratio. If earlier transient data is
important, shorter sample interval is recommended. If the later part of data is of interest,
longer sample interval is recommended. However, minimum 1000 points per step are
required, unless sampling rate does not allow it.
6. If the sample interval is less than 0.002s, the data will not be transferred on the real-time
base. Instead the data will be transferred after the experiment is completed. Cell is turned off
during the data transfer unless the Cell On between Run option is selected. From start of
experiment and data transfer there is a delay. The total number of data points will be limited
to 64K due to internal memory size limitation. Sample interval might be automatically
altered to adjust the data points in the reasonable range.
7. If the sample interval is longer than 0.002s, data will be transferred during experiment.
Maximum 64K total data points are allowed for each step. Sample interval might be
automatically altered to adjust the data points in the reasonable range.
8. If the current-to-voltage converter is used, during the run, an “Overflow” warning might
appear. This is due to the current transient immediately after the potential step. If the
intercept (that gives information of double layer capacitance and adsorption) of Anson plot
(Q-t
1/2
plot) is not your primary interest, you may not worry about it. However, if the data
distortion can be seen visually, you have to lower the sensitivity scale.
Sometimes, you may use i/E converter filter to slow the system down, but make sure that
the time constant of the filter (1/cutoff freq) is much shorter than the pulse width.
In order to reduce noise and enhance the accuracy of the measurement, it is
recommended to use the highest sensitivity scale possible.

赞一下

回复此楼

强化多边交流，实现互利共赢

2楼2012-02-19 10:44:34

已阅回复此楼关注TA 给TA发消息送TA红花 TA的回帖

caowei1122

新虫 (初入文坛)

应助: 0 (幼儿园)
金币: 1.5
帖子: 4
在线: 5.9小时
虫号: 4776607
注册: 2016-06-15

引用回帖:

2楼: Originally posted by abc5710110 at 2012-02-19 10:44:34
我们的工作站CHI660D的说明书介绍：希望能对你有帮助
Parameters for Chronocoulometry
In Chronocoulometry (CC), potential is stepped from Init E toward Fianl E. The potential
may step back. The follow ...

具体的参数应该根据什么设置呢？楼主的问题解决了吗？

赞一下

回复此楼

3楼2017-01-04 11:11:49
