mater_sh银虫 (小有名气)
|
[求助]
帮忙NbC和NbN的PDF卡
|
| 请各位，做了个X射线，想求助NbC 和NbN的x射线PDF卡。谢谢各位！ |
回复此楼» 猜你喜欢
什么是人一生最重要的？
已经有7人回复
-
版面费该交吗
已经有17人回复
-
体制内长辈说体制内绝大部分一辈子在底层，如同你们一样大部分普通教师忙且收入低
已经有19人回复
-
【博士招生】太原理工大学2026化工博士
已经有8人回复
-
280求调剂
已经有4人回复
-
面上可以超过30页吧？
已经有12人回复
-
为什么中国大学工科教授们水了那么多所谓的顶会顶刊，但还是做不出宇树机器人？
已经有11人回复
-
网上报道青年教师午睡中猝死、熬夜猝死的越来越多，主要哪些原因引起的？
已经有9人回复
» 本主题相关价值贴推荐，对您同样有帮助:
- 判断无线网卡是否能变成“无线路由器”的方法【转载】
已经有56人回复
- jade5.0和pdf卡片使用困惑
已经有5人回复
- 有些PDF卡片显示为deleted，是怎么回事？
已经有3人回复
- 《生老病死的密码：揭开活到120岁的健康秘诀》PDF电子书【转载】
已经有535人回复
- 跪求XRD标准卡片，PDF编号：01-072-7074，希望各位同志帮帮忙吧！！
已经有15人回复
- XRD中PDF卡片中怎么找不到K值？
已经有6人回复
- 关于origin 作PDF标准卡的图
已经有5人回复
- 请问劳务费，都是拿什么发票去报销的？还是直接打研究生卡里面？
已经有12人回复
- 【求助】求助Li3V2(PO4)3的标准PDF卡片和NIST的硅数据！！
已经有8人回复
- 【请教】PDF卡如何安装
已经有9人回复
- 【求助】PDF卡片的选择
已经有9人回复
- 【求助】同种物质为什么有两个PDF卡号？
已经有11人回复
【答案】应助回帖
mater_sh(金币+3): 谢谢您的帮助，但是由于下面还有一个，所以给你3分。别介意。呵呵。 2011-05-21 17:14:47
|

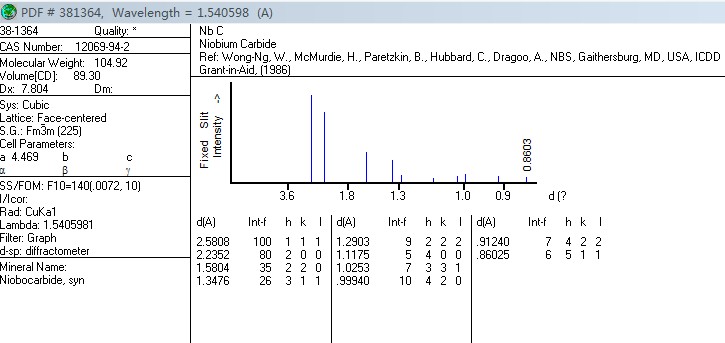

PDF#38-1364: QM=Star(+); d=Diffractometer; I=Diffractometer Niobocarbide, syn Nb C (Black) Radiation=CuKa1 Lambda=1.5405981 Filter=Graph Calibration=Internal(Si) d-Cutoff=17.7 I/Ic(RIR)= Ref= Wong-Ng, W., McMurdie, H., Paretzkin, B., Hubbard, C., Dragoo, A., NBS, Gaithersburg, MD, USA. ICDD Grant-in-Aid (1986) Cubic - Powder Diffraction, Fm-3m (225) Z=4 mp= Cell=4.4698 Pearson=cF8 (Cl Na) Density(c)=7.804 Density(m)=8.10A Mwt=104.92 Vol=89.30 F(10)=137.0(.0073,10) Ref= Wong-Ng, W., McMurdie, H., Paretzkin, B., Hubbard, C., Dragoo, A. Powder Diffraction, 3 55 (1988) Strong Line: 2.58/X 2.24/8 1.58/4 1.35/3 1.00/1 1.29/1 1.03/1 0.91/1 0.86/1 1.12/1 NOTE: The mean temperature of the data collection was 25.5 C. The structure of NbC was determined by Rudy et al. (1). The sample was from Alfa Products, Danvers, Massachusetts, USA. To replace 00-010-0181. Spectroscopic analysis indicated impurities of Ta 0.02%, Ti 0.01%, and Fe 0.07%. d(A) I(f) I(v) h k l n^2 2-Theta Theta 1/(2d) 2pi/d 2.5809 100.0 100.0 1 1 1 3 34.730 17.365 0.1937 2.4345 2.2352 80.0 92.0 2 0 0 4 40.316 20.158 0.2237 2.8110 1.5804 35.0 57.0 2 2 0 8 58.337 29.169 0.3164 3.9756 1.3477 26.0 50.0 3 1 1 11 69.718 34.859 0.3710 4.6622 1.2903 9.0 18.0 2 2 2 12 73.306 36.653 0.3875 4.8695 1.1176 5.0 12.0 4 0 0 16 87.139 43.569 0.4474 5.6221 1.0253 7.0 18.0 3 3 1 19 97.401 48.701 0.4877 6.1281 0.9994 10.0 26.0 4 2 0 20 100.841 50.420 0.5003 6.2869 0.9124 7.0 20.0 4 2 2 24 115.179 57.589 0.5480 6.8864 0.8603 6.0 18.0 5 1 1 27 127.121 63.561 0.5812 7.3038 PDF#14-0547: QM=Doubtful(?); d=(Unknown); I=Film/Visual Niobium Nitride Nb N Radiation=CuKa Lambda=1.5418 Filter=Ni Calibration= d-Cutoff= I/Ic(RIR)= Ref= Brauer, Esselborn. Z. Anorg. Allg. Chem., 309 151 (1961) Hexagonal - Powder Diffraction, P63/mmc (194) Z=2 mp= Cell=2.942x5.548 Pearson=hP4 (As Ni) Density(c)=8.390 Density(m)=8.66A Mwt=106.91 Vol=41.59 F(18)=3.7(0.179,27) Ref= Ibid. Strong Line: 2.31/X 2.74/8 1.87/8 0.85/8 1.49/8 1.47/8 1.01/8 0.78/8 1.30/7 0.95/7 NOTE: The composition Nb N0.99 is designated as $GD. O assigned because average $VD2$GU is 0.179. d(A) I(f) I(v) h k l n^2 2-Theta Theta 1/(2d) 2pi/d 2.7400 80.0 30.0 0 0 2 32.655 16.327 0.1825 2.2931 2.5500 60.0 25.0 1 0 0 35.164 17.582 0.1961 2.4640 2.3070 100.0 45.0 1 0 1 39.010 19.505 0.2167 2.7235 1.8720 80.0 45.0 1 0 2 48.595 24.297 0.2671 3.3564 1.4870 75.0 53.0 1 0 3 62.398 31.199 0.3362 4.2254 1.4740 75.0 53.0 1 1 0 63.011 31.505 0.3392 4.2627 1.3740 25.0 19.0 68.196 34.098 0.3639 4.5729 1.2980 65.0 52.0 1 1 2 72.802 36.401 0.3852 4.8407 1.2740 15.0 12.0 2 0 0 74.402 37.201 0.3925 4.9319 1.2430 60.0 50.0 2 0 1 76.588 38.294 0.4023 5.0549 1.2110 20.0 17.0 78.999 39.499 0.4129 5.1884 1.1580 35.0 32.0 2 0 2 83.392 41.696 0.4318 5.4259 1.0480 40.0 40.0 2 0 3 94.614 47.307 0.4771 5.9954 1.0080 75.0 78.0 1 1 4 99.666 49.833 0.4960 6.2333 0.9660 15.0 16.0 2 1 0 105.763 52.882 0.5176 6.5043 0.9520 65.0 71.0 108.020 54.010 0.5252 6.6000 0.9380 15.0 17.0 2 0 4 110.409 55.204 0.5330 6.6985 0.9120 40.0 46.0 2 1 2 115.259 57.630 0.5482 6.8895 0.8660 20.0 24.0 125.613 62.807 0.5774 7.2554 0.8500 80.0 98.0 3 0 0 129.974 64.987 0.5882 7.3920 0.8370 40.0 50.0 2 0 5 133.936 66.968 0.5974 7.5068 0.8170 65.0 83.0 141.060 70.530 0.6120 7.6906 0.7940 35.0 46.0 151.920 75.960 0.6297 7.9133 0.7830 75.0 100.0 1 1 6 159.317 79.658 0.6386 8.0245 |
2楼2011-05-16 10:25:05
3楼2011-05-17 10:58:45
