[求助] 关于非线性描述函数分析法,求助大神

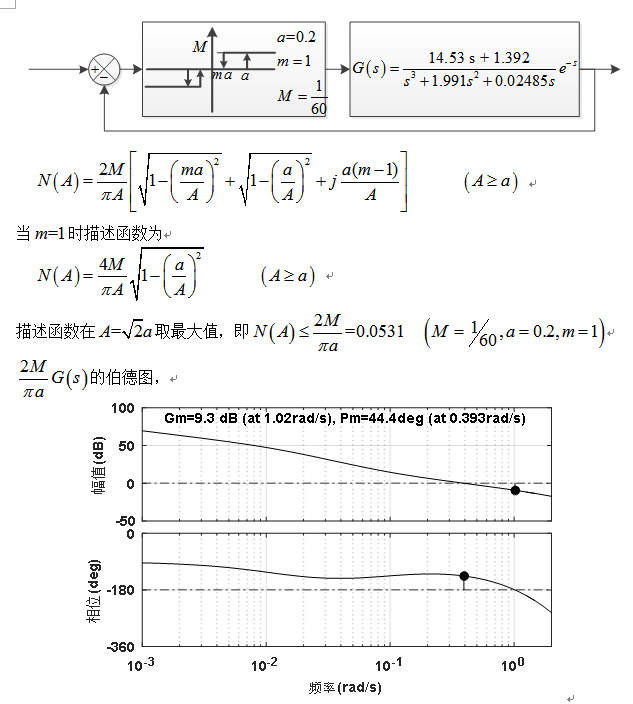

下面的一个非线性系统,理论分析是稳定的,但是Simulink仿真结果却是振荡的。
关于非线性描述函数分析法,求助大神@Paulwolf@mchen_6431
回复此楼

» 本帖附件资源列表

  • 欢迎监督和反馈:小木虫仅提供交流平台,不对该内容负责。
    本内容由用户自主发布,如果其内容涉及到知识产权问题,其责任在于用户本人,如对版权有异议,请联系邮箱:xiaomuchong@tal.com
  • 附件 1 : untitled.mdl
  • 2017-01-20 14:47:55, 22.71 K
  • 附件 2 : untitled.mdl
  • 2017-01-20 14:57:47, 28.5 K

» 猜你喜欢

» 本主题相关价值贴推荐,对您同样有帮助:

已阅   回复此楼   关注TA 给TA发消息 送TA红花 TA的回帖

Sache

新虫 (初入文坛)

Roughly speaking, using the method of describing function one checks "the stability" of limit cycles (oscillations) in a nonlinear system. In this case,"stable" limit
cycle could mean a (constant) oscillation.
2楼2017-01-23 13:57:51
已阅   回复此楼   关注TA 给TA发消息 送TA红花 TA的回帖

doublewjs

金虫 (小有名气)

引用回帖:
2楼: Originally posted by Sache at 2017-01-23 13:57:51
Roughly speaking, using the method of describing function one checks "the stability" of limit cycles (oscillations) in a nonlinear system. In this case,"stable" limit
cycle coul ...

关键是采用描述函数法分析的结论是稳定的,没有振荡的
3楼2017-01-23 23:04:52
已阅   回复此楼   关注TA 给TA发消息 送TA红花 TA的回帖

Sache

新虫 (初入文坛)

引用回帖:
3楼: Originally posted by doublewjs at 2017-01-23 23:04:52
关键是采用描述函数法分析的结论是稳定的,没有振荡的...

Again, the "stability" mens, in this context, the limit cycle is stable (not the system!). In other words, there exists a (stable) limit cycle (oscillation). There is need to re-study describing function method.
4楼2017-01-24 13:55:40
