24小时热门版块排行榜

返回列表

白玉浴血

木虫 (正式写手)

应助: 0 (幼儿园)
金币: 2513.6
散金: 102
红花: 8
帖子: 838
在线: 243.2小时
虫号: 2684358
注册: 2013-09-27
性别: MM
专业: 高分子组装与超分子结构

[求助] 紫外可见吸收光谱，求大神帮忙解释一下！！！！

To study and quantify the oxidation of thiols within the multilayers, 1 μm silica particles coated with five bilayers of PMASH/PVPON were used. In
reduced form, the multilayers are unstable at pH 7 and rapidly disassemble when placed into a 10 mM solution of Ellman’s reagent in 1 M

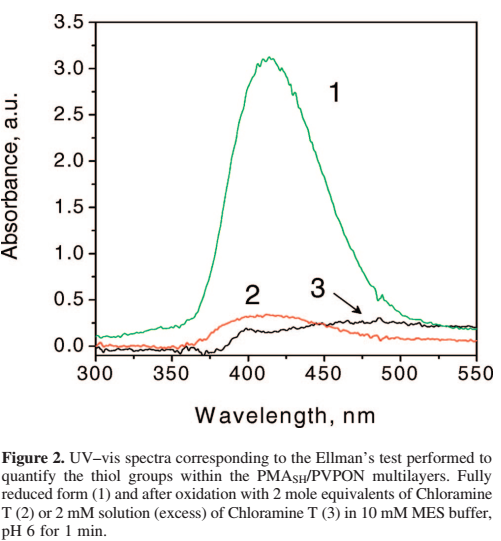

phosphate buffer, pH 7.5. The resulting solution has a characteristic absorption at 412 nm (Figure 2, spectrum 1), which is used to quantify the
number of thiol groups by using a calibration curve obtained with standard solutions of glutathione. The addition of CaT to the particles with
PMASH/PVPON multilayers at different pH (4–6) results in a decreased number of thiol groups, reflecting their oxidation into disulfide linkages. We found that the addition of 2 mole equivalents of CaT oxidized 90% of thiols within 1 min (Figure 2, spectrum 2), and a moderate excess of CaT (2
mM solution) converts the thiols into disulfides nearly quantitatively (Figure 2, spectrum 3).
请大神指教，这里的曲线1是一条校准曲线，这是校准的什么，这条曲线代表什么意义呢？曲线2和3又是怎么得来的双硫键的氧化率呢？


回复此楼
