24小时热门版块排行榜

返回列表

Parker一班

木虫 (正式写手)

水牛生态学家

应助: 6 (幼儿园)
金币: 3689.7
散金: 27
红花: 57
帖子: 881
在线: 159.4小时
虫号: 2499414
注册: 2013-06-07
性别: MM
专业: 电化学

[交流] 大牛Yitai Qian最新锂硫电池力作（EES，2015年10月03日）

题目：Amorphous S-rich S1xSex/C (x r 0.1) composites promise better lithium–sulfur batteries in a carbonate-based electrolyte†

作者：Xiaona Li, Jianwen Liang, Kailong Zhang, Zhiguo Hou, Wanqun Zhang, Yongchun Zhu* and Yitai Qian*
      Hefei National Laboratory for Physical Science at Micro-scale, Department of Chemistry, University of Science and Technology of China, Hefei,
      Anhui 230026, P. R. China. E-mail: ytqian@ustc.edu.cn, ychzhu@ustc.edu.cn （院士出马，一个顶俩）

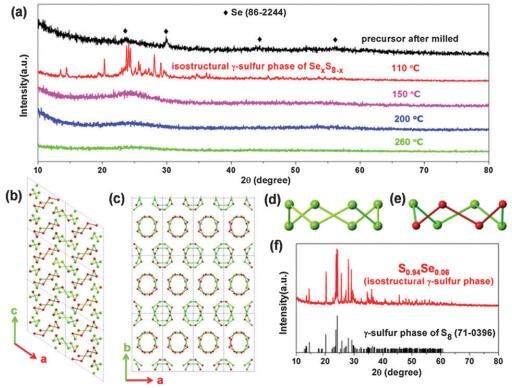

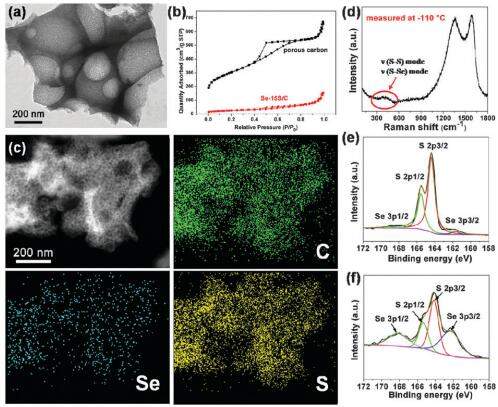

摘要：Polysulfide dissolution and the insulating nature of sulfur cause significant capacity fading and low efficiency in rechargeable lithium–sulfur batteries. Here, we show that these defects can be effectively diminished by immobilizing sulfur in porous carbon via the interaction of a small amount of selenium. Amorphous S-rich S1-xSex/C (x ≤ 0.1) composites have been prepared starting from Se and S powders at 260 ℃. Raman spectra reveal the existence of S–Se bonds in S1-xSex/C composites. As cathodes for lithium–sulfur batteries, S1-xSex/C (x ≤ 0.1) composites exhibit high electrochemical performance in a carbonate-based electrolyte. S0.94Se0.06/C composites deliver the best performance with a capacity of 910 mA h g-1 at 1 A g-1 over 500 cycles, 1105 mA h g-1 at 0.2 A g-1 after 100 cycles and a good rate capability of 617 mA h g-1 at 20 A g-1.
