[求助] "小虫求助“ 未定义函数或变量 'Beam_InputData547'。已有1人参与

小虫刚学习MATLAB，现正在学习《Matlab有限元结构动力学分析与工程应用》，在5.4.3瞬态问题分析。例5.7中按照书本附带的源程序运行提示

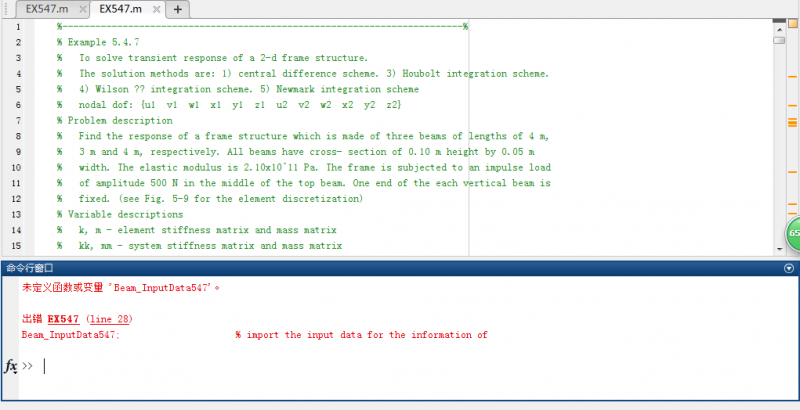

未定义函数或变量 'Beam_InputData547'。

出错 EX547 (line 28)
Beam_InputData547;                   % import the input data for the information of
代码开头部分如下：
%-------------------------------------------------------------------------%
% Example 5.4.7
% To solve transient response of a 2-d frame structure.
% The solution methods are: 1) central difference scheme. 3) Houbolt integration scheme.
% 4) Wilson ?? integration scheme. 5) Newmark integration scheme
% nodal dof: {u1  v1  w1  x1  y1  z1  u2  v2  w2  x2  y2  z2}
% Problem description
% Find the response of a frame structure which is made of three beams of lengths of 4 m,
% 3 m and 4 m, respectively. All beams have cross- section of 0.10 m height by 0.05 m
% width. The elastic modulus is 2.10x10^11 Pa. The frame is subjected to an impulse load
% of amplitude 500 N in the middle of the top beam. One end of the each vertical beam is
% fixed. (see Fig. 5-9 for the element discretization)
% Variable descriptions
% k, m - element stiffness matrix and mass matrix
% kk, mm - system stiffness matrix and mass matrix
% ff - system force vector
% index - a vector containing system dofs associated with each element
% bcdof - a vector containing dofs associated with boundary conditions
% bcval - a vector containing boundary condition values associated with the dofs in 'bcdof'
% dsp - displacement matrix
% vel - velocity matrix
% acc - acceleartion matrix
%--------------------------------------------------------------------------
%  (0) input control data
%--------------------------------------------------------------------------
clear; clc;

Beam_InputData547;                   % import the input data for the information of
                              % nodes, elements, loads, constraints and materials
Opt_beam=1;                                     % option for type of the beam
                                                   % =1 Euler Bernoulli beam
                                                   % =2 Timoshenko beam
Opt_mass=2;                                           % option for mass matrix
                                                % =1 consistent mass matrix
                                                   % =2 lumped mass matrix
Opt_section=1;                                  % option for type of cross-section
                                                % = 1 rectangular cross-section
                                                   % = 2 circular cross-section
TypeMethod=1;                         % option for selecting the solution method
                                             % = 1 central difference scheme
                                             % = 3 Houbolt integration scheme
                                          % = 4 Wilson integration scheme
                                          % = 5 Newmark integration scheme
Typeload=1;                                  % option for selecting the load type
                                                         % = 1 impulse load
                                                            % = 2 step load
                                                      % = 3 Harmonic load

dt=0.00001;                                                 % time step size
ti=0;                                                          % initial time
tf=0.200;                                                       % final time
nt=fix((tf-ti)/dt);                                        % number of time steps
tt=ti:dt:ti+nt*dt;                                  % generate time samples vector

ac=0.00002; bc=0.00008;                      % Parameters for proportional damping

al=0;                         % angle between the reference coordinate system and
                              % the local coordinate system for the space element
%--------------------------------------------------------------------------
%  (1) initialization of matrices and vectors to zero
%--------------------------------------------------------------------------
k=zeros(No_nel*No_dof,No_nel*No_dof);                % element stiffness matrix
m=zeros(No_nel*No_dof,No_nel*No_dof);                   % element mass matrix

kk=zeros(Sys_dof,Sys_dof);                % initialization of system stiffness matrix
mm=zeros(Sys_dof,Sys_dof);                   % initialization of system mass matrix
ff=zeros(Sys_dof,1);                         % initialization of system force vector

bcdof=zeros(Sys_dof,1);                            % initializing the vector bcdof
bcval=zeros(Sys_dof,1);                               % initializing the vector bcval

index=zeros(No_nel*No_dof,1);                      % initialization of index vector
------------------------------------------------------------------------------------------------------
未定义变量是否可以理解为Beam_InputData547=？？？
或Beam=input（data547），但在源文件中并未找到相关信息。
另外本章源程序开始第一句均为”Beam_InputData    ”
均出现如上问题，恳请大神赐教！！
现将第五章相关内容及程序在附上。。。
