[求助]
为什么石墨烯量子点的拉曼光谱变宽？ 已有1人参与
|

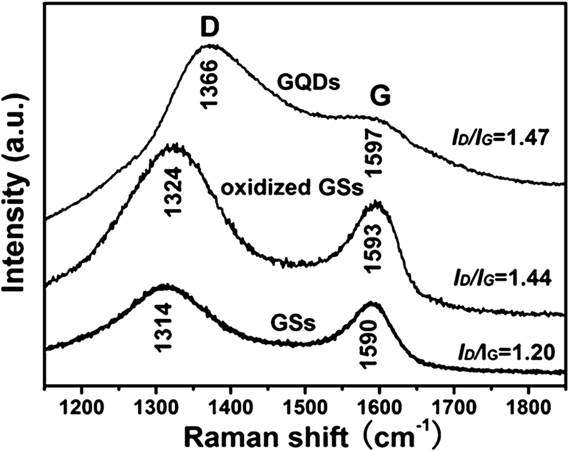

真诚请教各位，在测试GQDs的拉曼光谱时，它的拉曼峰貌似要比其原料（碳纤维、石墨烯）更宽，原因是什么呢？如图 图片2.jpg |
回复此楼» 猜你喜欢
求助WO3.cif文件 对应PDF卡片 43-1035，单斜晶系 , P21/n 。
已经有2人回复
-
稀土发光分析｜核壳结构｜寿命拟合
已经有13人回复
-
金属材料论文润色/翻译怎么收费?
已经有177人回复
-
稀土发光分析｜核壳结构｜寿命拟合
已经有6人回复
-
稀土发光分析｜核壳结构｜寿命拟合
已经有0人回复
-
稀土发光分析｜核壳结构｜寿命拟合
已经有0人回复
-
26 届青岛大学纺织化学与染整工程硕士（液体纳米分散染料方向）求申博建议
已经有4人回复
-
26 届青岛大学纺织化学与染整工程（液体纳米分散染料）求浙理工纺织 / 材料博导名额
已经有1人回复
-
敢问Acta Pharmaceutica Sinica B with Editor 三周了，能是什么情况？
已经有0人回复
-
求助 CeO2 Fe3O4 Cu2S CoFe2O4 标准卡 Jade 导出的数据
已经有0人回复
» 本主题相关商家推荐: (我也要在这里推广)
【答案】应助回帖
★ ★ ★ ★ ★ ★ ★ ★ ★ ★
zhwenk: 金币+10, ★★★★★最佳答案, 谢谢回答！非常好！ 2015-09-22 19:55:57
zhwenk: 金币+10, ★★★★★最佳答案, 谢谢回答！非常好！ 2015-09-22 19:55:57
| Generally, the broadening of the D peak is correlated to a distribution of sp2 clusters with different orders and dimensions, and the width of the G peak is proportional to the bond-angle disorder at sp2 sites, that is, both D and G peaks FWHM broaden due to disorder (Phys. Rev. B, 2000, 61, 14095; Solid State Commun., 2007, 143, 47). During the GQDs preparation, a large amount of surface defects including carbonyl, carboxyl, hydroxyl, and epoxy groups were introduced to the edges and onto the basal plane, and more hydroxyl defects are formed in rGQDs. Thus, it is the increase of disorders in GQDs that lead to the broadening of D and G peaks. These results also agree with HR-TEM observation, in which the short range order and a loss of long distance translational periodicity is always found. On the other hand, this particular broadening in the Raman bands could be due to the relaxation of the double-resonance Raman selection rules associated with the random orientation of GQDs with respect to each other (Appl. Phys. Lett., 2013, 102, 53108). |
2楼2015-09-22 19:49:18
