[求助] 焊接热分析出现这种问题怎么解决？

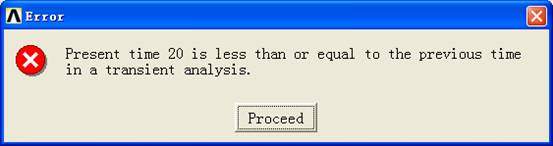

我用一块平板，在上面堆焊，模拟焊接温度分布，求解过程出现这种错误提示，弄了半天，也不知是怎么回事，请问各位这个是什么原因？
以下是file里的命令：不好意思，我的金币数不多，跪谢了！
BATCH
/COM,ANSYS RELEASE 14.0    UP20111024       16:42:48    05/05/2014
RESUME,'ciaochicun25','db','H:/ANSYS'
/COM,ANSYS RELEASE 14.0    UP20111024       16:42:48    05/05/2014
/SOLU
!*
TUNIF,20,
FLST,2,18,5,ORDE,6
FITEM,2,1
FITEM,2,-4
FITEM,2,7
FITEM,2,-9
FITEM,2,11
FITEM,2,-21
/GO
!*
SFA,P51X,1,CONV,30,20
FLST,2,2,5,ORDE,2
FITEM,2,5
FITEM,2,10
/GO
!*
!*
SFA,P51X,1,HFLUX, %GAOSI%
!*
TIME,L/V
AUTOTS,-1
NSUBST,50,50,50,1
KBC,0
!*
TSRES,ERASE
LSWRITE,1,
!*
TIME,50
AUTOTS,-1
NSUBST,30,30,30,1
KBC,0
!*
TSRES,ERASE
LSWRITE,2,
!*
TIME,1100
AUTOTS,-1
NSUBST,105,105,105,1
KBC,0
!*
TSRES,ERASE
LSWRITE,3,
! solve
/BATCH
/COM,ANSYS RELEASE 14.0    UP20111024       21:30:09    05/05/2014
/input,menust,tmp,'',,,,,,,,,,,,,,,,1
/COM,ANSYS RELEASE 14.0    UP20111024       21:30:10    05/05/2014
/GRA,POWER
/GST,ON
/PLO,INFO,3
/GRO,CURL,ON
/CPLANE,1
/REPLOT,RESIZE
WPSTYLE,,,,,,,,0
/REPLOT,RESIZE
EPLOT
APLOT
LPLOT
APLOT
!*
/NOPR
KEYW,PR_SET,1
KEYW,PR_STRUC,1
KEYW,PR_THERM,1
KEYW,PR_FLUID,0
KEYW,PR_ELMAG,0
KEYW,MAGNOD,0
KEYW,MAGEDG,0
KEYW,MAGHFE,0
KEYW,MAGELC,0
KEYW,PR_MULTI,1
KEYW,PR_CFD,0
/GO
!*
/COM,
/COM,Preferences for GUI filtering have been set to display:
/COM,  Structural
/COM,  Thermal
!*
/PREP7
!*
LPLOT
/REPLOT
LPLOT
/REPLOT
!*
FINISH
! /EXIT,NOSAV
/BATCH
/COM,ANSYS RELEASE 14.0    UP20111024       13:57:33    05/06/2014
/input,menust,tmp,'',,,,,,,,,,,,,,,,1
/COM,ANSYS RELEASE 14.0    UP20111024       13:57:33    05/06/2014
/GRA,POWER
/GST,ON
/PLO,INFO,3
/GRO,CURL,ON
/CPLANE,1
/REPLOT,RESIZE
WPSTYLE,,,,,,,,0
APLOT
APLOT
/REPLOT
/PREP7
!*
!*
K,1,0,0,0,
*SET,I        , 160
*SET,H        , 5000000000E-03
*SET,W        ,0.1
*SET,Q        , U*I*YITA
*SET,H        , 0.006
*SET,QM       , 27284509.2
/PNUM,KP,1
/PNUM,LINE,0
/PNUM,AREA,1
/PNUM,VOLU,0
/PNUM,NODE,0
/PNUM,TABN,0
/PNUM,SVAL,0
/NUMBER,0
!*
/PNUM,ELEM,0
/REPLOT
!*
K,2,0,0.1,0,
K,3,-0.05*0.15,0.1,0,
K,4,-0.05*0.3,0.1,0,
K,5,-0.05*5,0.1,0,
KDELE,       5
K,5,-0.05*0.5,0.1,0,
K,6,-0.05,0.1,0,
K,7,-0.05,0,0,
K,8,-0.05*0.5,0,0,
K,8,-0.05*0.3,0,0,
KDELE,       8
K,8,-0.05*0.5,0,0,
K,9,-0.05*0.3,0,0,
K,10,-0.05*0.15,0,0,
K,10,-0.05*0.15,0,0,
/VIEW,1,1,1,1
/ANG,1
/REP,FAST
FLST,2,4,3
FITEM,2,2
FITEM,2,1
FITEM,2,10
FITEM,2,3
A,P51X
FLST,2,4,3
FITEM,2,3
FITEM,2,4
FITEM,2,9
FITEM,2,10
A,P51X
FLST,2,4,3
FITEM,2,5
FITEM,2,4
FITEM,2,9
FITEM,2,8
A,P51X
FLST,2,4,3
FITEM,2,5
FITEM,2,6
FITEM,2,7
FITEM,2,8
A,P51X
ESIZE,0.0012,0,
MSHAPE,0,2D
MSHKEY,0
!*
CM,_Y,AREA
ASEL, , , ,       1
CM,_Y1,AREA
CHKMSH,'AREA'
CMSEL,S,_Y
!*
AMESH,_Y1
!*
CMDELE,_Y
CMDELE,_Y1
CMDELE,_Y2
!*
ESIZE,0.0025,0,
CM,_Y,AREA
ASEL, , , ,       2
CM,_Y1,AREA
CHKMSH,'AREA'
CMSEL,S,_Y
!*
AMESH,_Y1
!*
CMDELE,_Y
CMDELE,_Y1
CMDELE,_Y2
!*
ESIZE,0.005,0,
CM,_Y,AREA
ASEL, , , ,       3
CM,_Y1,AREA
CHKMSH,'AREA'
CMSEL,S,_Y
!*
AMESH,_Y1
!*
CMDELE,_Y
CMDELE,_Y1
CMDELE,_Y2
!*
ESIZE,0.0065,0,
CM,_Y,AREA
ASEL, , , ,       4
CM,_Y1,AREA
CHKMSH,'AREA'
CMSEL,S,_Y
!*
AMESH,_Y1
!*
CMDELE,_Y
CMDELE,_Y1
CMDELE,_Y2
!*
TYPE,   2
EXTOPT,ESIZE,4,0,
EXTOPT,ACLEAR,0
!*
EXTOPT,ATTR,0,0,0
MAT,1
REAL,_Z4
ESYS,0
!*
FLST,2,4,5,ORDE,2
FITEM,2,1
FITEM,2,-4
VEXT,P51X, , ,0,0,0.006,,,,
NUMMRG,ALL, , , ,LOW
FINISH
/SOL
!*
ANTYPE,4
!*
TRNOPT,FULL
LUMPM,0
!*
TUNIF,20,
FLST,2,18,5,ORDE,6
FITEM,2,1
FITEM,2,-4
FITEM,2,7
FITEM,2,-9
FITEM,2,11
FITEM,2,-21
/GO
!*
SFA,P51X,1,CONV,30,20
*DEL,_FNCNAME
*DEL,_FNCMTID
*DEL,_FNC_C1
*DEL,_FNC_C2
*DEL,_FNC_C3
*DEL,_FNCCSYS
*SET,_FNCNAME,'GAOSI'
*DIM,_FNC_C1,,1
*DIM,_FNC_C2,,1
*DIM,_FNC_C3,,1
*SET,_FNC_C1(1),Qm
*SET,_FNC_C2(1),V
*SET,_FNC_C3(1),R
*SET,_FNCCSYS,0
! /INPUT,gaosi.func,,,1
*DIM,%_FNCNAME%,TABLE,6,19,1,,,,%_FNCCSYS%
!
! Begin of equation: Qm*exp(-3*({X}^2+({Y}-V*{TIME})^2)/R^2)
*SET,%_FNCNAME%(0,0,1), 0.0, -999
*SET,%_FNCNAME%(2,0,1), 0.0
*SET,%_FNCNAME%(3,0,1), %_FNC_C1(1)%
*SET,%_FNCNAME%(4,0,1), %_FNC_C2(1)%
*SET,%_FNCNAME%(5,0,1), %_FNC_C3(1)%
*SET,%_FNCNAME%(6,0,1), 0.0
*SET,%_FNCNAME%(0,1,1), 1.0, -1, 0, 0, 0, 0, 0
*SET,%_FNCNAME%(0,2,1), 0.0, -2, 0, 1, 0, 0, -1
*SET,%_FNCNAME%(0,3,1),   0, -3, 0, 1, -1, 2, -2
*SET,%_FNCNAME%(0,4,1), 0.0, -1, 0, 3, 0, 0, -3
*SET,%_FNCNAME%(0,5,1), 0.0, -2, 0, 1, -3, 3, -1
*SET,%_FNCNAME%(0,6,1), 0.0, -1, 0, 2, 0, 0, 2
*SET,%_FNCNAME%(0,7,1), 0.0, -3, 0, 1, 2, 17, -1
*SET,%_FNCNAME%(0,8,1), 0.0, -1, 0, 1, 18, 3, 1
*SET,%_FNCNAME%(0,9,1), 0.0, -4, 0, 1, 3, 2, -1
*SET,%_FNCNAME%(0,10,1), 0.0, -1, 0, 2, 0, 0, -4
*SET,%_FNCNAME%(0,11,1), 0.0, -5, 0, 1, -4, 17, -1
*SET,%_FNCNAME%(0,12,1), 0.0, -1, 0, 1, -3, 1, -5
*SET,%_FNCNAME%(0,13,1), 0.0, -3, 0, 1, -2, 3, -1
*SET,%_FNCNAME%(0,14,1), 0.0, -1, 0, 2, 0, 0, 19
*SET,%_FNCNAME%(0,15,1), 0.0, -2, 0, 1, 19, 17, -1
*SET,%_FNCNAME%(0,16,1), 0.0, -1, 0, 1, -3, 4, -2
*SET,%_FNCNAME%(0,17,1), 0.0, -1, 7, 1, -1, 0, 0
*SET,%_FNCNAME%(0,18,1), 0.0, -2, 0, 1, 17, 3, -1
*SET,%_FNCNAME%(0,19,1), 0.0, 99, 0, 1, -2, 0, 0
! End of equation: Qm*exp(-3*({X}^2+({Y}-V*{TIME})^2)/R^2)
!-->
FLST,2,2,5,ORDE,2
FITEM,2,5
FITEM,2,10
/GO
!*
!*
SFA,P51X,1,HFLUX, %GAOSI%
!*
OUTRES,ALL,ALL,
!*
TIME,L/V
AUTOTS,-1
NSUBST,50,50,50,1
KBC,0
!*
TSRES,ERASE
LSWRITE,1,
!*
TIME,20
AUTOTS,-1
NSUBST,20,20,20,1
KBC,0
!*
TSRES,ERASE
LSWRITE,2,
!*
TIME,50
AUTOTS,-1
NSUBST,30,30,30,1
KBC,0
!*
TSRES,ERASE
LSWRITE,3,
!*
TIME,1100
AUTOTS,-1
NSUBST,105,105,105,1
KBC,0
!*
TSRES,ERASE
LSWRITE,4,
LSSOLVE,1,4,1,
FINISH
/POST1
SET,LIST,999
/DIST,1,0.924021086472,1
/REP,FAST
/DIST,1,0.924021086472,1
/REP,FAST
SET,,, ,,, ,1
!*
/EFACET,1
PLNSOL, TEMP,, 0
/DIST,1,0.924021086472,1
/REP,FAST
/DIST,1,0.924021086472,1
/REP,FAST
/DIST,1,0.924021086472,1
/REP,FAST
/DIST,1,0.924021086472,1
/REP,FAST
/DIST,1,0.924021086472,1
/REP,FAST
/DIST,1,0.924021086472,1
/REP,FAST
/DIST,1,0.924021086472,1
/REP,FAST
/DIST,1,0.924021086472,1
/REP,FAST
/DIST,1,0.924021086472,1
/REP,FAST
/DIST,1,0.924021086472,1
/REP,FAST
/DIST,1,0.924021086472,1
/REP,FAST
/DIST,1,0.924021086472,1
/REP,FAST
/DIST,1,0.924021086472,1
/REP,FAST
/DIST,1,0.924021086472,1
/REP,FAST
/DIST,1,0.924021086472,1
/REP,FAST
/DIST,1,0.924021086472,1
/REP,FAST
/DIST,1,0.924021086472,1
/REP,FAST
/DIST,1,0.924021086472,1
/REP,FAST
/DIST,1,0.924021086472,1
/REP,FAST
/DIST,1,0.924021086472,1
/REP,FAST
/DIST,1,0.924021086472,1
/REP,FAST
/DIST,1,0.924021086472,1
/REP,FAST
/DIST,1,0.924021086472,1
/REP,FAST
/DIST,1,0.924021086472,1
/REP,FAST
/DIST,1,0.924021086472,1
/REP,FAST
/DIST,1,0.924021086472,1
/REP,FAST
FINISH
/POST26
FILE,'ciaochicun25','rth','.'
/UI,COLL,1
NUMVAR,200
SOLU,191,NCMIT
STORE,MERGE
FILLDATA,191,,,,1,1
REALVAR,191,191
XVAR,1
PLVAR,1,
/XRANGE, 1,20
FINISH
! /EXIT,NOSAV
/BATCH
/COM,ANSYS RELEASE 14.0    UP20111024       14:17:33    05/06/2014
/input,menust,tmp,'',,,,,,,,,,,,,,,,1
/COM,ANSYS RELEASE 14.0    UP20111024       14:17:33    05/06/2014
/GRA,POWER
/GST,ON
/PLO,INFO,3
/GRO,CURL,ON
/CPLANE,1
/REPLOT,RESIZE
WPSTYLE,,,,,,,,0
/PREP7
FINISH
/SOL
FINISH
/PREP7
K,1,0,0,0,
K,2,0,0.1,0,
K,3,-0.025*0.15,0.1,0,
K,4,-0.025*0.3,0.1,0,
K,5,-0.025*0.5,0.1,0,
K,6,-0.025,0.1,0,
K,7,-0.025,0,0,
K,8,-0.025*0.5,0,0,
K,9,-0.025*0.3,0,0,
K,10,-0.025*0.15,0,0,
/VIEW,1,1,1,1
/ANG,1
/REP,FAST
SAVE
FLST,2,4,3
FITEM,2,2
FITEM,2,1
FITEM,2,10
FITEM,2,3
A,P51X
FLST,2,4,3
FITEM,2,10
FITEM,2,9
FITEM,2,4
FITEM,2,3
A,P51X
FLST,2,4,3
FITEM,2,4
FITEM,2,5
FITEM,2,8
FITEM,2,10
A,P51X
FLST,2,4,3
FITEM,2,8
FITEM,2,7
FITEM,2,6
FITEM,2,5
A,P51X
/DIST,1,0.924021086472,1
/REP,FAST
/DIST,1,0.924021086472,1
/REP,FAST
/DIST,1,0.924021086472,1
/REP,FAST
/DIST,1,1.08222638492,1
/REP,FAST
/DIST,1,1.08222638492,1
/REP,FAST
/DIST,1,1.08222638492,1
/REP,FAST
APLOT
/DIST,1,0.924021086472,1
/REP,FAST
/DIST,1,0.924021086472,1
/REP,FAST
/DIST,1,0.924021086472,1
/REP,FAST
/DIST,1,0.924021086472,1
/REP,FAST
/DIST,1,0.924021086472,1
/REP,FAST
/DIST,1,1.08222638492,1
/REP,FAST
ADELE,       2
/DIST,1,0.924021086472,1
/REP,FAST
/DIST,1,1.08222638492,1
/REP,FAST
/DIST,1,1.08222638492,1
/REP,FAST
/DIST,1,1.08222638492,1
/REP,FAST
/DIST,1,1.08222638492,1
/REP,FAST
/DIST,1,1.08222638492,1
/REP,FAST
ADELE,       3
/DIST,1,0.924021086472,1
/REP,FAST
KPLOT
APLOT
FLST,2,4,3
FITEM,2,3
FITEM,2,10
FITEM,2,9
FITEM,2,4
A,P51X
FLST,2,4,3
FITEM,2,4
FITEM,2,5
FITEM,2,8
FITEM,2,9
A,P51X
/DIST,1,0.924021086472,1
/REP,FAST
/DIST,1,0.924021086472,1
/REP,FAST
/DIST,1,1.08222638492,1
/REP,FAST
/DIST,1,1.08222638492,1
/REP,FAST
/DIST,1,1.08222638492,1
/REP,FAST
SAVE
SAVE
ESIZE,0.001,0,
MSHAPE,0,2D
MSHKEY,0
!*
CM,_Y,AREA
ASEL, , , ,       1
CM,_Y1,AREA
CHKMSH,'AREA'
CMSEL,S,_Y
!*
AMESH,_Y1
!*
CMDELE,_Y
CMDELE,_Y1
CMDELE,_Y2
!*
ESIZE,0.002,0,
CM,_Y,AREA
ASEL, , , ,       2
CM,_Y1,AREA
CHKMSH,'AREA'
CMSEL,S,_Y
!*
AMESH,_Y1
!*
CMDELE,_Y
CMDELE,_Y1
CMDELE,_Y2
!*
ESIZE,0.0035,0,
CM,_Y,AREA
ASEL, , , ,       3
CM,_Y1,AREA
CHKMSH,'AREA'
CMSEL,S,_Y
!*
AMESH,_Y1
!*
CMDELE,_Y
CMDELE,_Y1
CMDELE,_Y2
!*
ESIZE,0.0055,0,
CM,_Y,AREA
ASEL, , , ,       4
CM,_Y1,AREA
CHKMSH,'AREA'
CMSEL,S,_Y
!*
AMESH,_Y1
!*
CMDELE,_Y
CMDELE,_Y1
CMDELE,_Y2
!*
TYPE,   2
EXTOPT,ESIZE,4,0,
EXTOPT,ACLEAR,0
!*
EXTOPT,ATTR,0,0,0
MAT,1
REAL,_Z4
ESYS,0
!*
FLST,2,4,5,ORDE,2
FITEM,2,1
FITEM,2,-4
VEXT,P51X, , ,0,0,0.002,,,,
NUMMRG,ALL, , , ,LOW
FINISH
/SOL
!*
ANTYPE,4
!*
TRNOPT,FULL
LUMPM,0
!*
TUNIF,20,
*DEL,_FNCNAME
*DEL,_FNCMTID
*DEL,_FNC_C1
*DEL,_FNC_C2
*DEL,_FNC_C3
*DEL,_FNCCSYS
*SET,_FNCNAME,'gaosi'
*DIM,_FNC_C1,,1
*DIM,_FNC_C2,,1
*DIM,_FNC_C3,,1
*SET,_FNC_C1(1),Qm
*SET,_FNC_C2(1),V
*SET,_FNC_C3(1),r
*SET,_FNCCSYS,0
! /INPUT,gaosi.func,,,1
*DIM,%_FNCNAME%,TABLE,6,19,1,,,,%_FNCCSYS%
!
! Begin of equation: Qm*exp(-3*({X}^2+({Y}-V*{TIME})^2)/R^2)
*SET,%_FNCNAME%(0,0,1), 0.0, -999
*SET,%_FNCNAME%(2,0,1), 0.0
*SET,%_FNCNAME%(3,0,1), %_FNC_C1(1)%
*SET,%_FNCNAME%(4,0,1), %_FNC_C2(1)%
*SET,%_FNCNAME%(5,0,1), %_FNC_C3(1)%
*SET,%_FNCNAME%(6,0,1), 0.0
*SET,%_FNCNAME%(0,1,1), 1.0, -1, 0, 0, 0, 0, 0
*SET,%_FNCNAME%(0,2,1), 0.0, -2, 0, 1, 0, 0, -1
*SET,%_FNCNAME%(0,3,1),   0, -3, 0, 1, -1, 2, -2
*SET,%_FNCNAME%(0,4,1), 0.0, -1, 0, 3, 0, 0, -3
*SET,%_FNCNAME%(0,5,1), 0.0, -2, 0, 1, -3, 3, -1
*SET,%_FNCNAME%(0,6,1), 0.0, -1, 0, 2, 0, 0, 2
*SET,%_FNCNAME%(0,7,1), 0.0, -3, 0, 1, 2, 17, -1
*SET,%_FNCNAME%(0,8,1), 0.0, -1, 0, 1, 18, 3, 1
*SET,%_FNCNAME%(0,9,1), 0.0, -4, 0, 1, 3, 2, -1
*SET,%_FNCNAME%(0,10,1), 0.0, -1, 0, 2, 0, 0, -4
*SET,%_FNCNAME%(0,11,1), 0.0, -5, 0, 1, -4, 17, -1
*SET,%_FNCNAME%(0,12,1), 0.0, -1, 0, 1, -3, 1, -5
*SET,%_FNCNAME%(0,13,1), 0.0, -3, 0, 1, -2, 3, -1
*SET,%_FNCNAME%(0,14,1), 0.0, -1, 0, 2, 0, 0, 19
*SET,%_FNCNAME%(0,15,1), 0.0, -2, 0, 1, 19, 17, -1
*SET,%_FNCNAME%(0,16,1), 0.0, -1, 0, 1, -3, 4, -2
*SET,%_FNCNAME%(0,17,1), 0.0, -1, 7, 1, -1, 0, 0
*SET,%_FNCNAME%(0,18,1), 0.0, -2, 0, 1, 17, 3, -1
*SET,%_FNCNAME%(0,19,1), 0.0, 99, 0, 1, -2, 0, 0
! End of equation: Qm*exp(-3*({X}^2+({Y}-V*{TIME})^2)/R^2)
!-->
FLST,2,18,5,ORDE,6
FITEM,2,1
FITEM,2,-4
FITEM,2,7
FITEM,2,-9
FITEM,2,11
FITEM,2,-21
/GO
!*
SFA,P51X,1,CONV,30,20
FLST,2,2,5,ORDE,2
FITEM,2,5
FITEM,2,10
/GO
!*
!*
SFA,P51X,1,HFLUX, %GAOSI%
!*
OUTRES,ALL,ALL,
!*
TIME,L/V
AUTOTS,-1
NSUBST,50,50,50,1
KBC,0
!*
TSRES,ERASE
LSWRITE,1,
!*
TIME,20
AUTOTS,-1
NSUBST,20,20,20,1
KBC,0
!*
TSRES,ERASE
LSWRITE,2,
!*
TIME,50
AUTOTS,-1
NSUBST,30,30,30,1
KBC,0
!*
TSRES,ERASE
LSWRITE,3,
!*
TIME,1100
AUTOTS,-1
NSUBST,105,105,105,1
KBC,0
!*
TSRES,ERASE
LSWRITE,4,
LSSOLVE,1,4,1,
FINISH
/POST1
SET,LAST
!*
/EFACET,1
PLNSOL, TEMP,, 0
SET,LIST,999
SET,,, ,,, ,2
!*
/EFACET,1
PLNSOL, TEMP,, 0
!*
PLESOL, HEAT,, 0
!*
/EFACET,1
PLNSOL, TEMP,, 0
FINISH
/POST26
FILE,'ciaochicun25','rth','.'
/UI,COLL,1
NUMVAR,200
SOLU,191,NCMIT
STORE,MERGE
FILLDATA,191,,,,1,1
REALVAR,191,191
XVAR,1
PLVAR,1,
/XRANGE, 1,10
XVAR,1
PLVAR,1,
XVAR,1
PLVAR,1,
/XRANGE,DEFAULT
VPLOT
FINISH
! /EXIT,NOSAV
/BATCH
/COM,ANSYS RELEASE 14.0    UP20111024       14:43:39    05/06/2014
/input,menust,tmp,'',,,,,,,,,,,,,,,,1
/COM,ANSYS RELEASE 14.0    UP20111024       14:43:39    05/06/2014
/GRA,POWER
/GST,ON
/PLO,INFO,3
/GRO,CURL,ON
/CPLANE,1
/REPLOT,RESIZE
WPSTYLE,,,,,,,,0
APLOT
EPLOT
/SOLU
FINISH
/PREP7
ESIZE,0.001,0,
MSHAPE,0,2D
MSHKEY,0
!*
CM,_Y,AREA
ASEL, , , ,       1
CM,_Y1,AREA
CHKMSH,'AREA'
CMSEL,S,_Y
!*
AMESH,_Y1
!*
CMDELE,_Y
CMDELE,_Y1
CMDELE,_Y2
!*
ESIZE,0.0018,0,
CM,_Y,AREA
ASEL, , , ,       2
CM,_Y1,AREA
CHKMSH,'AREA'
CMSEL,S,_Y
!*
AMESH,_Y1
!*
CMDELE,_Y
CMDELE,_Y1
CMDELE,_Y2
!*
ACLEAR,       2
ESIZE,0.0015,0,
CM,_Y,AREA
ASEL, , , ,       2
CM,_Y1,AREA
CHKMSH,'AREA'
CMSEL,S,_Y
!*
AMESH,_Y1
!*
CMDELE,_Y
CMDELE,_Y1
CMDELE,_Y2
!*
ESIZE,0.003,0,
CM,_Y,AREA
ASEL, , , ,       3
CM,_Y1,AREA
CHKMSH,'AREA'
CMSEL,S,_Y
!*
AMESH,_Y1
!*
CMDELE,_Y
CMDELE,_Y1
CMDELE,_Y2
!*
ESIZE,0.005,0,
ESIZE,0.005,0,
ESIZE,0.005,0,
ESIZE,0.004,0,
/UI,MESH,OFF
ESIZE,0.00,0,
/UI,MESH,OFF
FINISH
! /EXIT,MODEL
/BATCH
/COM,ANSYS RELEASE 14.0    UP20111024       14:49:55    05/06/2014
/input,menust,tmp,'',,,,,,,,,,,,,,,,1
/COM,ANSYS RELEASE 14.0    UP20111024       14:49:55    05/06/2014
/GRA,POWER
/GST,ON
/PLO,INFO,3
/GRO,CURL,ON
/CPLANE,1
/REPLOT,RESIZE
WPSTYLE,,,,,,,,0
EPLOT
/PREP7
ESIZE,0.005,0,
CM,_Y,AREA
ASEL, , , ,       4
CM,_Y1,AREA
CHKMSH,'AREA'
CMSEL,S,_Y
!*
AMESH,_Y1
!*
CMDELE,_Y
CMDELE,_Y1
CMDELE,_Y2
!*
SAVE
SAVE
TYPE,   2
EXTOPT,ESIZE,0,0,
EXTOPT,ACLEAR,0
!*
EXTOPT,ATTR,0,0,0
MAT,1
REAL,_Z4
ESYS,0
!*
FLST,2,4,5,ORDE,2
FITEM,2,1
FITEM,2,-4
VEXT,P51X, , ,0,0,0.002,,,,
EPLOT
/VIEW,1,1,1,1
/ANG,1
/REP,FAST
TYPE,   2
EXTOPT,ESIZE,4,0,
EXTOPT,ACLEAR,0
!*
EXTOPT,ATTR,0,0,0
MAT,1
REAL,_Z4
ESYS,0
!*
VPLOT
FLST,2,4,6,ORDE,2
FITEM,2,1
FITEM,2,-4
VDELE,P51X
EPLOT
TYPE,   2
EXTOPT,ESIZE,4,0,
EXTOPT,ACLEAR,0
!*
EXTOPT,ATTR,0,0,0
MAT,1
REAL,_Z4
ESYS,0
!*
FLST,2,4,5,ORDE,2
FITEM,2,1
FITEM,2,-4
VEXT,P51X, , ,0,0,0.002,,,,
NUMMRG,ALL, , , ,LOW
FINISH
/SOL
!*
ANTYPE,4
!*
TRNOPT,FULL
LUMPM,0
!*
TUNIF,20,
*DEL,_FNCNAME
*DEL,_FNCMTID
*DEL,_FNC_C1
*DEL,_FNC_C2
*DEL,_FNC_C3
*DEL,_FNCCSYS
*SET,_FNCNAME,'gaosi'
*DIM,_FNC_C1,,1
*DIM,_FNC_C2,,1
*DIM,_FNC_C3,,1
*SET,_FNC_C1(1),Qm
*SET,_FNC_C2(1),V
*SET,_FNC_C3(1),R
*SET,_FNCCSYS,0
! /INPUT,gaosi.func,,,1
*DIM,%_FNCNAME%,TABLE,6,19,1,,,,%_FNCCSYS%
!
! Begin of equation: Qm*exp(-3*({X}^2+({Y}-V*{TIME})^2)/R^2)
*SET,%_FNCNAME%(0,0,1), 0.0, -999
*SET,%_FNCNAME%(2,0,1), 0.0
*SET,%_FNCNAME%(3,0,1), %_FNC_C1(1)%
*SET,%_FNCNAME%(4,0,1), %_FNC_C2(1)%
*SET,%_FNCNAME%(5,0,1), %_FNC_C3(1)%
*SET,%_FNCNAME%(6,0,1), 0.0
*SET,%_FNCNAME%(0,1,1), 1.0, -1, 0, 0, 0, 0, 0
*SET,%_FNCNAME%(0,2,1), 0.0, -2, 0, 1, 0, 0, -1
*SET,%_FNCNAME%(0,3,1),   0, -3, 0, 1, -1, 2, -2
*SET,%_FNCNAME%(0,4,1), 0.0, -1, 0, 3, 0, 0, -3
*SET,%_FNCNAME%(0,5,1), 0.0, -2, 0, 1, -3, 3, -1
*SET,%_FNCNAME%(0,6,1), 0.0, -1, 0, 2, 0, 0, 2
*SET,%_FNCNAME%(0,7,1), 0.0, -3, 0, 1, 2, 17, -1
*SET,%_FNCNAME%(0,8,1), 0.0, -1, 0, 1, 18, 3, 1
*SET,%_FNCNAME%(0,9,1), 0.0, -4, 0, 1, 3, 2, -1
*SET,%_FNCNAME%(0,10,1), 0.0, -1, 0, 2, 0, 0, -4
*SET,%_FNCNAME%(0,11,1), 0.0, -5, 0, 1, -4, 17, -1
*SET,%_FNCNAME%(0,12,1), 0.0, -1, 0, 1, -3, 1, -5
*SET,%_FNCNAME%(0,13,1), 0.0, -3, 0, 1, -2, 3, -1
*SET,%_FNCNAME%(0,14,1), 0.0, -1, 0, 2, 0, 0, 19
*SET,%_FNCNAME%(0,15,1), 0.0, -2, 0, 1, 19, 17, -1
*SET,%_FNCNAME%(0,16,1), 0.0, -1, 0, 1, -3, 4, -2
*SET,%_FNCNAME%(0,17,1), 0.0, -1, 7, 1, -1, 0, 0
*SET,%_FNCNAME%(0,18,1), 0.0, -2, 0, 1, 17, 3, -1
*SET,%_FNCNAME%(0,19,1), 0.0, 99, 0, 1, -2, 0, 0
! End of equation: Qm*exp(-3*({X}^2+({Y}-V*{TIME})^2)/R^2)
!-->
SAVE
SAVE
SAVE
SAVE
FLST,2,18,5,ORDE,6
FITEM,2,1
FITEM,2,-4
FITEM,2,7
FITEM,2,-9
FITEM,2,11
FITEM,2,-21
/GO
!*
SFA,P51X,1,CONV,30,20
FLST,2,3,5,ORDE,3
FITEM,2,5
FITEM,2,-6
FITEM,2,10
/GO
!*
!*
SFA,P51X,1,HFLUX, %GAOSI%
!*
OUTRES,ALL,ALL,
!*
TIME,L/V
AUTOTS,-1
NSUBST,20,20,20,1
KBC,0
!*
TSRES,ERASE
LSWRITE,1,
!*
TIME,50
AUTOTS,-1
NSUBST,30,30,30,1
KBC,0
!*
TSRES,ERASE
LSWRITE,2,
!*
TIME,100
AUTOTS,-1
NSUBST,50,50,50,1
KBC,0
!*
TSRES,ERASE
LSWRITE,3,
!*
TIME,1100
AUTOTS,-1
NSUBST,105,105,105,1
KBC,0
!*
TSRES,ERASE
LSWRITE,4,
LSSOLVE,1,4,1,

焊接热分析出现这种问题怎么解决？
回复此楼

» 猜你喜欢

» 本主题相关价值贴推荐，对您同样有帮助:
1楼 2014-05-06 15:08:28
已阅   回复此楼   关注TA 给TA发消息 送TA红花 TA的回帖

htbbzzg

铁杆木虫 (著名写手)
你的命令流既不完整，又有很多重复或多余的内容，实在无法帮你分析。
请你把命令流整理一下，只留下最后求解有问题的那一部分内容，并补充后面用到，但是在前面定义的参数，如第一个 Time, L/V 中的 L 和 V。
赞一下 回复此楼
2楼2014-05-06 17:42:11
已阅   回复此楼   关注TA 给TA发消息 送TA红花 TA的回帖

私奔怎么了

新虫 (初入文坛)
确实无法分析，请后续做补充....
赞一下 回复此楼
3楼2014-05-15 18:55:53
已阅   回复此楼   关注TA 给TA发消息 送TA红花 TA的回帖

小左儿

银虫 (正式写手)
这个问题就是施加载荷时时间处理不得当
做ANSYS即使不是自己写命令流，也要即使从log file里面提取出来有用部分
赞一下 回复此楼
微信公众号：CAE技术分享
4楼2014-05-15 20:07:16
已阅   回复此楼   关注TA 给TA发消息 送TA红花 TA的回帖

niuniufu9

铁虫 (初入文坛)
引用回帖:
4楼: Originally posted by 小左儿 at 2014-05-15 20:07:16
这个问题就是施加载荷时时间处理不得当
做ANSYS即使不是自己写命令流，也要即使从log file里面提取出来有用部分

谢谢！重新设置了载荷步的时间。
赞一下 回复此楼
5楼2014-05-20 08:21:24
已阅   回复此楼   关注TA 给TA发消息 送TA红花 TA的回帖
相关版块跳转 我要订阅楼主 niuniufu9 的主题更新
51/1返回列表
普通表情 龙 兔 虎 猫
最具人气热帖推荐 [查看全部] 作者 回/看 最后发表
[基金申请] 听说今天filecode变了 +16 布布和一二 2026-08-06 30/1500 2026-08-06 21:37 by 虫友是什么虫
[基金申请] filecode +10 等待解的谜 2026-08-06 14/700 2026-08-06 21:16 by zhanghaozhu
[基金申请] 固定端突然变了，今天 +3 archvillain 2026-08-06 7/350 2026-08-06 21:05 by archvillain
[基金申请] filecode +8 布布和一二 2026-08-06 11/550 2026-08-06 20:41 by tangpu318
[基金申请] 大家散了吧，后缀研究没有意义，别浪费时间了，过好目前的每一天，不要焦虑 +5 Tide man 2026-08-06 6/300 2026-08-06 20:19 by 苏知砚
[基金申请] 基金中了 +4 laoda193707 2026-08-06 4/200 2026-08-06 18:56 by olivermiaoer
[有机交流] 一个有机合成实验室都需要哪些设备？ 50+3 kf2781974 2026-07-31 12/600 2026-08-06 15:11 by eddyin
[基金申请] 求各位大神看下 100+6 hpkpkpkp 2026-08-05 33/1650 2026-08-06 14:49 by zhiyanjiang
[教师之家] 咨询面上基金 +4 李长云 2026-07-31 7/350 2026-08-06 11:20 by 李长云
[基金申请] 影响面上的因素 +8 布布和一二 2026-08-05 11/550 2026-08-06 10:41 by 宝贝虫子
[基金申请] 8月时间戳变的，举个手。玩一下，释放压力 +9 archvillain 2026-08-04 11/550 2026-08-05 20:06 by wlwhappy
[基金申请] 面上再次挂了，太难了，躺也躺不了，倦也卷不过，小学校之殇！ +22 低垂的野花 2026-07-31 30/1500 2026-08-05 18:03 by 低垂的野花
[基金申请] 好消息？这个有何含义？？？ +8 Tide man 2026-08-05 10/500 2026-08-05 16:14 by xmuxiaoyu
[考博] 【2027博士申请】纳米药物递送方向 20+3 13586093586 2026-08-03 4/200 2026-08-05 09:59 by lfy8008
[基金申请] 有没有H口的？有收到消息的吗？ +3 超级海虾 2026-08-04 3/150 2026-08-04 17:26 by 学教育滴
[论文投稿] 十年后又回来了，论文投稿求助 +3 哈哈114477 2026-08-01 3/150 2026-08-04 15:40 by tegsgjy20
[基金申请] 纯娱乐，不喜欢勿喷 +7 Tide man 2026-08-04 10/500 2026-08-04 15:10 by loufangrui
[基金申请] 面上提前没消息，有中的吗 +14 archvillain 2026-08-02 18/900 2026-08-04 14:42 by archvillain
[基金申请] 娱乐 +4 Tide man 2026-08-03 4/200 2026-08-04 11:51 by wgch518
[基金申请] 什么时候能放榜呀？ +3 Jacob678 2026-08-03 3/150 2026-08-03 16:14 by gltch
信息提示
关闭
请填处理意见
关闭
