[求助] Compaq Visual Fortran v6.6 Professional运行后提示这样的信息，怎么办？求助

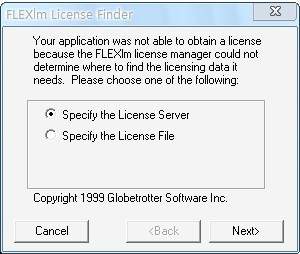

各位大神，Compaq Visual Fortran v6.6 Professional运行后提示这样的信息，怎么办？求指导。
附上程序代码
C    *****       TETRA3D          *****
C    ***  Three Dimensional Stress Analysis  ***
C    ***       Tetrahedral Elements       ***
   DIMENSION X(100,3),NOC(100,4),MAT(100),PM(10,3),NU(50),U(50)
   DIMENSION S(300,50),F(300),D(6,6),B(6,12),DB(6,12),QT(12)
   DIMENSION SE(12,12),STR(6),MPC(20,2),BT(20,3),DT(100)
   CHARACTER*16 FILE1, FILE2
   CHARACTER*81 DUMMY,TITLE
   IMAX = 300
   PRINT *, '*******    PROGRAM TETRA3D       *******'
   PRINT *, '* Three Dimensional Stress Analysis *'
   PRINT *, '*       Tetrahedral Elements          *'
   PRINT *, '* T.R.Chandrupatla and A.D.Belegundu *'
   PRINT *, '*******************************************'
   PRINT *, 'File Name for Input Data '
   READ '(A)', FILE1
   LINP=10
   OPEN (UNIT = 10, FILE = FILE1, STATUS = 'OLD')
   PRINT *, 'Give Name of Output File '
   READ '(A)', FILE2
   READ(LINP,'(A)') DUMMY
   READ(LINP,'(A)') TITLE
   READ(LINP,'(A)') DUMMY
   READ(LINP,*) NN, NE, NM, NDIM, NEN, NDN
   READ(LINP,'(A)') DUMMY
   READ(LINP,*) ND, NL, NMPC
C --- Material properties E, Nu, Alpha
   NPR = 3
C    ----- Total dof is  NQ
   NQ = NDN * NN
C ============  READ DATA FROM FILE  ===========
C    ----- Coordinates -----
   READ(LINP,'(A)') DUMMY
   DO 900 I = 1, NN
  900 READ (LINP, *) N, X(N,1), X(N,2), X(N,3)
C    ----- Connectivity, Material, Temp-change -----
   READ(LINP,'(A)') DUMMY
   DO 1000 I=1,NE
   READ (LINP, *) N,NOC(N,1),NOC(N,2),NOC(N,3),NOC(N,4),MAT(N),DT(N)
1000 CONTINUE
C ----- Specified Displacements -----
   READ(LINP,'(A)') DUMMY
   DO 1010  I = 1, ND
1010 READ (LINP, *) NU(I), U(I)
C    ----- Component Loads -----
   READ(LINP,'(A)') DUMMY
C    ----- First initialize and then read loads -----
   DO 1015 I=1, NQ
1015 F(I) = 0
   DO 1020  I = 1, NL
1020 READ (LINP, *) N, F(N)
C    ----- Material Properties -----
   READ(LINP,'(A)') DUMMY
   DO 1030  I = 1, NM
1030 READ (LINP, *) N, (PM(N, J), J = 1, NPR)
C    ----- Multi-point Constraints B1*Qi+B2*Qj=B0
   IF (NMPC .GT. 0) THEN
READ(LINP,'(A)') DUMMY
      DO 1040  I = 1, NMPC
1040 READ (LINP,*) BT(I,1),MPC(I,1),BT(I,2),MPC(I,2),BT(I,3)
   END IF
   CLOSE(LINP)
C    ----- Bandwidth Evaluation -----
   NBW = 0
   DO 1050 I = 1, NE
      NMIN = NOC(I, 1)
      NMAX = NOC(I, 1)
      DO 1045 J = 2, NEN
         IF (NMIN .GT. NOC(I, J)) NMIN = NOC(I, J)
         IF (NMAX .LT. NOC(I, J)) NMAX = NOC(I, J)
1045 CONTINUE
      NTMP = NDN * (NMAX - NMIN + 1)
      IF (NBW .LT. NTMP) NBW = NTMP
1050 CONTINUE
   DO 1060  I = 1, NMPC
      NABS = ABS(MPC(I, 1) - MPC(I, 2)) + 1
      IF (NBW .LT. NABS) NBW = NABS
1060 CONTINUE
   PRINT *, 'Bandwidth = ', NBW
C ----- First initialize stiffness and Mass matrices
   DO 1070 I = 1, NQ
   DO 1070 J = 1, NBW
1070 S(I,J) = 0
C  ----- Global Stiffness Matrix -----
   DO 1090 N = 1, NE
      PRINT *, 'Forming Stiffness Matrix of Element ', N
   CALL DBMAT(N,B,D,DB,MAT,PM,X,NOC,DJ,AL,PNU)
C    --- Element Stiffness
      DO 1072 I = 1, 12
      DO 1072 J = 1, 12
      SE(I, J) = 0
      DO 1072 K = 1, 6
         SE(I, J) = SE(I, J) + B(K, I) * DB(K, J) * ABS(DJ) / 6
1072 CONTINUE
C    --- Temperature Load Vector QT()
      C = AL * DT(N)
      DO 1074 I = 1, 12
         DSUM = DB(1, I) + DB(2, I) + DB(3, I)
         QT(I) = C * ABS(DJ) * DSUM / 6
1074 CONTINUE
   PRINT *, '.... Placing in Global Locations'
      DO 1090  II = 1, NEN
         NRT = NDN * (NOC(N, II) - 1)
      DO 1090  IT = 1, NDN
            NR = NRT + IT
            I = NDN * (II - 1) + IT
            DO 1080  JJ = 1, NEN
               NCT = NDN * (NOC(N, JJ) - 1)
               DO 1080  JT = 1, NDN
                  J = NDN * (JJ - 1) + JT
                  NC = NCT + JT - NR + 1
                  IF (NC .GT. 0) THEN
                     S(NR, NC) = S(NR, NC) + SE(I, J)
                  END IF
1080          CONTINUE
      F(NR) = F(NR) + QT(I)
1090       CONTINUE
C    ----- Decide Penalty Parameter CNST -----
   CNST = 0
   DO 1100  I = 1, NQ
      IF (CNST .LT. S(I, 1)) CNST = S(I, 1)
1100 CONTINUE
   CNST = CNST * 10000
C ----- Modify for Boundary Conditions -----
C --- Displacement BC ---
   DO 1110  I = 1, ND
      N = NU(I)
      S(N, 1) = S(N, 1) + CNST
      F(N) = F(N) + CNST * U(I)
1110 CONTINUE
C --- Multi-point Constraints ---
   DO 1120  I = 1, NMPC
      I1 = MPC(I, 1)
      I2 = MPC(I, 2)
      S(I1, 1) = S(I1, 1) + CNST * BT(I, 1) * BT(I, 1)
      S(I2, 1) = S(I2, 1) + CNST * BT(I, 2) * BT(I, 2)
      IR = I1
      IF (IR .GT.I2) IR = I2
      IC = ABS(I2 - I1) + 1
      S(IR, IC) = S(IR, IC) + CNST * BT(I, 1) * BT(I, 2)
      F(I1) = F(I1) + CNST * BT(I, 1) * BT(I, 3)
      F(I2) = F(I2) + CNST * BT(I, 2) * BT(I, 3)
1120 CONTINUE
C ----- Equation Solving
   PRINT *, '.... Solving Equations'
   CALL BAND(S, F, IMAX, NBW, NQ)
   LOUT = 11
   OPEN (UNIT = 11, FILE = FILE2)
   WRITE(LOUT,'(1X,2A)') 'Output for Input Data from File ', FILE1
   PRINT *, 'Output for Input Data from File ', FILE1
   WRITE(LOUT,'(1X,A)')  TITLE
   PRINT *, TITLE
   PRINT *, 'Node#  X-Displ       Y-Displ       Z-Displ'
   WRITE(LOUT,'(1X,A)') 'Node#  X-Displ    Y-Displ    Z-Displ'
   WRITE(LOUT,'(1X,I4,3E15.4)') (I,F(3*I-2),F(3*I-1),F(3*I),I=1,NN)
   WRITE(*,'(1X,I4,3E15.4)') (I,F(3*I-2),F(3*I-1),F(3*I),I=1,NN)
C    ----- Reaction Calculation -----
   PRINT *, 'DOF#    Reaction'
   WRITE(LOUT,'(1X,A)')  'DOF#    Reaction'
   DO 1140  I = 1, ND
      N = NU(I)
      R = CNST * (U(I) - F(N))
      WRITE(*,'(1X,I4,E15.4)') N, R
      WRITE(LOUT,'(1X,I4,E15.4)') N, R
1140 CONTINUE
C --- Stress Calculations
   PI = 3.141593
   DO 1150 N = 1, NE
   CALL DBMAT(N,B,D,DB,MAT,PM,X,NOC,DJ,AL,PNU)
      CALL STRESS(F,AL,NOC,DT,N,D,DB,STR)
C --- Principal Stress Calculations
      AI1 = STR(1) + STR(2) + STR(3)
      AI21 = STR(1) * STR(2) + STR(2) * STR(3) + STR(3) * STR(1)
      AI22 = STR(4) * STR(4) + STR(5) * STR(5) + STR(6) * STR(6)
      AI2 = AI21 - AI22
      AI31 = STR(1) * STR(2) * STR(3) + 2 * STR(4) * STR(5) * STR(6)
      AI32 = STR(1)*STR(4)**2 + STR(2)*STR(5)**2 + STR(3)*STR(6)**2
      AI3 = AI31 - AI32
      C1 = AI2 - AI1**2 / 3
      C2 = -2 * (AI1 / 3)**3 + AI1 * AI2 / 3 - AI3
      C3 = 2 * SQRT(-C1 / 3)
      TH = -3 * C2 / (C1 * C3)
      TH2 = ABS(1 - TH * TH)
      IF (TH .EQ. 0) TH = PI / 2
      IF (TH .GT. 0) TH = ATAN(SQRT(TH2) / TH)
      IF (TH .LT. 0) TH = PI - ATAN(SQRT(TH2) / TH)
      TH = TH / 3
C    --- Principal Stresses
      P1 = AI1 / 3 + C3 * COS(TH)
      P2 = AI1 / 3 + C3 * COS(TH + 2 * PI / 3)
      P3 = AI1 / 3 + C3 * COS(TH + 4 * PI / 3)
      WRITE(LOUT,*) ' ELEMENT NO. '
      WRITE(LOUT,'(I5)') N
      WRITE(LOUT,*) '    SX          SY          SZ'
      WRITE(LOUT,'(3E15.4)') STR(1), STR(2), STR(3)
      WRITE(LOUT,*) '    TYZ          TXZ          TXY'
      WRITE(LOUT,'(3E15.4)') STR(4), STR(5), STR(6)
      WRITE(LOUT,*) ' Principal Stresses'
      WRITE(LOUT,*) '    P1          P2          P3'
      WRITE(LOUT,'(3E15.4)') P1, P2, P3
1150  CONTINUE
   CLOSE(LOUT)
   PRINT *, 'Results are in the file ',FILE2
   END

   SUBROUTINE DBMAT(N,B,D,DB,MAT,PM,X,NOC,DJ,AL,PNU)
   DIMENSION X(100,3),NOC(100,4),MAT(100),PM(10,3)
   DIMENSION D(6,6),B(6,12),DB(6,12)
C ----- D(), B() and DB() matrices
C --- First the D-Matrix
   M = MAT(N)
   E = PM(M, 1)
   PNU = PM(M, 2)
   AL = PM(M, 3)
   C4 = E / ((1 + PNU) * (1 - 2 * PNU))
   C1 = C4 * (1 - PNU)
   C2 = C4 * PNU
   C3 = .5 * E / (1 + PNU)
   DO 3000 I = 1, 6
   DO 3000 J = 1, 6
   D(I, J) = 0
3000 CONTINUE
   D(1, 1) = C1
   D(1, 2) = C2
   D(1, 3) = C2
   D(2, 1) = C2
   D(2, 2) = C1
   D(2, 3) = C2
   D(3, 1) = C2
   D(3, 2) = C2
   D(3, 3) = C1
   D(4, 4) = C3
   D(5, 5) = C3
   D(6, 6) = C3
C --- Strain-Displacement Matrix B()
   I1 = NOC(N, 1)
   I2 = NOC(N, 2)
   I3 = NOC(N, 3)
   I4 = NOC(N, 4)
   X14 = X(I1, 1) - X(I4, 1)
   X24 = X(I2, 1) - X(I4, 1)
   X34 = X(I3, 1) - X(I4, 1)
   Y14 = X(I1, 2) - X(I4, 2)
   Y24 = X(I2, 2) - X(I4, 2)
   Y34 = X(I3, 2) - X(I4, 2)
   Z14 = X(I1, 3) - X(I4, 3)
   Z24 = X(I2, 3) - X(I4, 3)
   Z34 = X(I3, 3) - X(I4, 3)
   DJ1 = X14 * (Y24 * Z34 - Z24 * Y34)
   DJ2 = Y14 * (Z24 * X34 - X24 * Z34)
   DJ3 = Z14 * (X24 * Y34 - Y24 * X34)
   DJ = DJ1 + DJ2 + DJ3
   A11 = (Y24 * Z34 - Z24 * Y34) / DJ
   A21 = (Z24 * X34 - X24 * Z34) / DJ
   A31 = (X24 * Y34 - Y24 * X34) / DJ
   A12 = (Y34 * Z14 - Z34 * Y14) / DJ
   A22 = (Z34 * X14 - X34 * Z14) / DJ
   A32 = (X34 * Y14 - Y34 * X14) / DJ
   A13 = (Y14 * Z24 - Z14 * Y24) / DJ
   A23 = (Z14 * X24 - X14 * Z24) / DJ
   A33 = (X14 * Y24 - Y14 * X24) / DJ
C ---  B Matrix
   DO 3010 I = 1, 6
   DO 3010 J = 1, 12
3010 B(I, J) = 0
   B(1, 1) = A11
   B(1, 4) = A12
   B(1, 7) = A13
   B(1, 10) = -A11 - A12 - A13
   B(2, 2) = A21
   B(2, 5) = A22
   B(2, 8) = A23
   B(2, 11) = -A21 - A22 - A23
   B(3, 3) = A31
   B(3, 6) = A32
   B(3, 9) = A33
   B(3, 12) = -A31 - A32 - A33
   B(4, 2) = A31
   B(4, 3) = A21
   B(4, 5) = A32
   B(4, 6) = A22
   B(4, 8) = A33
   B(4, 9) = A23
   B(4, 11) = B(3, 12)
   B(4, 12) = B(2, 11)
   B(5, 1) = A31
   B(5, 3) = A11
   B(5, 4) = A32
   B(5, 6) = A12
   B(5, 7) = A33
   B(5, 9) = A13
   B(5, 10) = B(3, 12)
   B(5, 12) = B(1, 10)
   B(6, 1) = A21
   B(6, 2) = A11
   B(6, 4) = A22
   B(6, 5) = A12
   B(6, 7) = A23
   B(6, 8) = A13
   B(6, 10) = B(2, 11)
   B(6, 11) = B(1, 10)
C --- DB Matrix DB = D*B
   DO 3020 I = 1, 6
   DO 3020 J = 1, 12
   DB(I, J) = 0
   DO 3020 K = 1, 6
3020 DB(I, J) = DB(I, J) + D(I, K) * B(K, J)
   RETURN
   END

   SUBROUTINE STRESS(F,AL,NOC,DT,N,D,DB,STR)
   DIMENSION F(300),NOC(100,4),D(6,6),DB(6,12),QT(12),STR(6),DT(100)
C --- Stress Evaluation (Element Nodal Displacements stored in QT() )
   DO 4000 I = 1, 4
      IN = 3 * (NOC(N, I) - 1)
      II = 3 * (I - 1)
      DO 4000 J = 1, 3
         QT(II + J) = F(IN + J)
4000 CONTINUE
         C1 = AL * DT(N)
         DO 4020 I = 1, 6
            STR(I) = 0
            DO 4010K = 1, 12
4010       STR(I) = STR(I) + DB(I, K) * QT(K)
4020    STR(I) = STR(I) - C1 * (D(I, 1) + D(I, 2) + D(I, 3))
   RETURN
   END

   SUBROUTINE BAND(A, B, IMAX, NBW, N)
C ----- Equation Solving Using Banded Storage
   DIMENSION A(IMAX,NBW), B(IMAX)
   N1 = N - 1
   PRINT *, '*** FORWARD ELIMINATION ***'
   DO 2100 K = 1, N1
   NK = N - K + 1
   IF (NK .GT. NBW) NK = NBW
   DO 2100 I = 2, NK
   C1 = A(K, I) / A(K, 1)
   I1 = K + I - 1
   DO 2000 J = I, NK
   J1 = J - I + 1
2000 A(I1, J1) = A(I1, J1) - C1 * A(K, J)
2100 B(I1) = B(I1) - C1 * B(K)
   PRINT *, '*** BACK SUBSTITUTION ***'
   B(N) = B(N) / A(N, 1)
   DO 2300 KK = 1, N1
   K = N - KK
   C1 = 1 / A(K, 1)
   B(K) = C1 * B(K)
   NK = N - K + 1
   IF (NK .GT. NBW) NK = NBW
   DO 2200 J = 2, NK
   B(K) = B(K) - C1 * A(K, J) * B(K + J - 1)
2200 CONTINUE
2300 CONTINUE
   RETURN
   END
