[求助] cfx柱塞泵边界设置问题,急求大神解答

cfx柱塞泵边界设置问题,急求大神解答

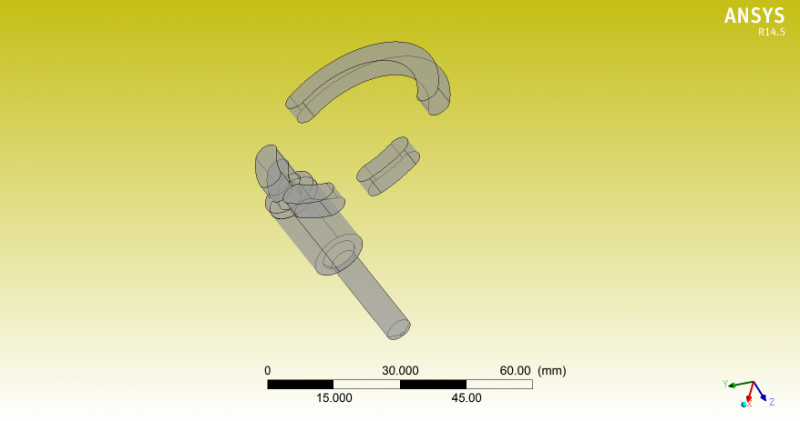

我的模型如图所示,上面四个流体区域(配流盘),下面一个油柱沿着圆形轨迹转动,三个小的作为进油口,一个长的作为出油口,都是圆弧形。
(懂的人看了应该明白,这是个轴向柱塞泵,模拟的就是柱塞运行一个圆周之内,吸油与排油的过程)
现在我的做法是将下面设置为一个subdomain,其z方向上按直线运动,x,y方向上有圆周运动,这些基本摸索的比较清楚,写了个ccl导入了。
关键存留的问题是上面配流盘区域与油体相接触平面如何设置边界?因为油体一直在动,所以油体时而与配流区域有接触,时而没有接触。设置为inlet和outlet的话,当油柱运行到没有接触的时候怎么办?
而且进入cfx solver的时候,系统提醒检查到独立的5个流体区域,直接就退出了。现在关键就是这两个问题。希望大神给予解答,感激不尽!
错误提示:
5 isolated fluid regions were found in domain Default Domain

If the isolated regions do not have the pressure level set either
by the boundary conditions or using a reference pressure equation,
you may encounter severe robustness problems.

This situation may have arisen because a domain interface was not
properly defined during problem setup.  Please carefully check
the setup.

The solver will stop now and write a results file.  The isolated
regions can be visualised in CFX Post by making plots of the
variable "Isolated Volumes".

If you are sure that the pressure level is set in each isolated
fluid region then you can force the solver to turn off this check
by setting the expert parameter "check isolated regions = f".
软件倒是说了可以通过命令check isolated regions = f来关闭独立流体区域检查,但是这个命令在哪里输?
