wulishi8专家顾问 (知名作家)
|
[资源]
刚刚18号science在线发表的双层石墨烯过滤薄膜用于气体和小分子分离
|
||||||||||||||
|

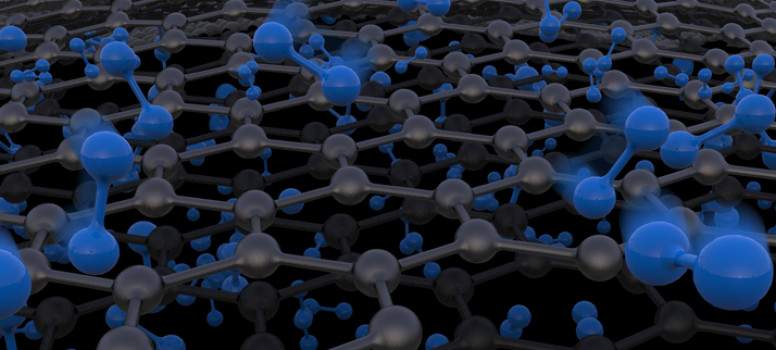

在双层石墨烯上制作可控大小的pore，实现了气体，小分子分离，颗粒分离，甚至可以用作防水服。不过，双层石墨烯是利用两层石墨烯层层转移实现的，不是直接制备的。 单层石墨烯是不可以的，因为石墨烯并不完美，单层容易破坏。但是双层石墨烯，一层的缺陷正对第二层的缺陷的概率非常非常低，因此相对稳定，所以可以用来制作纳米级别的pore。 以下是他们组写的新闻报道。  A new nano-membrane made out of the 'super material' graphene is extremely light and breathable. Not only can this open the door to a new generation of functional waterproof clothing, but also to ultra-rapid filtration. The new membrane just produced is as thin as is technologically possible. Researchers have produced a stable porous membrane that is thinner than a nanometre. This is a 100,000 times thinner than the diameter of a human hair. The membrane consists of two layers of the much exalted "super material" graphene, a two-dimensional film made of carbon atoms, on which the team of researchers, led by Professor Hyung Gyu Park at the Department of Mechanical and Process Engineering at ETH Zurich, etched tiny pores of a precisely defined size. The membrane can thus permeate tiny molecules. Larger molecules or particles, on the other hand, can pass only slowly or not at all. "With a thickness of just two carbon atoms, this is the thinnest porous membrane that is technologically possible to make," says PhD student Jakob Buchheim, one of the two lead authors of the study, which was conducted by ETH-Zurich researchers in collaboration with scientists from Empa and a research laboratory of LG Electronics. The study has just been published in journal Science. The ultra-thin graphene membrane may one day be used for a range of different purposes, including waterproof clothing. "Our membrane is not only very light and flexible, but it is also a thousand fold more breathable than Goretex," says Kemal Celebi, a postdoc in Park's laboratory and also one of the lead authors of the study. The membrane could also potentially be used to separate gaseous mixtures into their constituent parts or to filter impurities from fluids. The researchers were able to demonstrate for the first time that graphene membranes could be suitable for water filtration. The researchers also see a potential use for the membrane in devices used for the accurate measurement of gas and fluid flow rates that are crucial to unveiling the physics around mass transfer at nanoscales and separation of chemical mixtures. Breakthrough in nanofabrication The researchers not only succeeded in producing the starting material, a double-layer graphene film with a high level of purity, but they also mastered a technique called focused ion beam milling to etch pores into the graphene film. In this process, which is also used in the production of semiconductors, a beam of helium or gallium ions is controlled with a high level of precision in order to etch away material. The researchers were able to etch pores of a specified number and size into the graphene with unprecedented precision. This process, which could easily take days to complete, took only a few hours in the current work. "This is a breakthrough that enables the nanofabrication of the porous graphene membranes," explains Ivan Shorubalko, a scientist at Empa that also contributed to the study. In order to achieve this level of precision, the researchers had to work with double-layer graphene. "It wouldn't have been possible for this method to create such a membrane with only one layer because graphene in practice isn't perfect," says Park. The material can exhibit certain irregularities in the honeycomb structure of the carbon atoms. Now and again, individual atoms are missing from the structure, which not only impairs the stability of the material but also makes it impossible to etch a high-precision pore onto such a defect. The researchers solved this problem by laying two graphene layers on top of each other. The probability of two defects settling directly above one another is extremely low, explains Park. Fastest possible filtration A key advantage of the tiny dimensions is that the thinner a membrane, the lower its permeation resistance. The lower the resistance, the higher the energy-efficiency of the filtration process. "With such atomically thin membranes we can reach maximal permeation for a membrane of a given pore size and we believe that they allow the fastest feasible rate of permeation," says Celebi. However, before these applications are ready for use on an industrial scale or for the production of functional waterproof clothing, the manufacturing process needs to be further developed. To investigate the fundamental science, the researchers worked with tiny pieces of membrane with a surface area of less than one hundredth of a square millimetre. Objectives from now on will be to produce larger membrane surfaces and impose various filtering mechanisms. |
回复此楼» 本帖附件资源列表
-
欢迎监督和反馈：小木虫仅提供交流平台，不对该内容负责。
本内容由用户自主发布，如果其内容涉及到知识产权问题，其责任在于用户本人，如对版权有异议，请联系邮箱：xiaomuchong@tal.com - 附件 1 : Science-2014-Celebi-289-92.pdf
2014-04-18 19:49:16, 625.85 K
