[求助] moldflow中跑Fill+pack+warp分析,但跑不出warp结果,为什么? 已有2人参与

大家好,有个问题一直困扰着我,Moldflow中的Fill+pack+warp分析分析不出warp结果(分析日志中没有分析失败的提示信息),为什么?(附sdy文件)。希望高手们能跑下分析试试,看具体什么原因。
回复此楼

» 本帖附件资源列表

  • 欢迎监督和反馈:小木虫仅提供交流平台,不对该内容负责。
    本内容由用户自主发布,如果其内容涉及到知识产权问题,其责任在于用户本人,如对版权有异议,请联系邮箱:xiaomuchong@tal.com
  • 附件 1 : part_include_an_insert.sdy
  • 2013-08-19 16:33:42, 2.81 M

» 猜你喜欢

争取更好!
已阅   回复此楼   关注TA 给TA发消息 送TA红花 TA的回帖

gniboaix

金虫 (小有名气)

【答案】应助回帖

只有这个就能跑吗?怎么跑呀。。。。我也在学Moldflow
2楼2014-07-10 16:16:27
已阅   回复此楼   关注TA 给TA发消息 送TA红花 TA的回帖

Counstriong

铜虫 (初入文坛)

** WARNING 98988 ** The mesh match percentage (79.7%), and reciprocal mesh match
                    percentage (68.8%) for the Dual Domain mesh are less than the
                    recommended minimum value of 85%. This may affect the
                    accuracy of the results. To identify the poorly matched areas of
                    the part, use the Dual Domain Mesh Match Diagnostic in the Mesh menu.
                    To improve the mesh matching, use the Match Nodes mesh tool,
                    remesh the part, or remove fine details, such as fillets, in the
                    original CAD model.
Analysis Check completed successfully with 1 warnings
3楼2016-09-29 16:09:50
已阅   回复此楼   关注TA 给TA发消息 送TA红花 TA的回帖

Counstriong

铜虫 (初入文坛)

** WARNING 98988 ** The mesh match percentage (79.7%), and reciprocal mesh match
                    percentage (68.8%) for the Dual Domain mesh are less than the
                    recommended minimum value of 85%. This may affect the
                    accuracy of the results. To identify the poorly matched areas of
                    the part, use the Dual Domain Mesh Match Diagnostic in the Mesh menu.
                    To improve the mesh matching, use the Match Nodes mesh tool,
                    remesh the part, or remove fine details, such as fillets, in the
                    original CAD model.
Analysis Check completed successfully with 1 warnings
4楼2016-09-29 16:10:20
已阅   回复此楼   关注TA 给TA发消息 送TA红花 TA的回帖

Counstriong

铜虫 (初入文坛)

** WARNING 98988 ** The mesh match percentage (79.7%), and reciprocal mesh match
                    percentage (68.8%) for the Dual Domain mesh are less than the
                    recommended minimum value of 85%. This may affect the
                    accuracy of the results. To identify the poorly matched areas of
                    the part, use the Dual Domain Mesh Match Diagnostic in the Mesh menu.
                    To improve the mesh matching, use the Match Nodes mesh tool,
                    remesh the part, or remove fine details, such as fillets, in the
                    original CAD model.
Analysis Check completed successfully with 1 warnings
5楼2016-09-29 16:10:28
已阅   回复此楼   关注TA 给TA发消息 送TA红花 TA的回帖

Counstriong

铜虫 (初入文坛)

【答案】应助回帖

1. 原先的档案可能出模方向设置不对
2. 所选的材料无相关的收缩模型
moldflow中跑Fill+pack+warp分析,但跑不出warp结果,为什么?

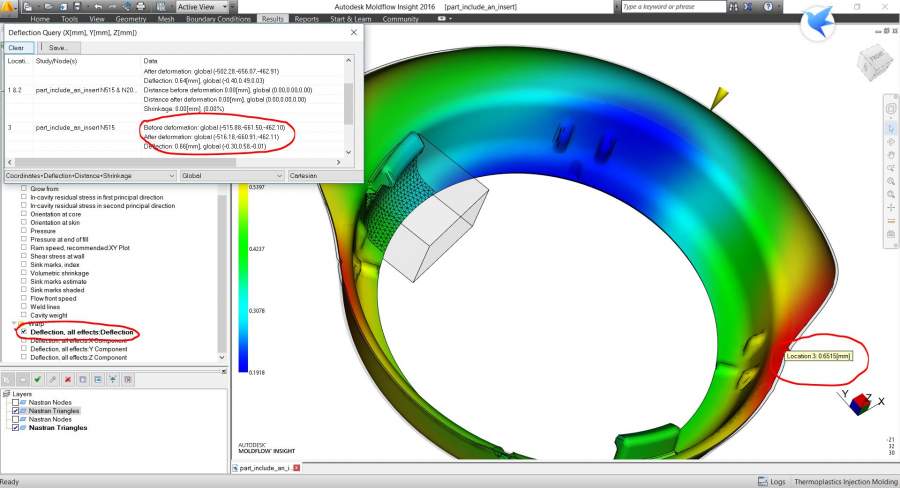

Warp Result.JPG

6楼2016-09-29 16:29:45
