[求助]
热导率计算heat/flux 问题
|
|
|

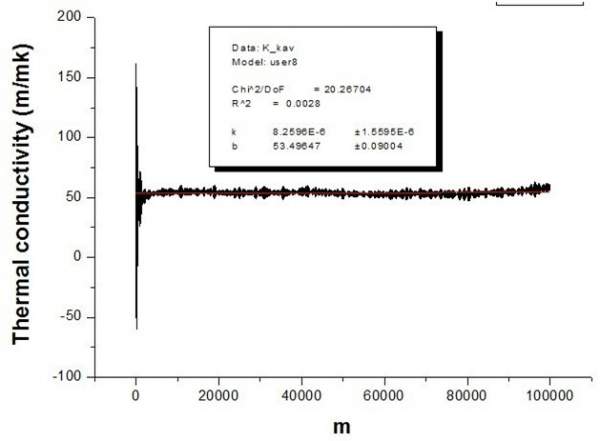

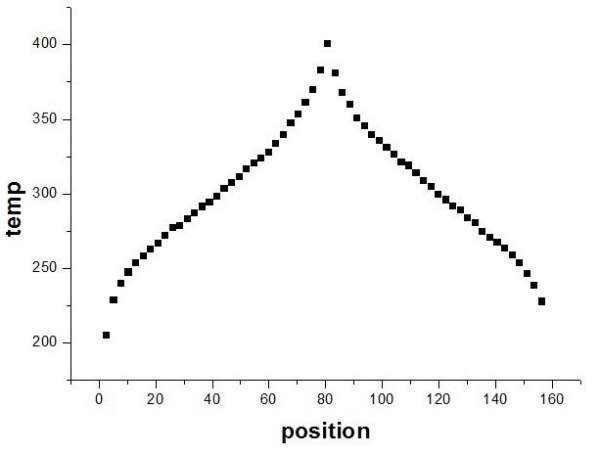

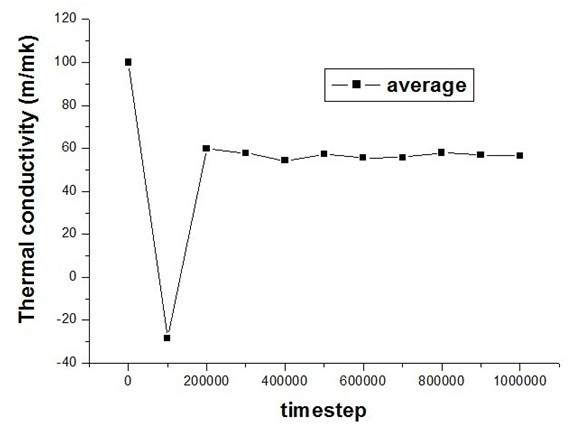

本人最近在计算ZnO热导率 用了两种方法，同一个势函数 1.heat/flux 方法 计算结果如下图 计算得到的热导率大概50w/mk左右  1.jpg  2.jpg 2.thermal/conductivity方法 利用thermal/conductivity计算10nm 热导率大概5w/mk左右 两个方法为什么差距这么大呢？ 温度梯度也是线性的  3.jpg [ Last edited by w76990480 on 2013-7-19 at 17:46 ] |
回复此楼» 猜你喜欢
国自然面上和省基金B类撒花
已经有6人回复
-
华师大读博
已经有5人回复
-
又一批高校组建人工智能学院 师资行吗 不是骗人吗
已经有5人回复
-
0854求调剂
已经有28人回复
-
急需审稿人！！！
已经有3人回复
-
申博/考博
已经有8人回复
-
一志愿A区211，22408 321求调剂
已经有8人回复
-
295分求调剂
已经有6人回复
-
一志愿中科大材料与化工，353分还有调剂学校吗
已经有13人回复
-
085600材料与化工调剂
已经有6人回复
11楼2017-05-05 21:57:29
2楼2013-07-20 16:11:49
z654023015
铜虫 (初入文坛)
- 应助: 9 (幼儿园)
- 金币: 173.2
- 红花: 2
- 帖子: 50
- 在线: 110.8小时
- 虫号: 2023659
- 注册: 2012-09-23
- 性别: GG
- 专业: 凝聚态物性I:结构、力学和
3楼2013-07-21 17:00:37
w76990480
荣誉版主 (文坛精英)
super-emuch
- 应助: 47 (小学生)
- 贵宾: 13.729
- 金币: 109757
- 散金: 29386
- 红花: 337
- 沙发: 50
- 帖子: 23155
- 在线: 3166.8小时
- 虫号: 942733
- 注册: 2010-01-15
- 专业: 固体力学
- 管辖: 文献求助
|
Dear lammps users： I have some questions on ZnO thermal conductivity calculation，The fix heat/flux and fix thermal/conductivity command were selected to calculating the ZnO thermal conductivity. 1.fix heat/flux I wrote the input file like the manual (http://lammps.sandia.gov/doc/compute_heat_flux.html), the average thermal conductivity of ZnO(Model: x 5.0nm y 4.8nm z 5.3nm) is about ~50W/mk. The thermal conductivity-m curve you can see the fig 1 in the attachment. 2.thermal/conductivity The periodic boundary wurtzite-type ZnO was selected to calculating thermal conductivity in x y z direction 2.8nm 2.9nm 15.7nm respectively。The main command as following： fix temp_profile all ave/spatial 1 100000 100000 z lower 1.0 v_temp file temp.profile units lattice #YL for test fix heat_swap all thermal/conductivity 10 z 60 fix e_exchange all ave/time 10 1 100000 f_heat_swap file e_exchange.dat fix accumu_thermalK_out all ave/time 10 1 100000 v_accumu_thermalK file thermal_conductivity.dat I used this “variable accumu_thermalK equal f_e_exchange*${ev2J}/(2*0.001*${N}*${ps2s}*${Ox}*${Oy}*${An2m}*f_delta_out)*(${Oz}/60.0*26.0)” variable command to calculating it. timestep 0.001 N step Is it right（this variable to calculate the thermal conductivity）? Temperature gradient is linear in the fig 2 (in the attachment). the average thermal conductivity is about 5W/mk. Now, Two kinds of method to calculate the thermal conductivity of why have so big difference(The two methods with the same potential)? |
4楼2013-07-21 22:00:36
