[求助] 焊接双椭球加载问题 已有1人参与

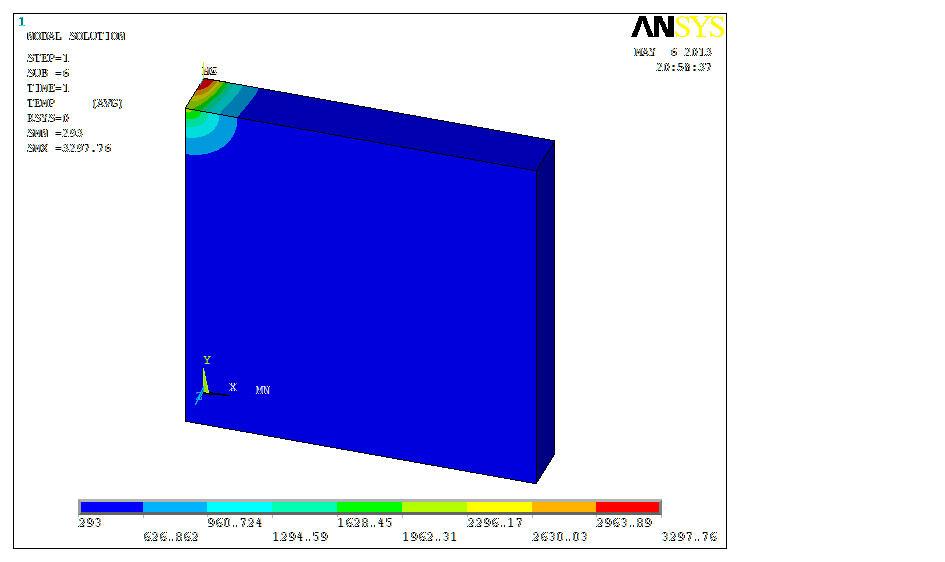

运行的结果一直是只有最后的几步，都是在最顶部的几秒，我想要的结果是出现运动的热源，热源在Y轴运动，是不是热源的加载出现问题了，应该下一次在上次的热分布基础上加载，求大神指导！


/UNITS,SI
L=0.02
B1=0.003
B2=0.006
B3=0.02
H=0.0032
D=0.001
AH=D/2
CHF=2*AH
CHB=8*AH
BH=0.005
RF=2*CHF/(CHF+CHB)
RB=2*CHB/(CHF+CHB)
M=0.27
W0=2200
W=W0*M

/PREP7
ET,1,SOLID70
MPTEMP,1,20
MPTEMP,2,100
MPTEMP,3,200
MPTEMP,4,300
MPTEMP,5,400
MPTEMP,6,500
MPTEMP,7,600
MPTEMP,8,700
MPTEMP,9,800
MPTEMP,10,900
MPTEMP,11,1000
MPTEMP,12,1200
MPTEMP,13,1540
MPTEMP,14,1700
MPTEMP,15,2000
MPTEMP,16,3000
MPDATA,KXX,1,,6
MPDATA,KXX,1,,6.5
MPDATA,KXX,1,,7
MPDATA,KXX,1,,8
MPDATA,KXX,1,,9
MPDATA,KXX,1,,10
MPDATA,KXX,1,,11
MPDATA,KXX,1,,12
MPDATA,KXX,1,,13
MPDATA,KXX,1,,13.5
MPDATA,KXX,1,,13.8
MPDATA,KXX,1,,13.9
MPDATA,KXX,1,,14
MPDATA,KXX,1,,14.2
MPDATA,KXX,1,,14.4
MPDATA,KXX,1,,14.4
MPTEMP,1,20
MPTEMP,2,100
MPTEMP,3,200
MPTEMP,4,300
MPTEMP,5,400
MPTEMP,6,500
MPTEMP,7,600
MPTEMP,8,700
MPTEMP,9,800
MPTEMP,10,900
MPTEMP,11,1000
MPTEMP,12,1200
MPTEMP,13,1540
MPTEMP,14,1700
MPTEMP,15,2000
MPTEMP,16,3000
MPDATA,C,1,,600
MPDATA,C,1,,620
MPDATA,C,1,,640
MPDATA,C,1,,660
MPDATA,C,1,,680
MPDATA,C,1,,700
MPDATA,C,1,,725
MPDATA,C,1,,750
MPDATA,C,1,,775
MPDATA,C,1,,800
MPDATA,C,1,,805
MPDATA,C,1,,810
MPDATA,C,1,,830
MPDATA,C,1,,850
MPDATA,C,1,,900
MPDATA,C,1,,900
MP,DENS,1,4450
BLOCK,0,B1,0,L,0,H,
BLOCK,B1,B2,0,L,0,H,
BLOCK,B2,B3,0,L,0,H,
VGLUE,ALL
ESIZE,H/16,0
VSWEEP,1
ESIZE,H/2,0
VSWEEP,5
MSHAPE,1,3D
MSHKEY,0
VMESH,4
FINISH

/PREP7
STEP=0.02
N=L/STEP
V=0.04

*DO,I,0,N,0.2
YY=I*STEP
T=(YY+STEP)/V

/SOLU
ANTYPE,4
trnopt,full
tunif,293,
outres,ALL,ALL
time,t
nropt,full,,on
autots,1
nsubst,5,,,1
kbc,1
lnsrch,1
tsres,erase
TINTP,,,,1,,,,,
timint,0,STRUCT
timint,1,THERM
TIMINT,0,MAG

nsel,s,ext,                  !ADD FIRST LOAD
nsel,u,loc,x,0
sf,all,conv,200,293
ASEL,S,,,5,26,1
ASEL,U,LOC,X,0
LSLA,S
NSLL,A,1
sf,all,conv,200,293
allsel,all
NSEL,ALL
*GET,CENTER,NODE,,MNLOC,X
NSEL,S,LOC,X,CENTER
SF,ALL,HFLUX,0

LOCAL,11,2,0,YY,0,,,,3,8,
NSEL,S,LOC,X,,D
NSEL,R,LOC,Y,,90
NSEL,R,LOC,Z,,90
CM,FRONT,NODE
LOCAL,13,0,0,YY,0,,,,1,1,
*DEL,_FNCNAME
*DEL,_FNCMTID
*DEL,_FNC_C1
*DEL,_FNC_C2
*DEL,_FNC_C3
*DEL,_FNC_C4
*DEL,_FNC_C5
*DEL,_FNCCSYS
*DEL,'TFRONT'
*SET,_FNCNAME,'TFRONT'
*DIM,_FNC_C1,,1
*DIM,_FNC_C2,,1
*DIM,_FNC_C3,,1
*DIM,_FNC_C4,,1
*DIM,_FNC_C5,,1
*SET,_FNC_C1(1),RF
*SET,_FNC_C2(1),W
*SET,_FNC_C3(1),CHF
*SET,_FNC_C4(1),AH
*SET,_FNC_C5(1),BH
*SET,_FNCCSYS,13
*DIM,%_FNCNAME%,TABLE,7,38,1,,,,%_FNCCSYS%
*SET,%_FNCNAME%(0,0,1),0.0,-999
*SET,%_FNCNAME%(2,0,1),0.0
*SET,%_FNCNAME%(3,0,1),%_FNC_C1(1)%
*SET,%_FNCNAME%(4,0,1),%_FNC_C2(1)%
*SET,%_FNCNAME%(5,0,1),%_FNC_C3(1)%
*SET,%_FNCNAME%(6,0,1),%_FNC_C4(1)%
*SET,%_FNCNAME%(7,0,1),%_FNC_C5(1)%
*SET,%_FNCNAME%(0,1,1),1.0, -1, 16, 3, 0, 0, 0
*SET,%_FNCNAME%(0,2,1),0.0, -2, 0, 6, 0, 0, -1
*SET,%_FNCNAME%(0,3,1),0, -3, 0, 1, -2, 3, -1
*SET,%_FNCNAME%(0,4,1),0.0, -1, 0, 1, -3, 3, 17
*SET,%_FNCNAME%(0,5,1),0.0, -2, 0, 1, -1, 3, 18
*SET,%_FNCNAME%(0,6,1),0.0, -1, 0, 0, 0, 0, 0
*SET,%_FNCNAME%(0,7,1),0.0, -3, 0, 1, 0, 0, -1
*SET,%_FNCNAME%(0,8,1),0.0, -4, 0, 1, -1, 2, -3
*SET,%_FNCNAME%(0,9,1),0.0, -1, 0, 2, 0, 0, 2
*SET,%_FNCNAME%(0,10,1),0.0, -3, 0, 1,2,17,-1
*SET,%_FNCNAME%(0,11,1),0.0, -1, 0, 2, 0, 0, 19
*SET,%_FNCNAME%(0,12,1),0.0, -5, 0, 1, 19, 17, -1
*SET,%_FNCNAME%(0,13,1),0.0, -1, 0, 1, -3, 4, 5
*SET,%_FNCNAME%(0,14,1),0.0, -3, 0, 2, 0, 0, 3
*SET,%_FNCNAME%(0,15,1),0.0, -5, 0, 1, 3, 17, -3
*SET,%_FNCNAME%(0,16,1),0.0, -3, 0, 2, 0, 0, 20
*SET,%_FNCNAME%(0,17,1),0.0, -6, 0, 1, 20, 17, -3
*SET,%_FNCNAME%(0,18,1),0.0, -3, 0, 1, -5, 4, -6
*SET,%_FNCNAME%(0,19,1),0.0, -5, 0, 1, -1, 1, -3
*SET,%_FNCNAME%(0,20,1),0.0, -1, 0, 2, 0, 0, 4
*SET,%_FNCNAME%(0,21,1),0.0, -3, 0, 1, 4, 17, -1
*SET,%_FNCNAME%(0,22,1),0.0, -1, 0, 2, 0, 0,21
*SET,%_FNCNAME%(0,23,1),0.0, -6, 0, 1, 21, 17, -1
*SET,%_FNCNAME%(0,24,1),0.0, -1, 0, 1, -3, 4, -6
*SET,%_FNCNAME%(0,25,1),0.0, -3, 0, 1, -5, 1, -1
*SET,%_FNCNAME%(0,26,1),0.0, -1, 0, 3, 0, 0, -3
*SET,%_FNCNAME%(0,27,1),0.0, -5, 0, 1, -1, 3, -3
*SET,%_FNCNAME%(0,28,1),0.0, -1, 0, 1, -4, 3, -5
*SET,%_FNCNAME%(0,29,1),0.0, -1, 7, 1, -1, 0, 0
*SET,%_FNCNAME%(0,30,1),0.0, -3, 0, 1, -2, 3, -1
*SET,%_FNCNAME%(0,31,1),0.0, -1, 0, 1,20,3,21
*SET,%_FNCNAME%(0,32,1),0.0, -2, 0,1,-1,3,19
*SET,%_FNCNAME%(0,33,1),0.0, -1, 0,3.14159265358979310, 0, 0, -2
*SET,%_FNCNAME%(0,34,1),0.0, -4, 0, 1, -2, 3,-1
*SET,%_FNCNAME%(0,35,1),0.0, -1,16,3.14159265358979310,0,0,0
*SET,%_FNCNAME%(0,36,1),0.0, -2, 0, 1, -4, 3,-1
*SET,%_FNCNAME%(0,37,1),0.0, -1, 0, 1, -3, 4, -2
*SET,%_FNCNAME%(0,38,1),0.0, 99, 0, 1, -1, 0, 0
BF,FRONT,HGEN,%TFRONT%
CMDELE,FRONT
ALLSEL,ALL

LOCAL,12,2,0,YY,0,,,,6,8,
NSEL,S,LOC,X,0,D
NSEL,R,LOC,Y,-90,0
nsel,r,loc,Z,,90
CM,BEHIND,NODE
!!!
LOCAL,14,0,0,YY,0,,,,1,1,
*DEL,_FNCNAME
*DEL,_FNCMTID
*DEL,_FNC_C1
*DEL,_FNC_C2
*DEL,_FNC_C3
*DEL,_FNC_C4
*DEL,_FNC_C5
*DEL,_FNCCSYS
*DEL,'TBEHIND'
*SET,_FNCNAME,'TBEHIND'
*DIM,_FNC_C1,,1
*DIM,_FNC_C2,,1
*DIM,_FNC_C3,,1
*DIM,_FNC_C4,,1
*DIM,_FNC_C5,,1
*SET,_FNC_C1(1),RB
*SET,_FNC_C2(1),W
*SET,_FNC_C3(1),CHB
*SET,_FNC_C4(1),AH
*SET,_FNC_C5(1),BH
*SET,_FNCCSYS,14
*DIM,%_FNCNAME%,TABLE,7,38,1,,,,%_FNCCSYS%
*SET,%_FNCNAME%(0,0,1),0.0, -999
*SET,%_FNCNAME%(2,0,1),0.0
*SET,%_FNCNAME%(3,0,1),%_FNC_C1(1)%
*SET,%_FNCNAME%(4,0,1),%_FNC_C2(1)%
*SET,%_FNCNAME%(5,0,1),%_FNC_C3(1)%
*SET,%_FNCNAME%(6,0,1),%_FNC_C4(1)%
*SET,%_FNCNAME%(7,0,1),%_FNC_C5(1)%
*SET,%_FNCNAME%(0,1,1),1.0, -1, 16, 3, 0, 0, 0
*SET,%_FNCNAME%(0,2,1),0.0, -2, 0, 6, 0, 0, -1
*SET,%_FNCNAME%(0,3,1),0, -3, 0, 1, -2, 3, -1
*SET,%_FNCNAME%(0,4,1),0.0, -1, 0, 1, -3, 3, 17
*SET,%_FNCNAME%(0,5,1),0.0, -2, 0, 1, -1, 3, 18
*SET,%_FNCNAME%(0,6,1),0.0, -1, 0, 0, 0, 0, 0
*SET,%_FNCNAME%(0,7,1),0.0, -3, 0, 1, 0, 0, -1
*SET,%_FNCNAME%(0,8,1),0.0, -4, 0, 1, -1, 2, -3
*SET,%_FNCNAME%(0,9,1),0.0, -1, 0, 2, 0, 0, 2
*SET,%_FNCNAME%(0,10,1),0.0, -3, 0, 1,2,17,-1
*SET,%_FNCNAME%(0,11,1),0.0, -1, 0, 2, 0, 0, 19
*SET,%_FNCNAME%(0,12,1),0.0, -5, 0, 1, 19, 17, -1
*SET,%_FNCNAME%(0,13,1),0.0, -1, 0, 1, -3, 4, 5
*SET,%_FNCNAME%(0,14,1),0.0, -3, 0, 2, 0, 0, 3
*SET,%_FNCNAME%(0,15,1),0.0, -5, 0, 1, 3, 17, -3
*SET,%_FNCNAME%(0,16,1),0.0, -3, 0, 2, 0, 0, 20
*SET,%_FNCNAME%(0,17,1),0.0, -6, 0, 1, 20, 17, -3
*SET,%_FNCNAME%(0,18,1),0.0, -3, 0, 1, -5, 4, -6
*SET,%_FNCNAME%(0,19,1),0.0, -5, 0, 1, -1, 1, -3
*SET,%_FNCNAME%(0,20,1),0.0, -1, 0, 2, 0, 0, 4
*SET,%_FNCNAME%(0,21,1),0.0, -3, 0, 1, 4, 17, -1
*SET,%_FNCNAME%(0,22,1),0.0, -1, 0, 2, 0, 0,21
*SET,%_FNCNAME%(0,23,1),0.0, -6, 0, 1, 21, 17, -1
*SET,%_FNCNAME%(0,24,1),0.0, -1, 0, 1, -3, 4, -6
*SET,%_FNCNAME%(0,25,1),0.0, -3, 0, 1, -5, 1, -1
*SET,%_FNCNAME%(0,26,1),0.0, -1, 0, 3, 0, 0, -3
*SET,%_FNCNAME%(0,27,1),0.0, -5, 0, 1, -1, 3, -3
*SET,%_FNCNAME%(0,28,1),0.0, -1, 0, 1, -4, 3, -5
*SET,%_FNCNAME%(0,29,1),0.0, -1, 7, 1, -1, 0, 0
*SET,%_FNCNAME%(0,30,1),0.0, -3, 0, 1, -2, 3, -1
*SET,%_FNCNAME%(0,31,1),0.0, -1, 0, 1,20,3,21
*SET,%_FNCNAME%(0,32,1),0.0, -2, 0,1,-1,3,19
*SET,%_FNCNAME%(0,33,1),0.0, -1, 0,3.14159265358979310, 0, 0, -2
*SET,%_FNCNAME%(0,34,1),0.0, -4, 0, 1, -2, 3,-1
*SET,%_FNCNAME%(0,35,1),0.0, -1,16,3.14159265358979310,0,0,0
*SET,%_FNCNAME%(0,36,1),0.0, -2, 0, 1, -4, 3,-1
*SET,%_FNCNAME%(0,37,1),0.0, -1, 0, 1, -3, 4, -2
*SET,%_FNCNAME%(0,38,1),0.0, 99, 0, 1, -1, 0, 0
BF,BEHIND,HGEN,%TBEHIND%
CMDELE,BEHIND
ALLSEL,ALL
SOLVE
BFDELE,all,HGEN
*ENDDO

回复此楼

» 收录本帖的淘帖专辑推荐

电弧

» 猜你喜欢

» 本主题相关价值贴推荐，对您同样有帮助:
恒
1楼 2013-05-06 21:17:57
已阅   回复此楼   关注TA 给TA发消息 送TA红花 TA的回帖

雨果圣洛里

新虫 (正式写手)
★
xiegangmai: 金币-1, 专业版块，请勿灌水 2013-05-07 21:19:20
腾飞你这是个毛线啊
赞一下 回复此楼
2楼2013-05-07 20:58:58
已阅   回复此楼   关注TA 给TA发消息 送TA红花 TA的回帖

sutengfeijd

新虫 (小有名气)
没事多读点书，别老让人笑话你！
赞一下 回复此楼
恒
3楼2013-05-07 21:11:21
已阅   回复此楼   关注TA 给TA发消息 送TA红花 TA的回帖

11050209

银虫 (正式写手)
解决了没有
回复此楼
4楼2016-05-27 20:41:50
已阅   回复此楼   关注TA 给TA发消息 送TA红花 TA的回帖

小七工作室1

新虫 (著名写手)

【答案】应助回帖

感觉是设置上有问题
赞一下(1人) 回复此楼
5楼2016-05-30 09:14:53
