[求助]
求救!请教会proII的前辈，proII模拟运行出现以下错误？谢谢！
|
|

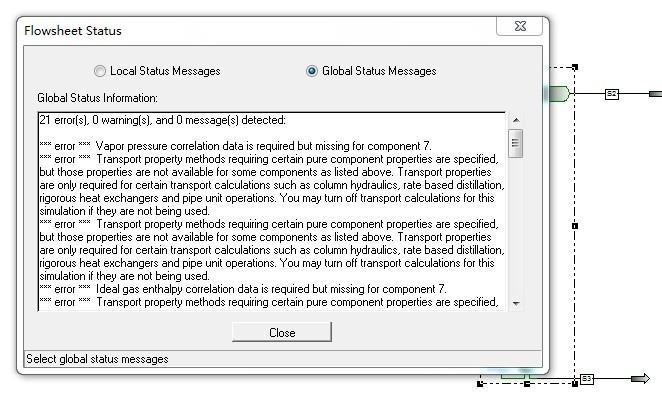

之前电脑装上proII之后无法添加组分，重做系统后，可以添加组分，可是运行时候出现以下错误，我不知是小弟的输入有误？还是proII自身有问题？谢谢！小弟菜鸟一个。 图片中的说明：21 error(s), 0 warning(s), and 0 message(s) detected: *** error *** Vapor pressure correlation data is required but missing for component 7. *** error *** Transport property methods requiring certain pure component properties are specified, but those properties are not available for some components as listed above. Transport properties are only required for certain transport calculations such as column hydraulics, rate based distillation, rigorous heat exchangers and pipe unit operations. You may turn off transport calculations for this simulation if they are not being used. *** error *** Transport property methods requiring certain pure component properties are specified, but those properties are not available for some components as listed above. Transport properties are only required for certain transport calculations such as column hydraulics, rate based distillation, rigorous heat exchangers and pipe unit operations. You may turn off transport calculations for this simulation if they are not being used. *** error *** Ideal gas enthalpy correlation data is required but missing for component 7. *** error *** Transport property methods requiring certain pure component properties are specified, but those properties are not available for some components as listed above. Transport properties are only required for certain transport calculations such as column hydraulics, rate based distillation, rigorous heat exchangers and pipe unit operations. You may turn off transport calculations for this simulation if they are not being used. *** error *** Transport property methods requiring certain pure component properties are specified, but those properties are not available for some components as listed above. Transport properties are only required for certain transport calculations such as column hydraulics, rate based distillation, rigorous heat exchangers and pipe unit operations. You may turn off transport calculations for this simulation if they are not being used. *** error *** Liquid thermal conductivity correlation data is required but missing for component 7. *** error *** Transport property methods requiring certain pure component properties are specified, but those properties are not available for some components as listed above. Transport properties are only required for certain transport calculations such as column hydraulics, rate based distillation, rigorous heat exchangers and pipe unit operations. You may turn off transport calculations for this simulation if they are not being used. *** error *** Transport property methods requiring certain pure component properties are specified, but those properties are not available for some components as listed above. Transport properties are only required for certain transport calculations such as column hydraulics, rate based distillation, rigorous heat exchangers and pipe unit operations. You may turn off transport calculations for this simulation if they are not being used. *** error *** Vapor thermal conductivity correlation data is required but missing for component 7. *** error *** Transport property methods requiring certain pure component properties are specified, but those properties are not available for some components as listed above. Transport properties are only required for certain transport calculations such as column hydraulics, rate based distillation, rigorous heat exchangers and pipe unit operations. You may turn off transport calculations for this simulation if they are not being used. *** error *** Transport property methods requiring certain pure component properties are specified, but those properties are not available for some components as listed above. Transport properties are only required for certain transport calculations such as column hydraulics, rate based distillation, rigorous heat exchangers and pipe unit operations. You may turn off transport calculations for this simulation if they are not being used. *** error *** Liquid viscosity correlation data is required but missing for component 7. *** error *** Transport property methods requiring certain pure component properties are specified, but those properties are not available for some components as listed above. Transport properties are only required for certain transport calculations such as column hydraulics, rate based distillation, rigorous heat exchangers and pipe unit operations. You may turn off transport calculations for this simulation if they are not being used. *** error *** Transport property methods requiring certain pure component properties are specified, but those properties are not available for some components as listed above. Transport properties are only required for certain transport calculations such as column hydraulics, rate based distillation, rigorous heat exchangers and pipe unit operations. You may turn off transport calculations for this simulation if they are not being used. *** error *** Vapor viscosity correlation data is required but missing for component 7. *** error *** Transport property methods requiring certain pure component properties are specified, but those properties are not available for some components as listed above. Transport properties are only required for certain transport calculations such as column hydraulics, rate based distillation, rigorous heat exchangers and pipe unit operations. You may turn off transport calculations for this simulation if they are not being used. *** error *** Transport property methods requiring certain pure component properties are specified, but those properties are not available for some components as listed above. Transport properties are only required for certain transport calculations such as column hydraulics, rate based distillation, rigorous heat exchangers and pipe unit operations. You may turn off transport calculations for this simulation if they are not being used. *** error *** Surface tension correlation data is required but missing for component 7. *** error *** Transport property methods requiring certain pure component properties are specified, but those properties are not available for some components as listed above. Transport properties are only required for certain transport calculations such as column hydraulics, rate based distillation, rigorous heat exchangers and pipe unit operations. You may turn off transport calculations for this simulation if they are not being used. *** error *** Transport property methods requiring certain pure component properties are specified, but those properties are not available for some components as listed above. Transport properties are only required for certain transport calculations such as column hydraulics, rate based distillation, rigorous heat exchangers and pipe unit operations. You may turn off transport calculations for this simulation if they are not being used.  未命名.jpg  TM截图未命名.png |
