[交流] 使用griddata插值的问题已有1人参与

刚看了一个关于使用griddata插值算例：知道一系列点的坐标，绘制三维曲面

A=[1.486,3.059,0.1;2.121,4.041,0.1;2.570,3.959,0.1;3.439,4.396,0.1;
4.505,3.012,0.1;3.402,1.604,0.1;2.570,2.065,0.1;2.150,1.970,0.1;
1.794,3.059,0.2;2.121,3.615,0.2;2.570,3.473,0.2;3.421,4.160,0.2;
4.271,3.036,0.2;3.411,1.876,0.2;2.561,2.562,0.2;2.179,2.420,0.2;
2.757,3.024,0.3;3.439,3.970,0.3;4.084,3.036,0.3;3.402,2.077,0.3;
2.879,3.036,0.4;3.421,3.793,0.4;3.953,3.036,0.4;3.402,2.219,0.4;
3.000,3.047,0.5;3.430,3.639,0.5;3.822,3.012,0.5;3.411,2.385,0.5;
3.103,3.012,0.6;3.430,3.462,0.6;3.710,3.036,0.6;3.402,2.562,0.6;
3.224,3.047,0.7;3.411,3.260,0.7;3.542,3.024,0.7;3.393,2.763,0.7];

x=A(:,1);y=A(:,2);z=A(:,3);

[X,Y,Z]=griddata(x,y,z,linspace(1.486,4.271)',linspace(1.604,4.276),'v4');%插值

figure,surf(X,Y,Z)%三维曲面

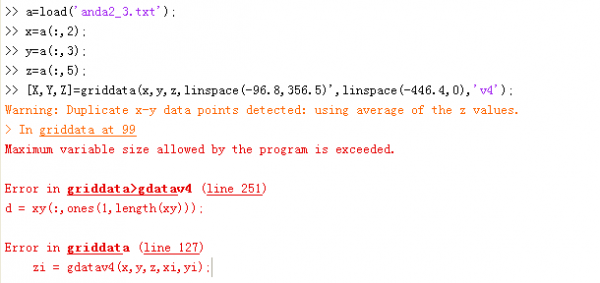

现在遇到一个问题，语句[X,Y,Z]=griddata(x,y,z,linspace(1.486,4.271)',linspace(1.604,4.276),'v4');中linspace内的取值有什么要求，或者遵循怎样的原则，与x，y坐标有关吗？我运用其画另一幅曲线图就出现如图错误，我是个菜鸟，望高手解答
