纳米材料三角形片状的生成机理
|
|||
| 有人了解为什么片状纳米材料长成正三角形的机理吗？我看到很多化学气相沉积得到的是三角形的片。我自己做的一些团簇也有组装成三角形的片，也有成矩形的片。 |
回复此楼» 猜你喜欢
2026年中南民族大学化学与材料科学学院调剂公告
已经有40人回复
-
武汉纺织大学招生物材料、化学、高分子相关专业硕士生
已经有0人回复
-
有机高分子材料论文润色/翻译怎么收费?
已经有50人回复
-
武汉纺织大学招生物材料、化学、高分子相关专业硕士生-另有少量士兵计划可咨询
已经有0人回复
-
[武汉纺织大学]材料学院[姜伟团队名称]课题组-2026年硕士研究生调剂信息
已经有0人回复
-
中国科学院·过程工程研究所·招聘海内外高层次人才---过程所“百人计划”
已经有1人回复
-
中国科学院·过程工程研究所·招聘海内外高层次人才---过程所“百人计划”
已经有5人回复
-
2026考博自荐
已经有4人回复
-
温敏水凝胶收缩
已经有0人回复
-
PDMS膜在溶液中的离子透过率
已经有0人回复
-
攒人品 论文祈福
已经有139人回复
» 本主题相关商家推荐: (我也要在这里推广)
|

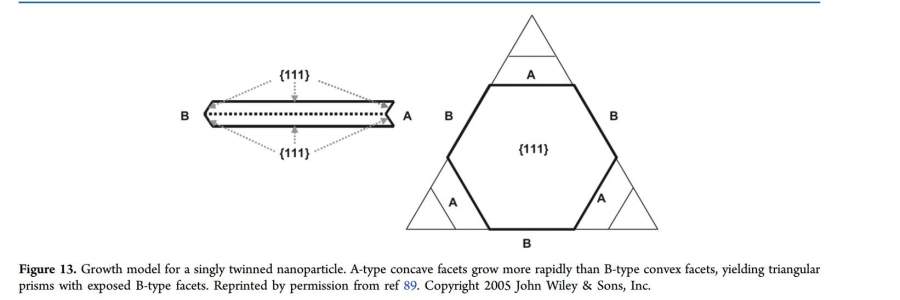

When a single twin plane is formed, the resulting nucleus, at the early stage of growth, is a hexagonal plate due to the 6-fold symmetry of fcc structures (Figure 13). Each side of the hexagon is either a concave side or a convex side because of the presence of a twin plane. When atoms diffuse toward the nucleus and adsorb to grow the NC, they can adsorb either on a concave or on a convex face. On the convex side, each atomic site has only three closest neighbors, and the stabilization energy is therefore quite low. On the other hand, on the concave side, newly adsorbed atoms are stabilized by four neighbors from several facets, increasing the stabilization energy. Atoms will then preferentially adsorb on the concave sides, favoring the growth of the NC along these sides rather than the convex sides. The growth will be favored on the facets that present a concave-type surface, while the convex-type surface does not favor adsorption of new atoms and will remain unchanged. This can also be explained by the Gibbs−Thomson formula which states that the chemical potential is inversely proportional to the curvature. Δμ γ = Ω + (1/ R1+1/ R2) where Δμ is the change in the chemical potential, γ the interfacial free energy, Ω the atomic volume, and R1 and R2 are the radii curvature.2 For a convex surface where the curvature is positive, the chemical potential change is positive and the adsorption of atoms is favored on a flat surface rather that a convex surface. On the other hand, for a concave surface where the curvature is negative, the change in the chemical is negative and the adsorption of atoms on the concave side is favored.  TIM截图20200715203155.jpg  TIM截图20200715204028.jpg |
