[求助] 关于使用setforce施加压力相关问题 已有1人参与

我使用以下命令,拉动上平板沿着x方向运动,同时给其施加一个沿着z轴负方向的力,为什么它会穿过另一个平板
units            real
dimension        3
boundary         p p p
newton           on
atom_style       atomic

lattice                       fcc 4.08
region                       box block 0 11 0 11 -10  20
create_box             4 box
region           upboundary  block 0  11    0  11  12 INF  units lattice
region           lowboundary  block 0  11    0  11  INF  -3   units lattice
region                       force block 0  11   0  11   9  12   units lattice
region                       lower block 0  11   0  11   -3  0   units lattice
region                       upper block 0  11   0  11    7  9     units lattice

create_atoms     1  region  lower
create_atoms     1  region  force
mass                         1   196.096655
group                         lower region lower
group                         upper region upper
group                         force region force

group            Rigid   union force         #拉动组
group            FREEZ   union lower
neigh_modify     every 1 delay  10  exclude group Rigid Rigid  #刚体内相互作用不考虑


pair_style       eam

pair_coeff       * *   Au_u3_real.eam

neighbor         0.2  bin    # rcutoff+0.2
neigh_modify     every 1 delay  10

timestep               2

thermo                 200

#结构优化

min_style        sd
minimize          1.0e-4  1.0e-4   10000   1000
timestep                 2

#  fix    80  all nve
velocity         upper create 300 12345 mom yes rot no
fix              10 upper nvt temp 300.0 300.0 100.0  #加温
fix              20 Rigid rigid group 1 Rigid force 1 off off on  #刚体,xy方向无力,z方向不取消力
fix              21 Rigid move linear 0.1 0.0  NULL               #右拉
fix              22 Rigid setforce 0.0 0.0 -1.0                   #下压
fix              30 FREEZ  setforce 0.0 0.0 0.0                         #固定不动下版

dump 1 all xyz 500 model1.xyz

run 10000

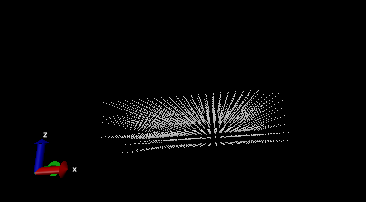

关于使用setforce施加压力相关问题

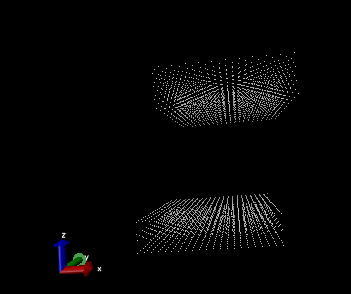

关于使用setforce施加压力相关问题-1
回复此楼

» 猜你喜欢

已阅   回复此楼   关注TA 给TA发消息 送TA红花 TA的回帖

iSimuLy

捐助贵宾 (正式写手)

资深专家顾问


【答案】应助回帖

★ ★ ★ ★ ★
感谢参与,应助指数 +1
zzhwise: 金币+5, ★★★很有帮助 2017-04-27 19:24:38
查查你的相互作用吧
如果相互作用弱,重叠很正常
2楼2017-04-27 18:03:58
