[交流] ROS-topic

重新roscore
$ roscore
run node
$ rosrun turtlesim turtlesim_node
键盘控制乌龟移动,要启动这个terminal乌龟才会动
$ rosrun turtlesim turtle_teleop_key
、

用rqt-graph查看topic
如果没安装,先安装
$ sudo apt-get install ros-<distro>-rqt
$ sudo apt-get install ros-<distro>-rqt-common-plugins

然后
In a new terminal:
$ rosrun rqt_graph rqt_graph
可以看到类似下面的


$ rostopic -h
rostopic bw     display bandwidth used by topic
rostopic echo   print messages to screen
rostopic hz     display publishing rate of topic
rostopic list   print information about active topics
rostopic pub    publish data to topic
rostopic type   print topic type

rostopic echo:
rostopic echo [topic]

$ rostopic echo /turtle1/cmd_vel
移动小乌龟,会出现下面的
angular:
  x: 0.0
  y: 0.0
  z: -2.0
---
linear:
  x: 0.0
  y: 0.0
  z: 0.0
angular:
  x: 0.0
  y: 0.0
  z: -2.0
---
linear:
  x: 0.0
  y: 0.0
  z: 0.0
angular:
  x: 0.0
  y: 0.0
  z: -2.0

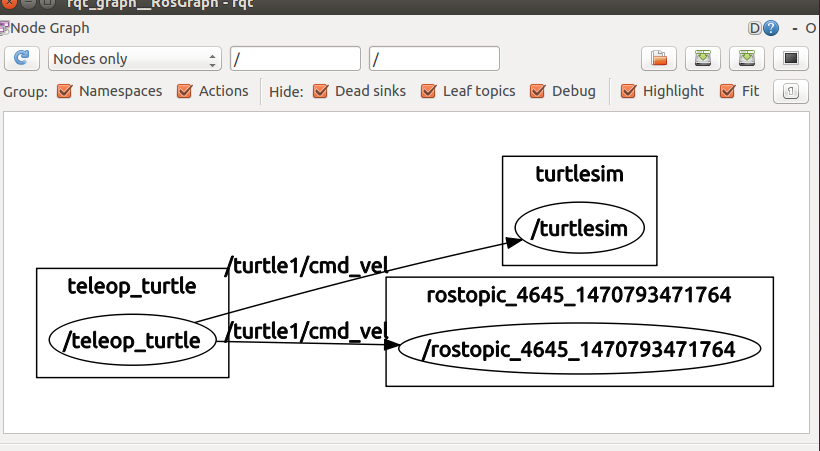

刷新graph页面,多了一个topic


$ rostopic list -h
Usage: rostopic list [/topic]

Options:
  -h, --help            show this help message and exit
  -b BAGFILE, --bag=BAGFILE
                        list topics in .bag file
  -v, --verbose         list full details about each topic
  -p                    list only publishers
  -s                    list only subscribers
For rostopic list use the verbose option:

$ rostopic list -v
This displays a verbose list of topics to publish to and subscribe to and their type.

Published topics:
* /turtle1/color_sensor [turtlesim/Color] 1 publisher
* /turtle1/command_velocity [turtlesim/Velocity] 1 publisher
* /rosout [roslib/Log] 2 publishers
* /rosout_agg [roslib/Log] 1 publisher
* /turtle1/pose [turtlesim/Pose] 1 publisher

Subscribed topics:
* /turtle1/command_velocity [turtlesim/Velocity] 1 subscriber
* /rosout [roslib/Log] 1 subscriber


4,将消息应用到主题上



I,rostopic pub [topic] [msg_type] [args]
将数据发布到当前主题上,例如小海龟例子:

$ rostopic pub -1 /turtle1/cmd_vel geometry_msgs/Twist -- '[2.0, 0.0, 0.0]' '[0.0, 0.0, 1.8]'
命令诠释:
rostopic
pub ---在给定主题上发布消息
-1
---此选项表示rostopic只发布一个消息,然后退出
/turtle1/cmd_vel
---给定的主题名
geometry_msgs/Twist
---在给定主题上发布的消息类型
--
---双负号,表示词法选择器在此后的参数都不可用。这种情况发生在错误参数比如负数
'[2.0, 0.0, 0.0]' '[0.0, 0.0, 1.8]' --- In this case, '[2.0, 0.0, 0.0]' becomes the linear value with x=2.0, y=0.0, and z=0.0, and '[0.0, 0.0, 1.8]' is the angular value with x=0.0, y=0.0, and z=1.8.
让小乌龟一直移动,加一个-r 1,让其保持1hz频率
$ rostopic pub /turtle1/cmd_vel geometry_msgs/Twist -r 1 -- '[2.0, 0.0, 0.0]' '[0.0, 0.0, -1.8]'

获得当前的速率
rostopic hz [topic]
Let's see how fast the turtlesim_node is publishing /turtle1/pose:

$ rostopic hz /turtle1/pose

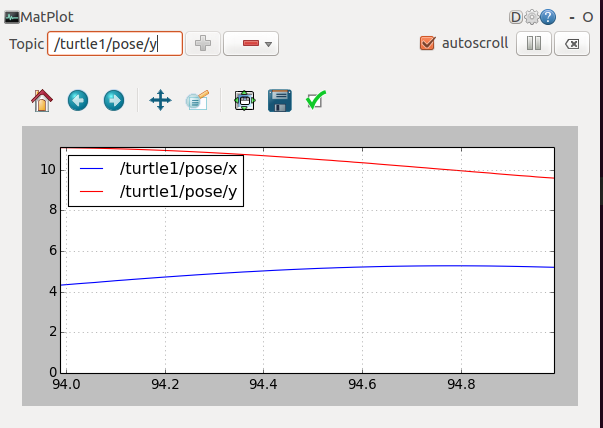

plot显示
$ rosrun rqt_plot rqt_plot

ROS-topic


ROS-topic-1
