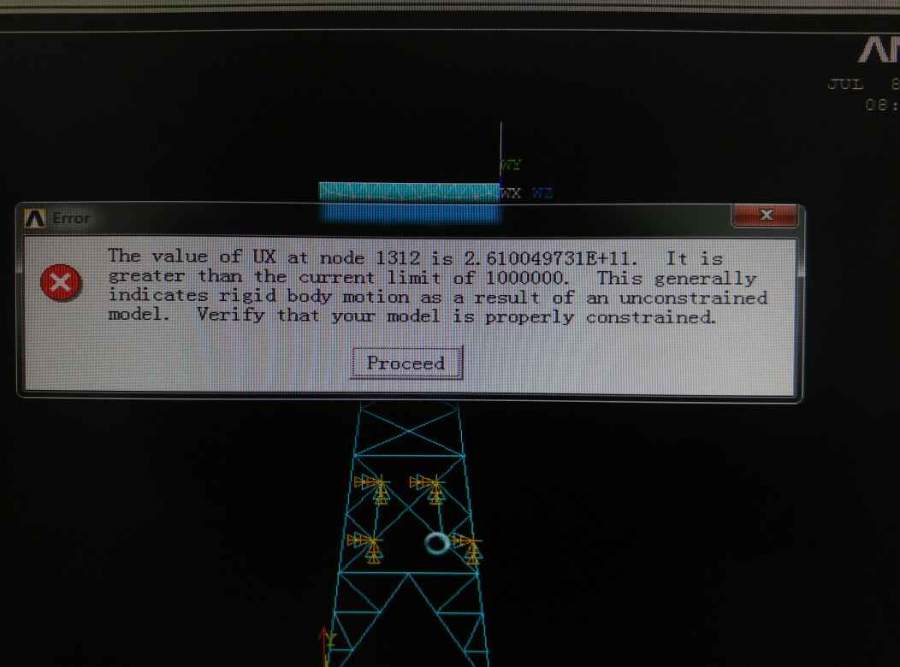

[求助] 这个ansys命令流为什么求解不出结果啊已有1人参与

FINISH
/CLEAR
/COM,ANSYS RELEASE 12.0.1  UP20090415    11:37:18 07/05/2016
/input,start120,ans,'F:\Program Files\ANSYS Inc\v120\ANSYS\apdl\',,,,,,,,,,,,,,,,1
/PREP7
ET,1,BEAM188
MP,EX,1,1.0E10
MP,PRXY,1,0.31
MP,DENS,1,1490
R,1,0.00193
ET,2,BEAM188
MP,EX,2,1.0E10
MP,PRXY,2,0.31
MP,DENS,2,1490
R,2,0.00039
ET,3,BEAM188
MP,EX,3,1.0E10
MP,PRXY,3,0.31
MP,DENS,3,1490
R,3,0.000236
ET,4,BEAM188
MP,EX,4,1.0E10
MP,PRXY,4,0.31
MP,DENS,4,1490
R,4,0.00139
ET,5,BEAM188
MP,EX,5,1.0E10
MP,PRXY,5,0.31
MP,DENS,5,1490
R,5,0.000349
ET,6,BEAM188
MP,EX,6,1.0E10
MP,PRXY,6,0.31
MP,DENS,6,1490
R,6,0.000614
ET,7,BEAM188
MP,EX,7,1.0E10
MP,PRXY,7,0.31
MP,DENS,7,1490
R,7,0.00109
ET,8,SHELL63
MP,EX,8,1.0E10
MP,PRXY,8,0.31
MP,DENS,8,1490
R,8,0.4
ET,9,COMBIN14
SECTYPE,1,BEAM,L,,0
SECOFFSET,CENT                            SECDATA,0.1,0.1,0.01,0.01,0,0,0,0,0,0
SECTYPE,2,BEAM,L,,0
SECOFFSET,CENT
SECDATA,0.05,0.05,0.004,0.004,0,0,0,0,0,0
SECTYPE,3,BEAM,L,,0
SECOFFSET,CENT
SECDATA,0.04,0.04,0.003,0.003,0,0,0,0,0,0
SECTYPE,4,BEAM,L,,0
SECOFFSET,CENT
SECDATA,0.09,0.09,0.008,0.008,0,0,0,0,0,0
SECTYPE,5,BEAM,L,,0
SECOFFSET,CENT
SECDATA,0.045,0.045,0.004,0.004,0,0,0,0,0,0
SECTYPE,6,BEAM,L,,0
SECOFFSET,CENT
SECDATA,0.03,0.03,0.005,0.005,0,0,0,0,0,0
SECTYPE,7,BEAM,L,,0
SECOFFSET,CENT
SECDATA,0.08,0.08,0.007,0.007,0,0,0,0,0,0
K,101,0,0,0
K,201,3.730,0,0
K,301,0,0,3.730
K,401,3.730,0,3.730
K,104,1.265,12.000,1.265
K,204,2.465,12.000,1.265
K,304,1.265,12.000,2.465
K,404,2.465,12.000,2.465
K,523,1.86,4.67,0.492
K,623,3.24,4.67,1.86
K,723,0.492,4.67,1.86
K,823,1.86,4.67,3.24
KFILL,101,104,1,103,1,1
KFILL,201,204,1,203,1,1
KFILL,301,304,1,303,1,1
KFILL,401,404,1,403,1,1
KFILL,101,103,1,102,1,1
KFILL,201,203,1,202,1,1
KFILL,301,303,1,302,1,1
KFILL,401,403,1,402,1,1
KFILL,101,102,2,111,1,1
KFILL,201,202,2,211,1,1
KFILL,301,302,2,311,1,1
KFILL,401,402,2,411,1,1
KFILL,102,202,1,501,1,1
KFILL,202,402,1,601,1,1
KFILL,302,402,1,801,1,1
KFILL,102,302,1,701,1,1
KFILL,101,501,2,512,1,1
KFILL,201,501,2,514,1,1
KFILL,201,601,2,612,1,1
KFILL,401,601,2,614,1,1
KFILL,401,801,2,812,1,1
KFILL,301,801,2,814,1,1
KFILL,301,701,2,712,1,1
KFILL,101,701,2,714,1,1
KFILL,102,523,1,522,1,1
KFILL,202,523,1,525,1,1
KFILL,203,523,1,524,1,1
KFILL,103,523,1,526,1,1
KFILL,202,623,1,622,1,1
KFILL,402,623,1,625,1,1
KFILL,403,623,1,624,1,1
KFILL,203,623,1,626,1,1
KFILL,402,823,1,822,1,1
KFILL,302,823,1,825,1,1
KFILL,303,823,1,824,1,1
KFILL,403,823,1,826,1,1
KFILL,302,723,1,722,1,1
KFILL,102,723,1,725,1,1
KFILL,103,723,1,724,1,1
KFILL,303,723,1,726,1,1
KFILL,103,104,4,131,1,1
KFILL,203,204,4,231,1,1
KFILL,303,304,4,331,1,1
KFILL,403,404,4,431,1,1
KFILL,102,103,1,121,1,1
KFILL,202,203,1,221,1,1
KFILL,302,303,1,321,1,1
KFILL,402,403,1,421,1,1
TYPE,1
REAL,1
MAT,1
SECNUM,1
*DO,I,1,4,1
L,100*I+1,100*I+3
*ENDDO
TYPE,4
REAL,4
MAT,4
SECNUM,4
*DO,I,1,4,1
L,100*I+3,100*I+4
*ENDDO
TYPE,2
REAL,2
MAT,2
SECNUM,2
*DO,I,1,4,1
L,100*I+1,100*I+401
*ENDDO
L,201,501
L,101,701
L,301,801
L,401,601
*DO,I,1,3,2
L,100*I+2,100*I+102
L,100*I+3,100*I+103
*ENDDO
*DO,I,1,2,1
L,100*I+2,100*I+202
L,100*I+3,100*I+203
*ENDDO
L,102,203
L,202,103
L,202,403
L,402,203
L,402,303
L,302,403
L,302,103
L,102,303
TYPE,3
REAL,3
MAT,3
SECNUM,3
*DO,I,1,2,1
L,110+I,511+I
L,210+I,513+I
L,210+I,611+I
L,410+I,613+I
L,310+I,711+I
L,110+I,713+I
L,410+I,811+I
L,310+I,813+I
*ENDDO
*DO,I,1,2,1
L,92+10*I,514-I
L,192+10*I,516-I
L,392+10*I,616-I
L,192+10*I,614-I
L,392+10*I,814-I
L,292+10*I,816-I
L,292+10*I,816-I
L,292+10*I,714-I
L,92+10*I,716-I
*ENDDO
*DO,I,1,4,1
L,100*I+21,100*I+422
*ENDDO
*DO,I,1,4,1
L,100*I+21,100*I+426
*ENDDO
*DO,I,1,4,1
L,100*I+422,100*I+426
L,100*I+424,100*I+425
*ENDDO
L,221,524
L,221,525
L,421,624
L,421,625
L,321,824
L,321,824
L,321,825
L,121,724
L,121,725
TYPE,5
REAL,5
MAT,5
SECNUM,5
*DO,I,1,3,1
L,130+I,231+I
L,230+I,131+I
L,230+I,431+I
L,430+I,231+I
L,430+I,331+I
L,330+I,431+I
L,330+I,131+I
L,130+I,331+I
*ENDDO
L,103,231
L,134,204
L,203,131
L,234,104
L,203,431
L,234,404
L,403,231
L,434,204
L,403,331
L,434,304
L,303,431
L,334,404
L,303,131
L,334,104
L,103,331
L,134,304
K,1000,-0.135,12.000,0.865
K,1001,3.865,12.000,0.865
K,1002,3.865,12.000,2.865
K,1003,-0.135,12.000,2.865
K,1004,-0.135,13.000,0.865
K,1005,3.865,13.000,0.865
K,1006,3.865,13.000,2.865
K,1007,-0.135,13.000,2.865
V,1000,1001,1002,1003,1004,1005,1006,1007,1008
WPOFFS,1.265,12.500,1.265
WPOFFS,2.6,0,0.6
WPROTA,,,90
CYL4,,,2
MSHAPE,1,3D
MSHKEY,0
!*
CM,_Y,VOLU
VSEL, , , ,    1
CM,_Y1,VOLU
CHKMSH,'VOLU'
CMSEL,S,_Y
!*
VMESH,_Y1
!*
CMDELE,_Y
CMDELE,_Y1
CMDELE,_Y2
!*
!*
/NOPR
/PMETH,OFF,0
KEYW,PR_SET,1
KEYW,PR_STRUC,1
KEYW,PR_THERM,0
KEYW,PR_FLUID,0
KEYW,PR_ELMAG,0
KEYW,MAGNOD,0
KEYW,MAGEDG,0
KEYW,MAGHFE,0
KEYW,MAGELC,0
KEYW,PR_MULTI,0
KEYW,PR_CFD,0
/GO
!*
/COM,
/COM,Preferences for GUI filtering have been set to display:
/COM,  Structural
!*
!*
ETDEL,9
!*
ETDEL,8
!*
ETDEL,7
!*
ETDEL,6
!*
ETDEL,5
!*
ETDEL,4
!*
ETDEL,3
!*
ETDEL,1
ETDEL,2
ET,1,LINK8
ET,2,SOLID65
ET,3,SHELL63
CM,_Y,VOLU
VSEL, , , ,    1
CM,_Y1,VOLU
CHKMSH,'VOLU'
CMSEL,S,_Y
VMESH,_Y1
!*
CMDELE,_Y
CMDELE,_Y1
CMDELE,_Y2
APLOT
CM,_Y,AREA
ASEL, , , ,    7
CM,_Y1,AREA
CMSEL,S,_Y
!*
CMSEL,S,_Y1
AATT,    2,    3, 3,    0, 2
CMSEL,S,_Y
CMDELE,_Y
CMDELE,_Y1
!*
CM,_Y,VOLU
VSEL, , , ,    1
CM,_Y1,VOLU
CHKMSH,'VOLU'
CMSEL,S,_Y
!*
EPLOT
APLOT
FLST,2,4,5,ORDE,3
FITEM,2,1
FITEM,2,-3
FITEM,2,7
FLST,2,1,5,ORDE,1
FITEM,2,7
AESIZE,P51X,0.2,
CM,_Y,VOLU
VSEL, , , ,    1
CM,_Y1,VOLU
CHKMSH,'VOLU'
CMSEL,S,_Y
!*
!*
VCLEAR,_Y1
VMESH,_Y1
!*
CMDELE,_Y
CMDELE,_Y1
CMDELE,_Y2
!*
FLST,2,1,5,ORDE,1
FITEM,2,5
AESIZE,P51X
!*
APLOT
FLST,2,7,5,ORDE,2
FITEM,2,1
FITEM,2,-7
AESIZE,P51X
TYPE, 3
MAT,    5
REAL,    5
ESYS,    0
SECNUM, 5
!*
/UI,MESH,OFF
APLOT
CM,_Y,AREA
ASEL, , , ,    7
CM,_Y1,AREA
CHKMSH,'AREA'
CMSEL,S,_Y
MSHKEY,1
AMESH,_Y1
MSHKEY,0
CMDELE,_Y
CMDELE,_Y1
CMDELE,_Y2
CM,_Y,VOLU
VSEL, , , ,    1
CM,_Y1,VOLU
CHKMSH,'VOLU'
CMSEL,S,_Y
LATT,1,1,1
LESIZE,ALL,,,8,,1,,,1,
LMESH,ALL
/GRAPHICS,POWER
/TYPE,1,6
/CPLANE,0
/SHADE,1,1
/HBC,1,0
/REPLOT
/SHRINK,0
/ESHAPE,1.0
/EFACET,1
/RATIO,1,1,1
/CFORMAT,32,0
NUMMRG,ALL
DK,101,ALL
DK,201,ALL
DK,301,ALL
DK,401,ALL
DK,825,ALL
DK,622,ALL
DK,826,ALL
DK,526,ALL
FINISH
/SOLU
VSEL,ALL
ACEL,,9.8
SOLVE
FINISH
/POST1
PLNSOL,U,Y,0,1
PLNSOL,U,X,0,1
