[求助] CFX动网格（使用CFX调用WB进行remeshing）已有1人参与

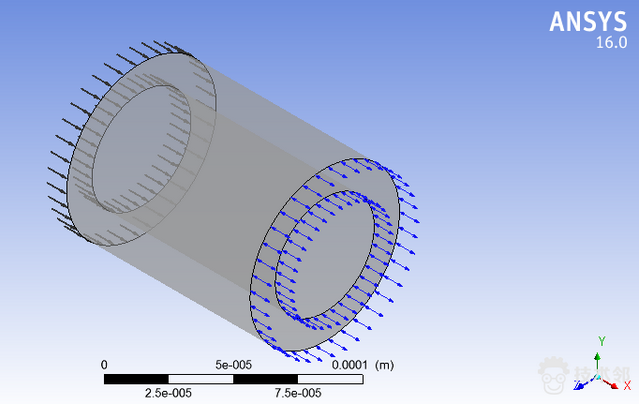

本人采用CFX的user define动网格的方式计算一个管的流场域，内管壁采用rigid body，并以120[rev/min]旋转。模型如图1所示。

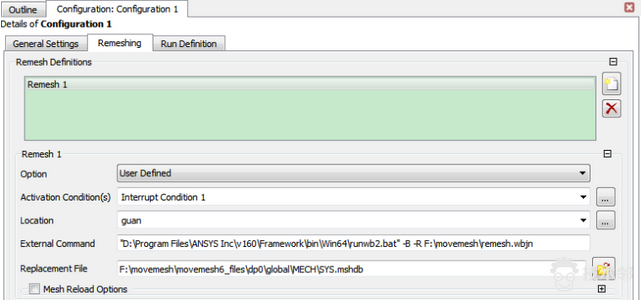

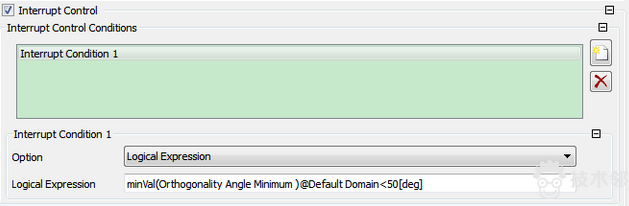

参照网上各位大神传授的CFX动网格方法，我进行了如图2和图3的设置：

但是结算到开始remeshing的时候，就出错了，错误信息如下所示:
+--------------------------------------------------------------------+
|                                                                   |
|                            Remeshing                            |
|                                                                   |
+--------------------------------------------------------------------+

Remesh Object: Remesh 1
Activated by condition: Interrupt Condition 1

Executing remesh command:
   "D:\Program Files\ANSYS
   Inc\v160\Framework\bin\Win64\runwb2.bat" -B -R
   F:\movemesh\remesh.wbjn

CFX Solver Results generated before remeshing have been written to:
F:\movemesh\Unnamed_001\56_oldmesh.res

Text output generated during remeshing has been written to:
F:\movemesh\Unnamed_001\56_remesh.out

+--------------------------------------------------------------------+
|             An error has occurred in cfx5solve:                |
|                                                                   |
| ANSYS CFX Solver Input File does not exist                      |
+--------------------------------------------------------------------+

+--------------------------------------------------------------------+
| The following user files have been saved in the directory       |
| F:\movemesh\Unnamed_001:                                        |
|                                                                   |
| cfxpre_engine_error.log, 56_remesh.out, 56_oldmesh.res          |
+--------------------------------------------------------------------+

This run of the ANSYS CFX Solver has finished.

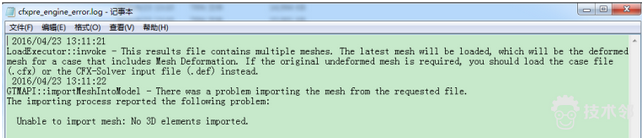

还有一个错误文件,如图4

我更改过单位什么的，但是还是提示ANSYS CFX Solver Input File does not exist ，运行完脚本remesh。wbjn文件后，F:\movemesh\movemesh6_files\dp0\global\MECH\SYS.mshdb文件是存在的。不知道为什么说不能导入mesh以及ANSYS CFX Solver Input File does not exist。
这个问题纠结我快一个月了，急需解决，前来请教各位老师，非常感谢，非常感谢，非常感谢！
