ansys时程分析遇到问题，急，在线等，求大神指点。。。
|
|

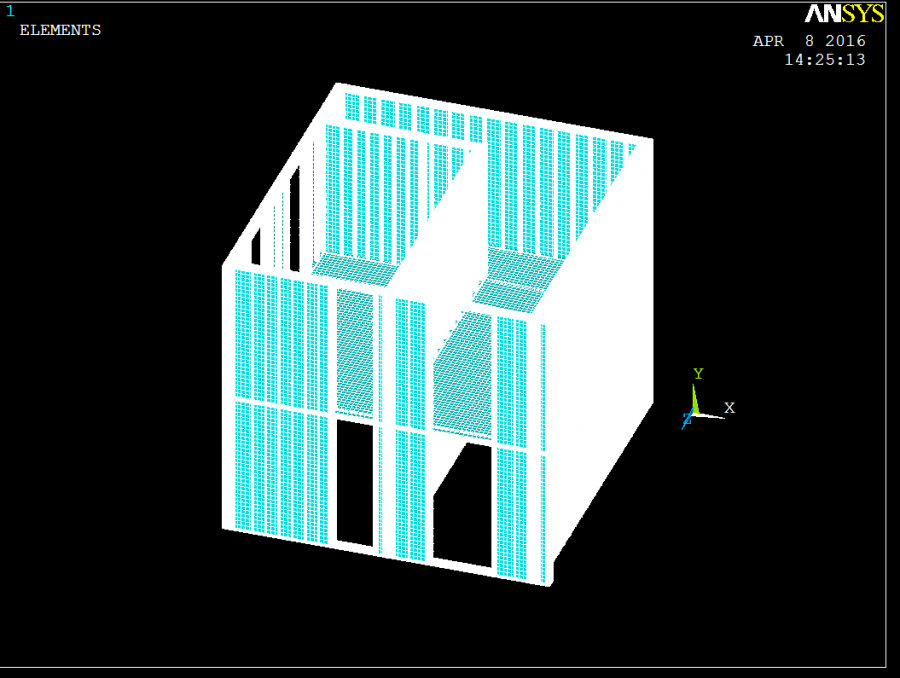

/prep7 resume,dizhen,db nSEL,S,LOC,Y,0 D, all,all /solu antype,modal modopt,lanb,20,0,0,,off mxpand,20,,,yes outpr,basic,all outres,all,all allsel,all solve finish /post1 set,list set,1,1 pldisp,0 set,1,2 pldisp,0 set,1,3 pldisp,0 set,1,4 pldisp,0 fini /config,statu /solu allsel antype,trans dampratio=0.05 pi=3.14159 freq1=2.24*pi freq2=2.54*2*pi alphad,2*dampratio*freq1*freq2/(freq1+freq2) trnopt,full timint,off nlgeom,on time,1e-8 nsubst,2 kbc,1 acel,0,-9.8 solve timint,on nt=1000 dt=0.01 *dim,ac,,nt /input,tianjin,txt nsubst,10,0,0 outpr,all,none outres,all,none outres,nsol,all *do,i,1,nt acel,0,ac(i),0 time,i*dt solve *enddo finish /post26 nsol,2,69,u,x plvar,3,,,,,,,,,, 几何模型如图，求指定点的位移时程曲线。求助大神，跪拜！  捕获.PNG@wuming524 |
