[求助]

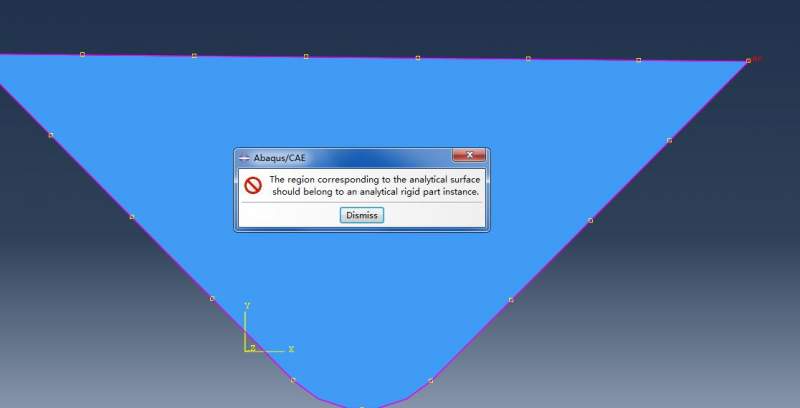

ABAQUS刚体不能创建———提示分析表面应属于分析刚体部件实例，求指导~~
|
|

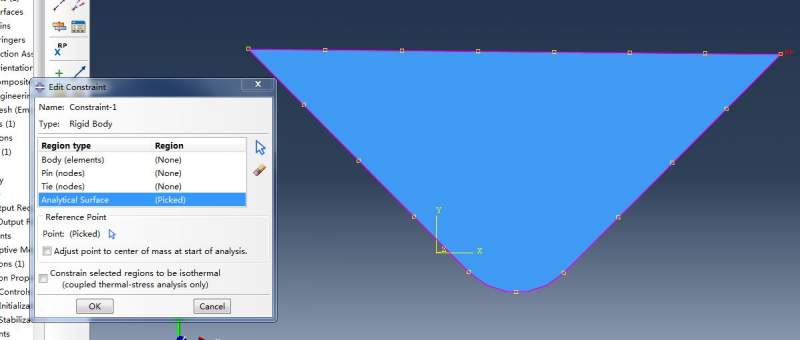

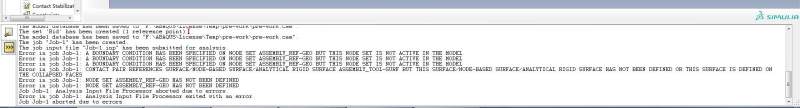

以工件右上角作为参考点，在创建刚体时选中参考点，结果提示出错 然后就没创建刚体，直接进行数据检查，还是出错了，哎，我是照着例题一步步做的，咋就出错了，求助     The job "Job-1" has been created. The job input file "Job-1.inp" has been submitted for analysis. Error in job Job-1: A BOUNDARY CONDITION HAS BEEN SPECIFIED ON NODE SET ASSEMBLY_REF-GEO BUT THIS NODE SET IS NOT ACTIVE IN THE MODEL Error in job Job-1: A BOUNDARY CONDITION HAS BEEN SPECIFIED ON NODE SET ASSEMBLY_REF-GEO BUT THIS NODE SET IS NOT ACTIVE IN THE MODEL Error in job Job-1: A BOUNDARY CONDITION HAS BEEN SPECIFIED ON NODE SET ASSEMBLY_REF-GEO BUT THIS NODE SET IS NOT ACTIVE IN THE MODEL Error in job Job-1: CONTACT PAIR REFERENCES SURFACE/NODE-BASED SURFACE/ANALYTICAL RIGID SURFACE ASSEMBLY_TOOL-SURF BUT THIS SURFACE/NODE-BASED SURFACE/ANALYTICAL RIGID SURFACE HAS NOT BEEN DEFINED OR THIS SURFACE IS DEFINED ON THE COLLAPSED FACES Error in job Job-1: NODE SET ASSEMBLY_REF-GEO HAS NOT BEEN DEFINED Error in job Job-1: NODE SET ASSEMBLY_REF-GEO HAS NOT BEEN DEFINED Job Job-1: Analysis Input File Processor aborted due to errors. Error in job Job-1: Analysis Input File Processor exited with an error. Job Job-1 aborted due to errors. |
